Bosch GOF 900

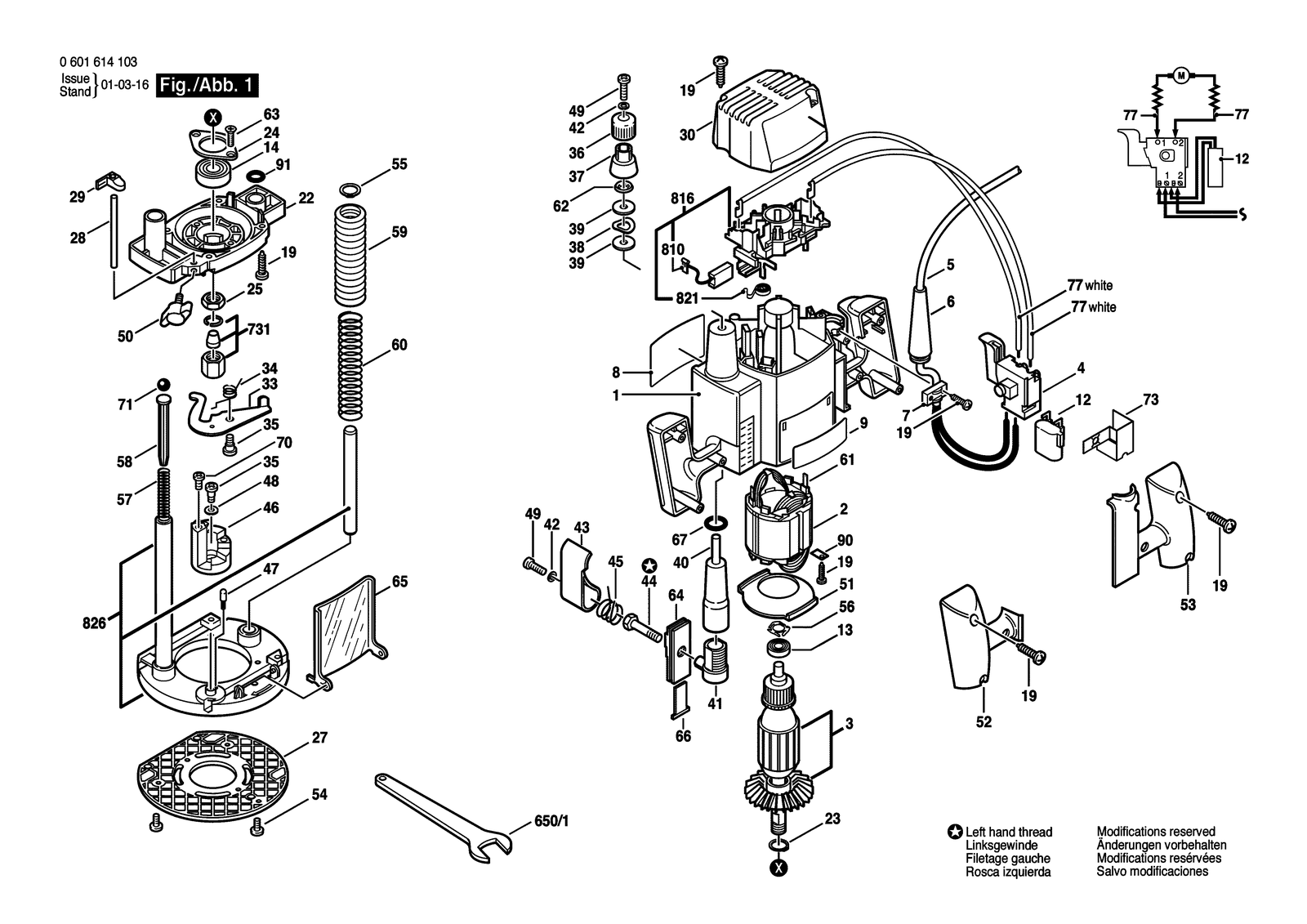

Bosch GOF 900 industrial router: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOF 900: 74 positions on 1 sheet
Bosch GOF 900 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108580 | Motor Housing Blue |
| 12 | 1617328025 | Suppression Filter |
| 13 | 2610913173 | Ball Bearing |
| 14 | 3600905510 | Ball Bearing |
| 19 | 2610910566 | Tapping Screw |
| 2 | 1604220362 | Field 240V |
| 22 | 2610997103 | Housing |
| 23 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 24 | 3600034505 | Retaining Plate |
| 25 | 3603300501 | Hex Nut M15 |
| 27 | 2610997099 | Cover Plate |
| 28 | 2610997093 | Rod |
| 29 | 2610997094 | Pointer |
| 3 | 3604010501 | Armature 230-240V |
| 30 | 3605500593 | Housing Cover |
| 33 | 3601021509 | Swing-Plate |
| 34 | 3604651502 | Torsion Spring |
| 35 | 3603415556 | Shoulder Screw M4 |
| 36 | 3603231539 | Knob |
| 37 | 3600209500 | Indicator Ring |
| 38 | 3600100528 | Spring Washer |
| 39 | 3600100527 | Washer |
| 4 | 2607200251 | Switch |
| 40 | 3600360507 | Adjusting Sleeve |
| 41 | 3600400507 | Locking Piece |
| 42 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 43 | 3602000510 | Locking Lever |
| 44 | 3603450503 | Lock Bolt |
| 45 | 3604651503 | Lock Spring |
| 46 | 2610997191 | Depth-Gauge |
| 46 | 3600232503 | Depth-Gauge |
| 47 | 2600590006 | Ratchet Cap |
| 48 | 3916060500 | Spring Washer |
| 49 | 2910641122 | Oval-Head Screw DIN 7985-M4X12-4.8-H |
| 5 | 2610993632 | Power supply cord GB 4,25M 2 X 1,5MM H05RR-F |
| 5 | 3604460557 | Power supply cord EU 4,25M 2 X 1,0MM H07 Rn-F |
| 50 | 1613480009 | Wing Screw M6X25 MM |
| 51 | 3600590507 | Air-Deflector Ring |
| 52 | 3605133526 | Handle Cover Lt |
| 53 | 3605133528 | Handle Cover Rt |
| 54 | 2610915161 | Screw |
| 55 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 56 | 2610992432 | Spring Washer |
| 57 | 3604613508 | Compression Spring |
| 58 | 3603120502 | Guide Piece |
| 59 | 2610990698 | Bellows |
| 6 | 3600703509 | Grommet Ø7,4 MM |
| 60 | 2610997100 | Compression Spring |
| 61 | 1604477005 | Blade terminal |
| 62 | 3604680502 | Retaining snap ring |
| 63 | 2910871122 | Countersunk-Head Screw DIN 965-M4X12-8.8 |
| 64 | 3601010519 | Insert |
| 65 | 2610912599 | Chip Deflector |
| 650/1 | 1907950511 | Single-Head Eng. Wrench SW19 |
| 66 | 3601010517 | Insulator |
| 67 | 3600210507 | O-Ring |
| 7 | 2601035001 | Cable Clip |
| 70 | 3603410504 | Socket head cap screw |
| 71 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 73 | 2610996090 | Set ring |
| 731 | 2608570100 | Collet 6 MM |
| 731 | 2608570101 | Collet 1/4" |
| 731 | 2608570102 | Collet 8 MM |
| 77 | 3604445718 | Connecting Cable |
| 8 | 2610907696 | Manufacturer's nameplate |
| 8 | 2610907711 | Nameplate |
| 8 | 2610913461 | Manufacturer's nameplate |
| 810 | 3604321513 | Carbon-Brush Set |
| 816 | 3604336510 | Brush Holder |
| 821 | 3604652501 | Spring |
| 826 | 2610997116 | Base |
| 9 | 2610998944 | Reference Plate |
| 90 | 1601030022 | Tab Washer |
| 91 | 1610210233 | O-Ring 12,0X2,0 MM |
