Bosch GOF 1600

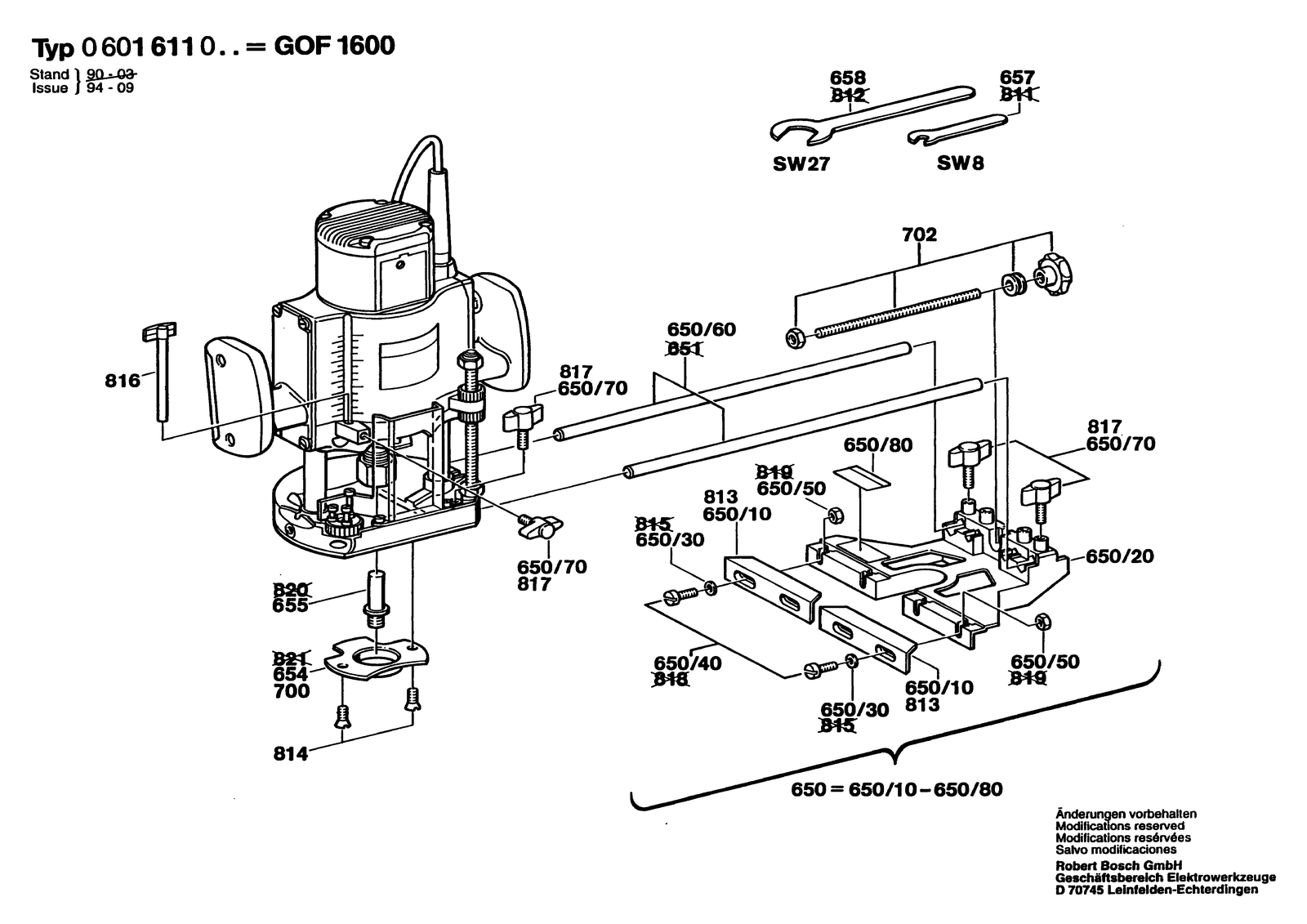

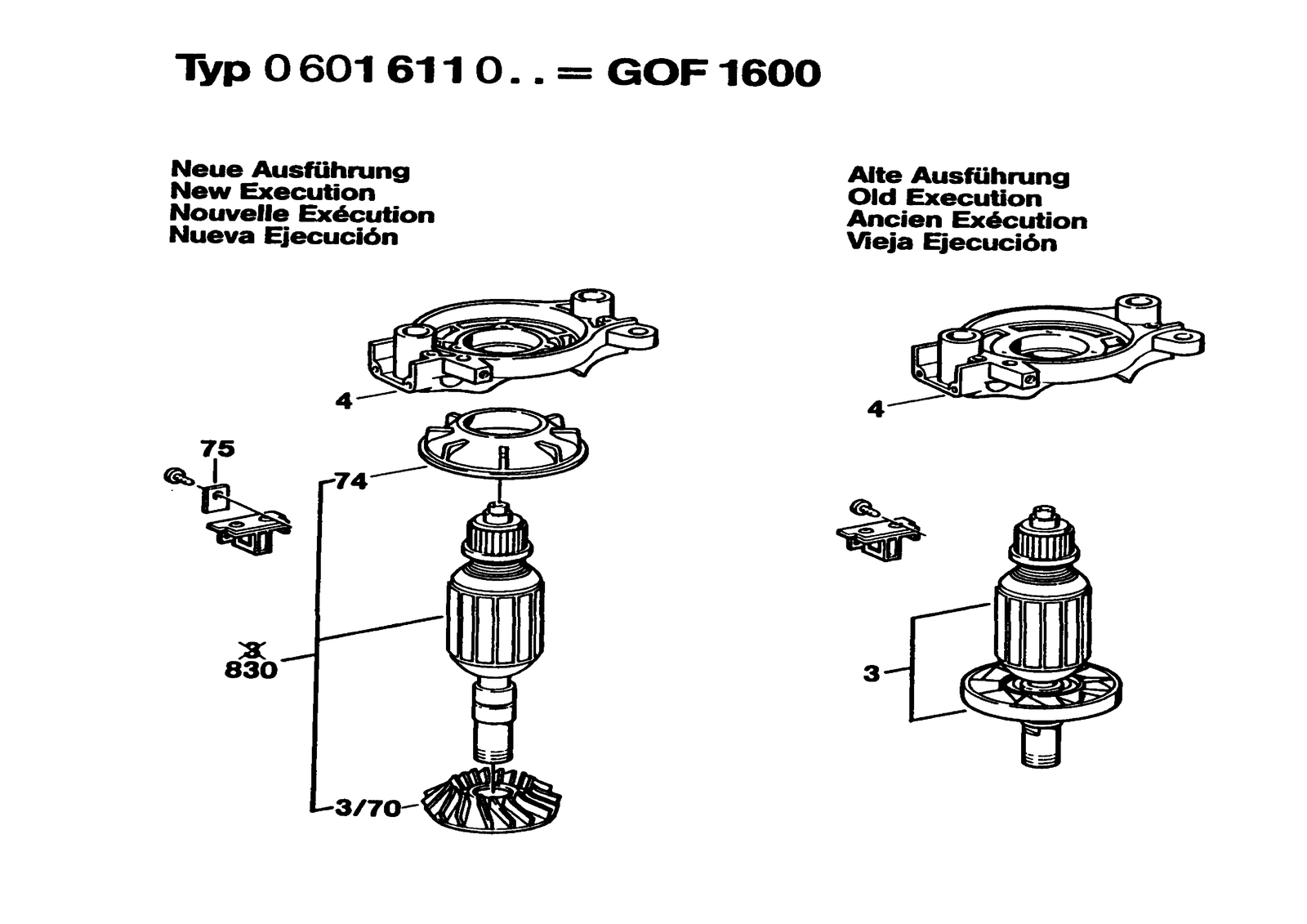

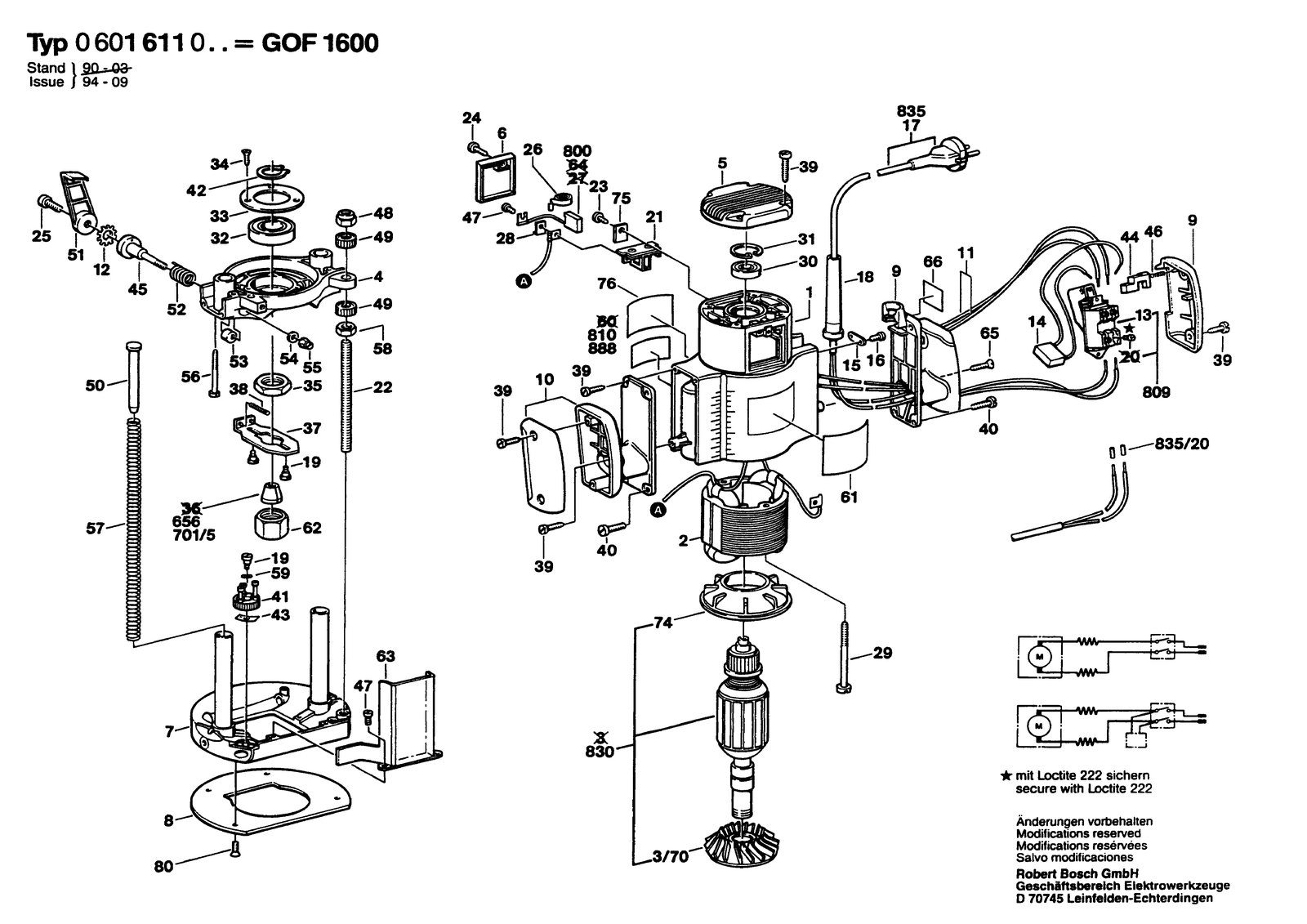

Bosch GOF 1600 industrial router: exploded parts diagram, 3 sheets, 114 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOF 1600: 114 positions on 3 sheets
Bosch GOF 1600 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108589 | Housing Blue |
| 10 | 3605133520 | Handle Blue |
| 11 | 3604441502 | Cable |
| 12 | 3600190516 | Toothed lock washer |
| 13 | 3607200510 | Switch |
| 14 | 1607328034 | Suppression Filter |
| 15 | 3601032500 | Fastening Clamp |
| 16 | 2910611011 | Tapping Screw DIN 7981-ST3,5X13-C-H |
| 17 | 1604460099 | Power supply cord |
| 17 | 3604460541 | Pvc-Insulated Cable CH 4,25M 2 X 1,0MM H07 Rn-F |
| 17 | 3604460542 | Power supply cord AUS 4,25M 2 X 1,0MM Pvc |
| 17 | 3604460549 | Power supply cord |
| 17 | 3604460564 | Power supply cord |
| 17 | 3604460583 | Power supply cord USA 5M 2 X 1,25MM Pvc |
| 17 | 3604460608 | Power supply cord 4,25M 2 X 1,5MM H05RN-F |
| 17 | 3604460609 | Power supply cord |
| 18 | 3600707503 | Grommet Ø 9,4 MM |
| 19 | 3603415556 | Shoulder Screw M4 |
| 2 | 3604220530 | Field 115V |
| 2 | 3604220531 | Field 220V |
| 2 | 3604220534 | Field 240V |
| 2 | 3604220535 | Field 100-110V |
| 21 | 1604336008 | Brush Holder |
| 22 | 3603500500 | Set screw |
| 23 | 2910611018 | Tapping Screw DIN 7981-ST3,9X13-C-H |
| 24 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 25 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 26 | 1614652001 | Spiral Spring |
| 28 | 1611331007 | Tab Washer |
| 29 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 30 | 1900905276 | Groove ball bearing 6200-2 Rs/c 3 |
| 31 | 3600119507 | Spring retaining ring |
| 32 | 3600900526 | Groove ball bearing |
| 33 | 3600034503 | Fixing plate |
| 34 | 3603415559 | Rec ct-sunk tapping screw |
| 35 | 3603301522 | Hex Nut |
| 36 | 3600499520 | Collet Ø 1/2" |
| 37 | 3601961500 | Retaining Bracket |
| 38 | 3604613502 | Compression Spring |
| 39 | 2910611034 | Tapping Screw DIN 7982-ST4,8X19 |
| 4 | 3605702592 | Fan Housing |
| 40 | 3603415540 | Screw 4X13 MM |
| 41 | 3600232503 | Depth-Gauge |
| 42 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 43 | 3601254501 | Leaf Spring |
| 44 | 3602033500 | Locking Lever |
| 44 | 3602033501 | Locking Lever |
| 45 | 3603053503 | Axle |
| 46 | 3604613503 | Compression Spring |
| 47 | 2910951118 | Oval-Head Screw DIN 7985-M4X8-8.8-H |
| 48 | 2915065007 | Hex Nut DIN 985-M10-10 |
| 49 | 2603345015 | Adjusting Nut |
| 5 | 3605500575 | Housing Cover |
| 50 | 3603120501 | Guide Piece |
| 51 | 3602000509 | Adjusting lever |
| 52 | 3604651501 | Clamping Spring |
| 53 | 3602202500 | Adjusting Eccentric |
| 54 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 55 | 2915061002 | Hex Nut DIN 985-M4-8 |
| 56 | 3603415560 | Screw B 4,8X45 MM |
| 57 | 3604619502 | Compression Spring |
| 58 | 2915055108 | Hex Nut DIN 439-BM10-04 |
| 59 | 3916060500 | Spring Washer |
| 6 | 3605500596 | Sealing cap |
| 61 | 3601119652 | Manufacturer's nameplate |
| 61 | 3601119653 | Manufacturer's nameplate |
| 61 | 3601119657 | Manufacturer's nameplate |
| 62 | 3603313507 | Union Nut SW27 |
| 63 | 3605510526 | Protective Shield |
| 65 | 2910601433 | Tapping Screw DIN 7982-ST4,8X18-F-H |
| 650/10 | 3602386501 | Guide Plate |
| 650/20 | 2610996063 | Rim |
| 650/20 | 3605702553 | Parallel-Guide |
| 650/20 | 3607000507 | Parts Set |
| 650/30 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 650/40 | 2910021154 | Socket head cap screw DIN 84-AM5X12-8.8 |
| 650/50 | 2915011006 | Hex Nut DIN 934-M 5-M-8 |
| 650/60 | 3603001518 | Guide Rod 10 MM |
| 650/70 | 2603480003 | Wing Screw M 6X16 MM |
| 650/80 | 3601119612 | Manufacturer's nameplate |
| 654 | 3605703528 | Tool Guide Ø 30 MM |
| 655 | 3603523501 | Threaded Insert M 12X1 MM |
| 656 | 3600499520 | Collet Ø 1/2" |
| 656 | 3608570505 | Collet Ø 12 MM |
| 657 | 2607950504 | Single-Head Eng. Wrench |
| 658 | 1907950514 | Single-Head Eng. Wrench DIN 894 SW27 |
| 66 | 1601110449 | Nameplate Caution |
| 7 | 3605702595 | Base |
| 700 | 3605703527 | Tool Guide Ø 27 MM |
| 700 | 3605703529 | Tool Guide Ø 40 MM |
| 701/5 | 3600499502 | Collet 1/4" 3/8" |
| 701/5 | 3600499503 | Collet 1/4" |
| 701/5 | 3608570500 | Collet Ø 6 MM |
| 701/5 | 3608570502 | Collet Ø 8 MM |
| 701/5 | 3608570504 | Collet Ø 10 MM |
| 74 | 3600590504 | Air-Deflector Ring |
| 75 | 1601030022 | Tab Washer |
| 8 | 3600190515 | Intermediate Plate |
| 80 | 2914411045 | Thread-forming tap. Screw DIN 7500-CM 4X8-ST |
| 800 | 1607014103 | Carbon-Brush Set |
| 809 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 810 | 3601119779 | Nameplate |
| 813 | 3605700511 | Intermediate Plate |
| 814 | 3603415553 | Countersunk-Head Screw |
| 816 | 3603029500 | Floating indicator |
| 817 | 1603480018 | Wing Screw M6 |
| 830 | 3604011592 | Armature 115V |
| 830 | 3604011593 | Armature 220V |
| 830 | 3604011594 | Armature 240V |
| 830 | 3604011595 | Armature 100V |
| 830 | 3604011598 | Armature 110V |
| 835 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 888 | 160111A3H3 | Nameplate |
| 9 | 3605133519 | Handle Blue |
