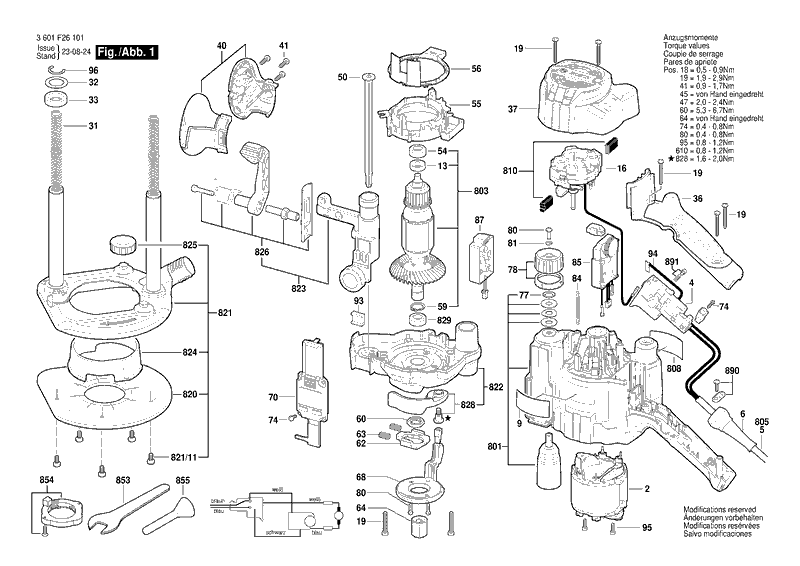

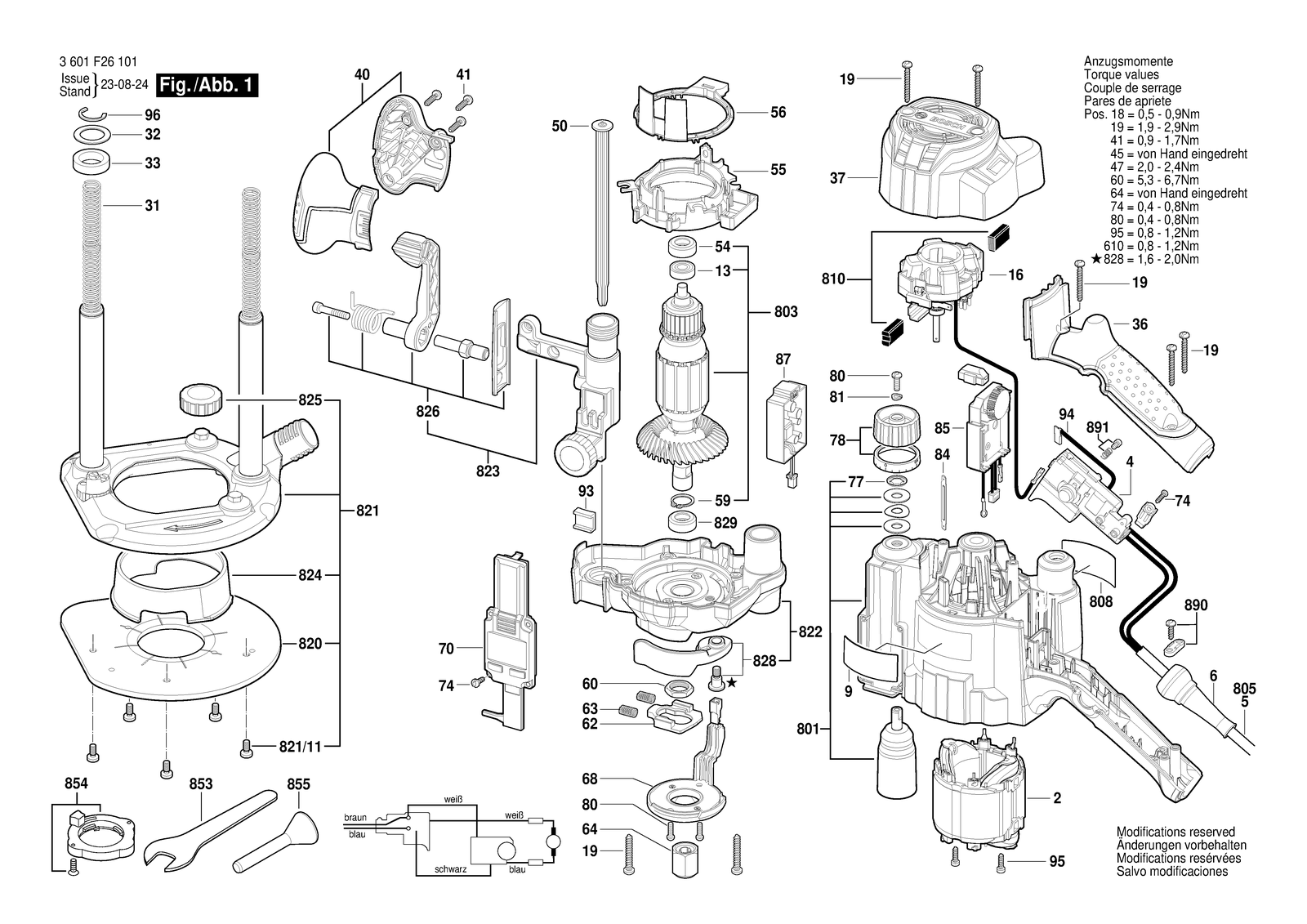

Bosch GOF 1250 CE router: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOF 1250 CE: 67 positions on 1 sheet
Bosch GOF 1250 CE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905086 | Groove ball bearing 7X19X6 |
| 16 | 2604337124 | Brush Plate |
| 19 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 2 | 2604220763 | Pole Shoe 230V |
| 2 | 2604220764 | Field 110V |
| 31 | 2604618008 | Compression Spring |
| 32 | 2600101127 | Plain Washer |
| 33 | 2600102078 | Damping Element |
| 36 | 2605132076 | Handle |
| 37 | 2605132077 | Housing Cover |
| 4 | 2607200688 | Switch |
| 40 | 2605133040 | Handle |
| 41 | 2603490022 | Screw 4X16 |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460204 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460244 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2603101067 | Guide Piece |
| 54 | 1600206036 | Rubber Ring |
| 55 | 2600148017 | Air-Deflector Ring |
| 56 | 2600148018 | Cover Ring |
| 59 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 6 | 1600703035 | Grommet Ø8,7-Ø9,6X66 MM |
| 6 | 2600707075 | Cable Sleeve Ø6,4-Ø7,0X66 MM |
| 60 | 2603300021 | Hex Nut |
| 62 | 2602305066 | Clamping Piece |
| 63 | 2604618009 | Compression Spring |
| 64 | 2600400077 | Chuck |
| 68 | 2600015014 | Illumination Equipment |
| 70 | 2607230146 | Digital Display |
| 74 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 77 | 2600200056 | Retaining snap ring |
| 78 | 2600451006 | Control Knob |
| 80 | 2912761122 | Torx Oval-Head Screw |
| 801 | 2605105971 | Motor Housing |
| 803 | 2604011957 | Armature 230V |
| 803 | 2604011958 | Armature 110V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A1S0 | Nameplate |
| 808 | 160111A1S2 | Nameplate |
| 808 | 160111A373 | Nameplate |
| 808 | 160111A374 | Nameplate |
| 81 | 2600118025 | Locking washer |
| 810 | 2604321958 | Carbon-Brush Set |
| 820 | 2600009022 | Sliding Plate |
| 821 | 2601016110 | Base Plate |
| 821/11 | 2910641118 | Oval-Head Screw DIN 7985-M4X8-4.8 |
| 822 | 2605500215 | Fan Housing |
| 823 | 2601099903 | Adjustment Device |
| 824 | 2600290065 | Suction Hood |
| 825 | 2603481024 | Knurled Thumbscrew |
| 826 | 2601902007 | Lever |
| 828 | 1600A02DS2 | Lever |
| 829 | 16009000AD | Ball Bearing |
| 84 | 1604477005 | Blade terminal |
| 85 | 1607233549 | Speed governor |
| 85 | 1607233550 | Speed governor |
| 853 | 1907950511 | Single-Head Eng. Wrench SW19 |
| 854 | 2610991370 | Guide Sleeve |
| 855 | 2603105140 | Centering Pin |
| 87 | 2609270029 | Power Stage |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603429010 | Cross Recessed-Head Screw |
| 9 | 2601112878 | Manufacturer's nameplate GOF 1250 Lce |
| 93 | 2602317075 | U section |
| 94 | 2604448373 | Connecting Cable |
| 95 | 2603435086 | Tapping Screw |
| 96 | 2600224011 | Locking washer |
