Bosch GNS 14 WE

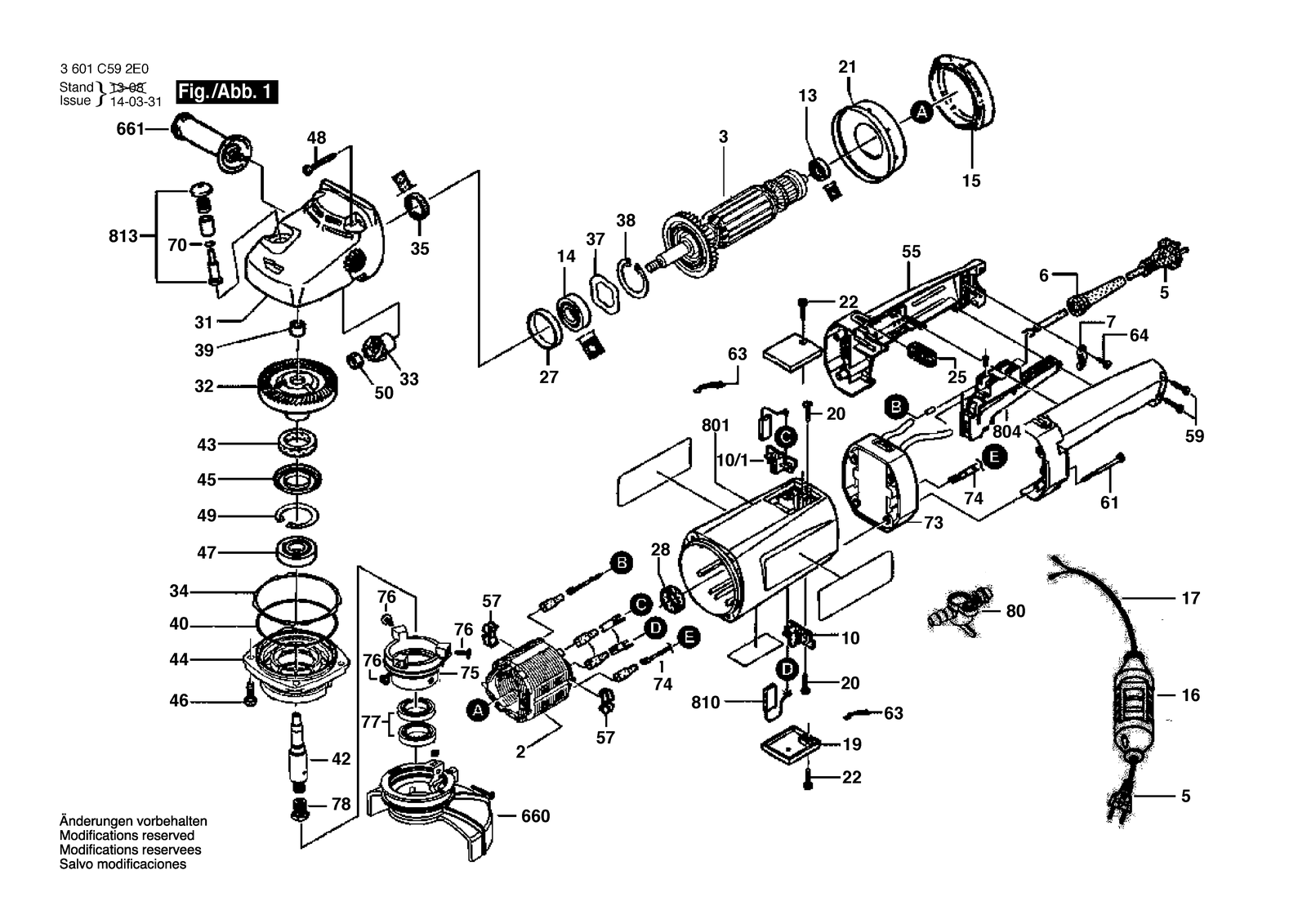

Bosch GNS 14 WE universal angle polisher: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNS 14 WE: 59 positions on 1 sheet
Bosch GNS 14 WE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | F000612012 | Brush Holder |
| 10/1 | F000612003 | Brush Holder |
| 13 | 1600900024 | Groove ball bearing DIN 607-2Z-C3 |
| 14 | F000615004 | Groove ball bearing |
| 15 | 9618086661 | Intermediate Flange |
| 16 | 1607200332 | On-Off Switch |
| 17 | F000610050 | Cable |
| 19 | 1605500089 | Sealing cap Blue |
| 2 | F000607063 | Field 220 V |
| 20 | 9618087099 | Screw 4X16 MM |
| 21 | F000600528 | Air-Deflector Ring |
| 22 | 9618087100 | Tapping Screw 4X20 MM |
| 25 | 1602388029 | Storage Ledge Black |
| 27 | 1600206026 | Intermediate Ring |
| 28 | 1600502011 | Intermediate Ring |
| 3 | F000605108 | Armature With Fan 220 V |
| 31 | F000602166 | Gear Housing |
| 32 | 1606333626 | Crown Gear Z=53 |
| 33 | F000635558 | Pinion |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600290018 | Rotary shaft lip seal |
| 37 | F000616014 | Conical Spring Washer |
| 38 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 39 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 40 | 1600210033 | O-Ring 79,0X1,78 MM |
| 42 | F000619073 | Grinding Spindle |
| 43 | 1600205034 | Felt Washer |
| 44 | F000613088 | Bearing Flange |
| 45 | 1600290019 | Retaining snap ring |
| 46 | 9618086638 | Screw |
| 47 | 1600900044 | Groove ball bearing |
| 48 | F000600216 | Tapping Screw |
| 49 | 1600119010 | Spring retaining ring |
| 5 | F000609064 | Power supply cord BR 0,60M 2 X 01,00MM H07 Rnf |
| 50 | 1613300008 | Hex Nut DIN 936-M8X1-8 |
| 55 | 9618086678 | Handle |
| 57 | 3601025003 | Wire Guide |
| 59 | 9618087100 | Tapping Screw 4X20 MM |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 61 | 2603435017 | Headless Screw |
| 63 | F000612021 | Blade terminal |
| 64 | 2910021115 | Socket head cap screw DIN 84-AM4X5-8.8 |
| 660 | F000633051 | Protective Cover |
| 661 | F000635276 | Auxiliary Handle |
| 7 | 1601302013 | Fastening Clamp |
| 70 | 1600210034 | O-Ring 4,0X1,0 MM |
| 73 | 1600A003MA | EL Field Regulator |
| 74 | F000610007 | Stranded Hook-Up Wire |
| 75 | F000613089 | Connecting Flange |
| 76 | 9618089885 | Thread-forming tap. Screw |
| 77 | F000616411 | Rotary shaft lip seal |
| 78 | F000630074 | Diffuser |
| 80 | F000630075 | Shut-Off Tap |
| 801 | F000601623 | Motor Housing |
| 804 | 160720031H | Switch |
| 810 | F000611018 | Carbon-Brush Set |
| 813 | 9618086834 | Pivot Pin |
