Bosch GNS 14

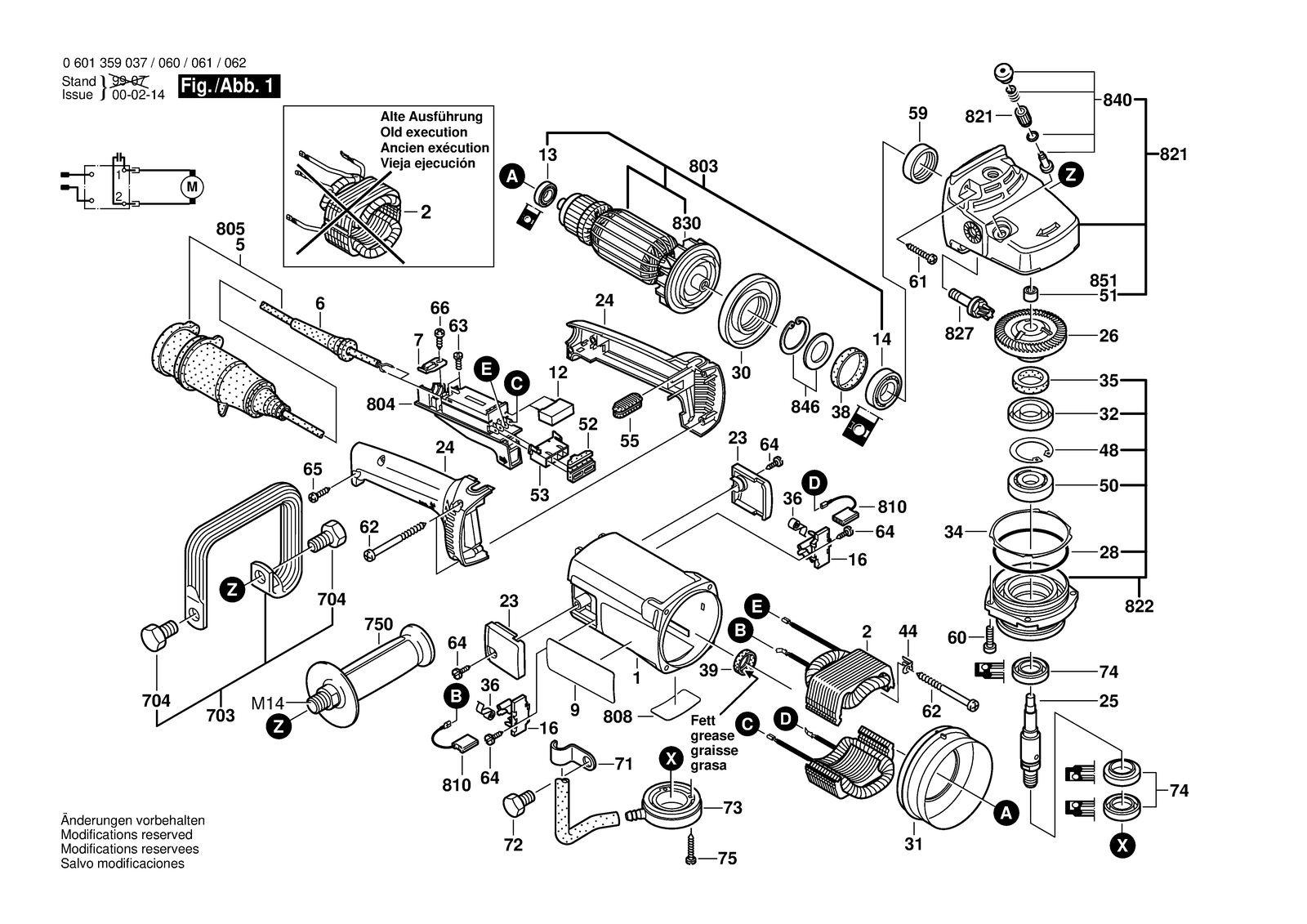

Bosch GNS 14 wet grinder: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNS 14: 66 positions on 1 sheet
Bosch GNS 14 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108144 | Motor Housing Blue |
| 12 | 1607328035 | Suppression Filter |
| 13 | 1600905011 | Groove ball bearing 8X22X7 |
| 14 | 1600905028 | Groove ball bearing |
| 16 | 1604336027 | Brush Holder |
| 2 | 1604220389 | Field 230-240V |
| 2 | 1604220390 | Field 115V |
| 23 | 1605500150 | Sealing cap Black |
| 24 | 1605132117 | Handle Blue |
| 25 | 1603523104 | Grinding Spindle M14 |
| 26 | 1606333255 | Crown Gear Z=57 |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 30 | 1600591010 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652015 | Spiral Spring |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 44 | 1601334008 | Holding Bracket |
| 48 | 1600119010 | Spring retaining ring |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460161 | Power supply cord DIN 49462/63 4,15M 2 X 1,0MM H07RN |
| 5 | 1604460162 | Power supply cord DIN 49462/63 4,15M 2 X 1,5MM H07RN |
| 50 | 3600905134 | Groove ball bearing |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 52 | 1602388027 | Cable routing |
| 53 | 1605190038 | Socket Housing |
| 55 | 1602388029 | Storage Ledge Black |
| 59 | 1603344065 | Threaded Ring |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603435024 | Tapping Screw C4,8X63 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 7 | 1601302018 | Fastening Clamp |
| 703 | 1607000209 | Parts Set |
| 704 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 71 | 1601300004 | Clamp |
| 72 | 2603450007 | Hex Screw M14X16X1,5 MM |
| 73 | 1605703061 | Connecting Flange |
| 74 | 1600283004 | Rotary shaft lip seal Ø35X22X6/6,5 MM |
| 75 | 1603435022 | Thread-forming tap. Screw Tt M5X30 MM |
| 750 | 160202509Z | Auxiliary Handle |
| 750 | 16020250A1 | Auxiliary Handle |
| 803 | 1604011160 | Armature 230-240V |
| 803 | 1604011161 | Armature 110V |
| 804 | 1607200103 | Switch |
| 804 | 1607200104 | Switch |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014171 | Carbon-Brush Set |
| 821 | 1607000945 | Gear Housing |
| 822 | 1607000946 | Bearing Flange |
| 827 | 1607000948 | Bevel Gear |
| 830 | 1606610127 | Fan |
| 840 | 1607000206 | Push-Button Black |
| 846 | 1607000342 | Retaining Washer |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 9 | 1601118442 | Manufacturer's nameplate |
