Bosch GNH 18V-64

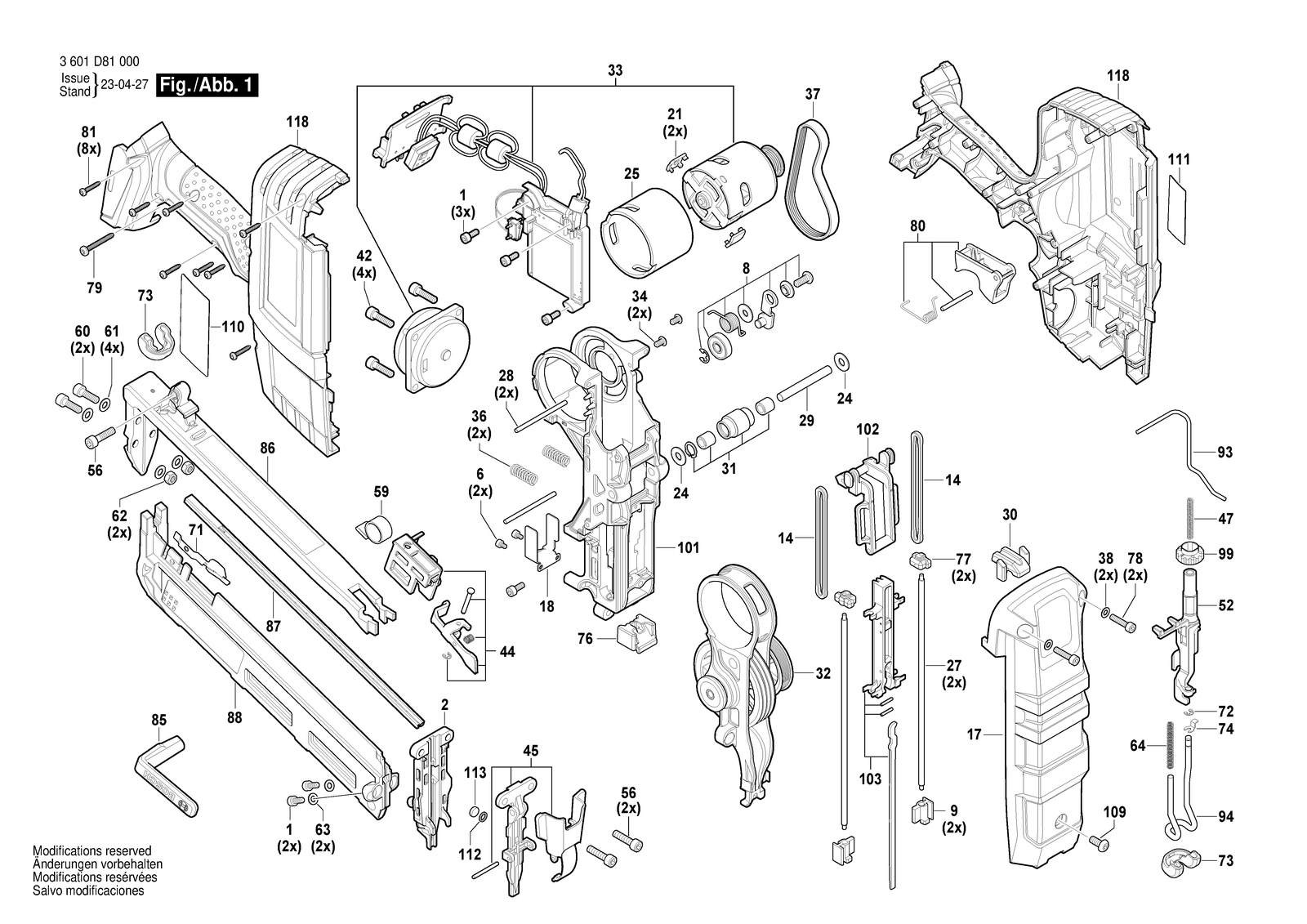

Bosch GNH 18V-64 nailer: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNH 18V-64: 63 positions on 1 sheet
Bosch GNH 18V-64 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610006628 | Screw |
| 101 | 2610009781 | Frame |
| 102 | 2610009790 | Support Frame |
| 103 | 1619PC1986 | Contact Block |
| 109 | 2610005252 | Screw |
| 110 | 1619PB7265 | Nameplate |
| 110 | 1619PB7266 | Nameplate |
| 111 | 1619PB6784 | Nameplate |
| 111 | 1619PB6801 | Nameplate |
| 112 | 1619PB7383 | Washer |
| 113 | 1619PB7384 | Magnet |
| 118 | 1619PB7352 | Housing |
| 14 | 1619PC2189 | Rubber band |
| 17 | 1600A02354 | Cover |
| 18 | 2610009745 | Wear Plate |
| 2 | 2610009742 | Nose |
| 21 | 2610009746 | Brush-Cover |
| 24 | 1619PB7006 | Washer |
| 25 | 2610009747 | Sleeve |
| 27 | 2610009783 | Guide Rail |
| 28 | 2610009789 | Pin |
| 29 | 1619PB7008 | Pin |
| 30 | 2610009805 | Shock Absorber |
| 31 | 2610009784 | Needle-Roller Assembly |
| 32 | 2610009773 | Lever Arm |
| 33 | 1600A02353 | Electronic Module |
| 33 | 1600A0244N | Electronic Module |
| 34 | 2610009748 | Screw |
| 36 | 2610009749 | Compression Spring |
| 37 | 2610009750 | Toothed Belt |
| 38 | 1619PB7010 | Washer |
| 42 | 2610009751 | Screw |
| 44 | 2610009771 | Feeder Block |
| 45 | 2610009787 | Nose |
| 47 | 2610009754 | Compression Spring |
| 52 | 2610009772 | Adjusting lever |
| 56 | 2610005311 | Screw |
| 59 | 2610009755 | Coiled Spring |
| 6 | 2610009743 | Screw |
| 60 | 2610005357 | Screw |
| 61 | 2610009756 | Washer |
| 62 | 2610005245 | Lock Nut |
| 63 | 2610005300 | Washer |
| 64 | 2610009757 | Compression Spring |
| 71 | 2610005340 | Coil Spring |
| 72 | 2610009776 | Retaining ring |
| 73 | 2610005325 | Protective Guard |
| 74 | 2610009777 | Retaining ring |
| 76 | 2610009760 | Shock Absorber |
| 77 | 2610009761 | Shock Absorber |
| 78 | 2610009762 | Screw |
| 79 | 2610009778 | Screw |
| 8 | 2610009782 | Belt Tightening Roller |
| 80 | 1619PB7142 | Trigger |
| 81 | 2610009763 | Screw |
| 85 | 2610009775 | Belt holder clip |
| 86 | 2610009765 | Nail cartridge |
| 87 | 2610009802 | Rail |
| 88 | 2610009766 | Nail cartridge |
| 9 | 2610009752 | Guide Sleeve |
| 93 | 2610009767 | Lever |
| 94 | 2610009768 | Safety Lever |
| 99 | 2610009769 | Thumbwheel |
