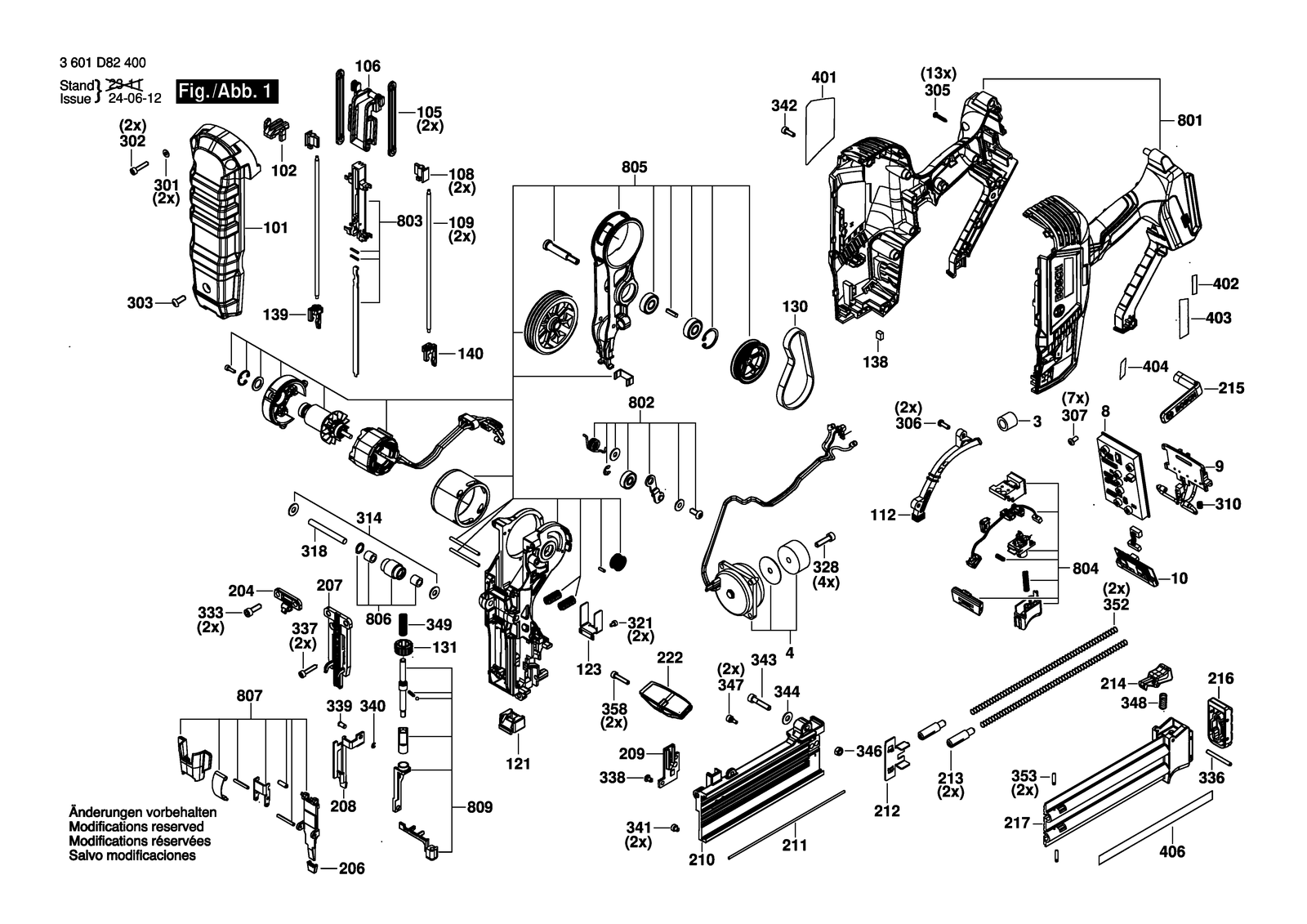

Bosch GNH 18V-50 M nailer: exploded parts diagram, 1 sheet, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNH 18V-50 M: 76 positions on 1 sheet
Bosch GNH 18V-50 M parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 16072335PN | Electronic Module |
| 101 | 1619PC0157 | Front Cover |
| 101 | 1619PC2424 | Front Cover |
| 102 | 2610009805 | Shock Absorber |
| 105 | 1619PC2189 | Rubber band |
| 106 | 2610009790 | Support Frame |
| 108 | 2610009752 | Guide Sleeve |
| 109 | 2610009783 | Guide Rail |
| 112 | 1619PC0180 | Cable Bracket |
| 121 | 1619PC0872 | Shock Absorber |
| 123 | 2610009745 | Wear Plate |
| 130 | 2610009750 | Toothed Belt |
| 131 | 1619PC0179 | Wheel |
| 138 | 1619PC2195 | Sponge |
| 139 | 1619PC2469 | Shock Absorber |
| 140 | 1619PC2470 | Shock Absorber |
| 204 | 1619PC0203 | Nose |
| 206 | 1619PC0890 | Protective Guard |
| 207 | 1619PC0202 | Plate |
| 208 | 1619PC0153 | Safety Lever |
| 209 | 1619PC0168 | Cover |
| 210 | 1619PC0164 | Nail cartridge |
| 211 | 1619PC0891 | Bar |
| 212 | 1619PC0152 | Feeder |
| 213 | 1619PC0892 | Spring Holder |
| 214 | 1619PC0893 | Latch |
| 215 | 2610009775 | Belt holder clip |
| 216 | 1619PC0894 | Cushion |
| 217 | 1619PC0895 | Magazine cover |
| 222 | 1619PC2471 | Bracket |
| 3 | 1619PC0853 | Ferrite |
| 301 | 2610005300 | Washer |
| 302 | 2610009762 | Screw |
| 303 | 2610005252 | Screw |
| 305 | 2610009763 | Screw |
| 306 | 2610006628 | Screw |
| 307 | 1619PC0911 | Screw |
| 310 | 2610009753 | Compression Spring |
| 314 | 1619PB7006 | Washer |
| 317 | 2610009789 | Pin |
| 318 | 1619PB7008 | Pin |
| 321 | 2610009743 | Screw |
| 328 | 2610009751 | Screw |
| 333 | 1619PC0940 | Screw |
| 336 | 1619PC0953 | Pin |
| 337 | 1619PC0958 | Screw |
| 338 | 2610009748 | Screw |
| 339 | 1619PC0960 | Pin |
| 340 | 1619PC0963 | Loop |
| 341 | 1619PC0962 | Screw |
| 342 | 2610005311 | Screw |
| 343 | 1619PC0966 | Screw |
| 344 | 1619PC0967 | Washer |
| 346 | 2610005245 | Lock Nut |
| 347 | 1619PC0965 | Screw |
| 348 | 1619PC0971 | Spring |
| 349 | 1619PC2242 | Spring |
| 352 | 1619PC0972 | Spring |
| 353 | 1619PC0970 | Pin |
| 358 | 1619PC2472 | Screw |
| 4 | 1619PC0664 | Solenoid |
| 401 | 1619PC2394 | Nameplate |
| 402 | 1619PC0651 | Label |
| 403 | 1619PC0645 | Manufacturer's nameplate |
| 404 | 1619PC0649 | Label |
| 406 | 1619PC1167 | Label |
| 8 | 16072335ST | Speed governor |
| 801 | 1619PC2412 | Housing Assembly |
| 802 | 1619PC2247 | Idler |
| 803 | 1619PC2250 | Driver |
| 804 | 1619PC2254 | Trigger unit |
| 805 | 1619PC2475 | Pivot |
| 806 | 2610009784 | Needle-Roller Assembly |
| 807 | 1619PC2261 | Outlet Plate |
| 809 | 1619PC2268 | Adjustment Kit |
| 9 | 1600A02G89 | Contact retainer |
