Bosch GNF 45 CA

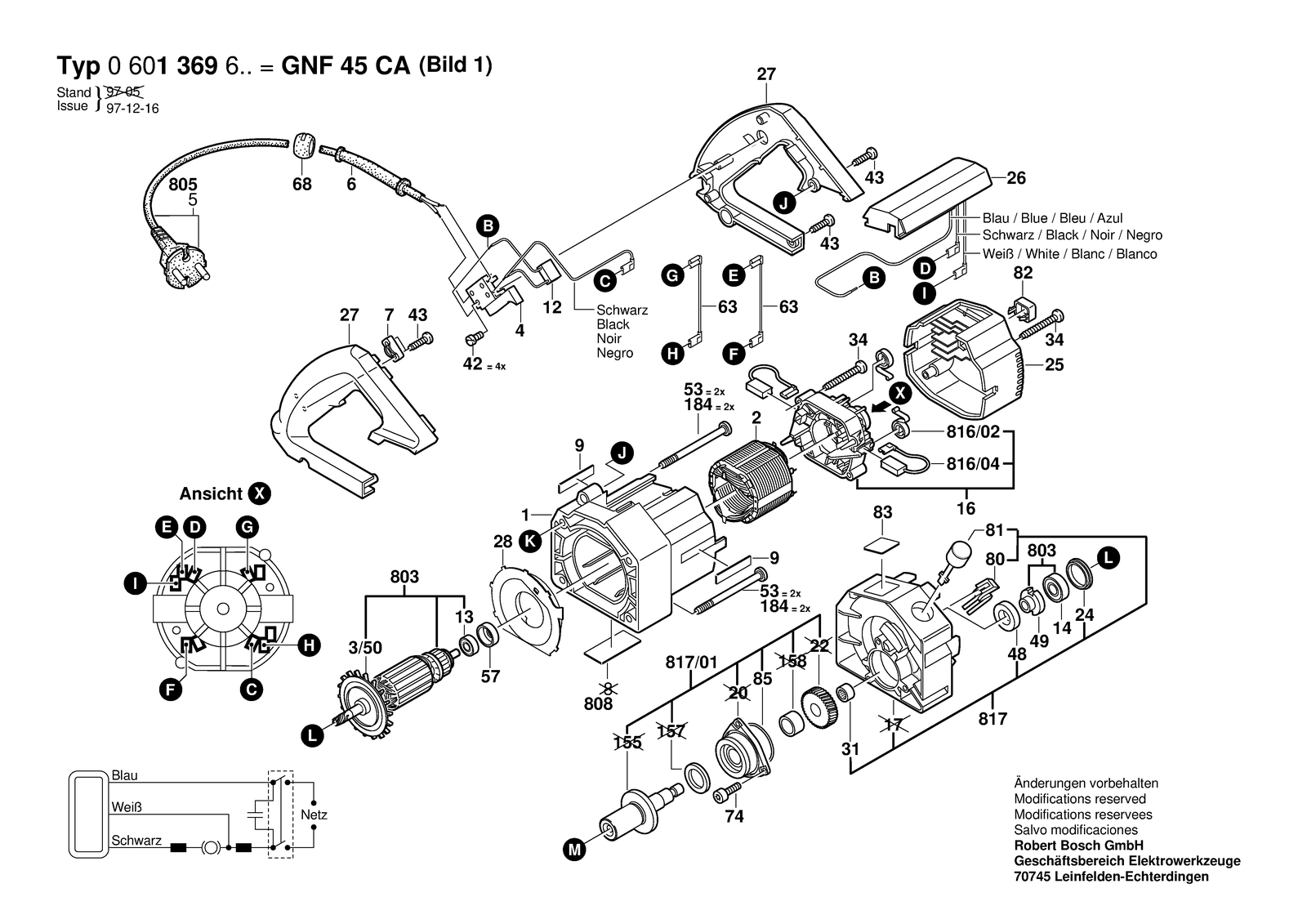

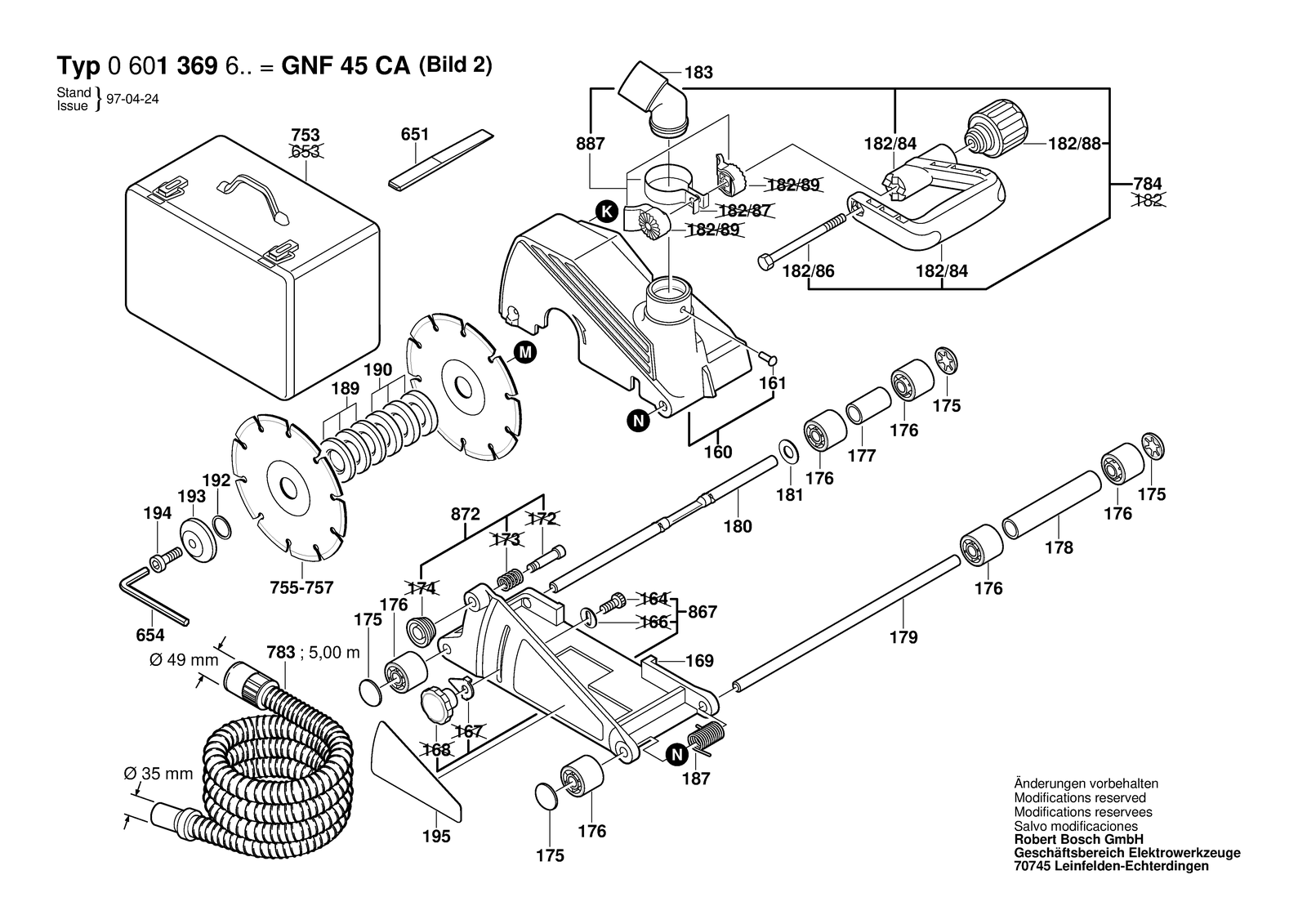

Bosch GNF 45 CA wall chaser: exploded parts diagram, 2 sheets, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNF 45 CA: 76 positions on 2 sheets
Bosch GNF 45 CA parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108170 | Motor Housing Blue |
| 12 | 1607328050 | Suppression Filter |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 16 | 1604336038 | Brush Holder |
| 160 | 1609203316 | Protective Cover |
| 161 | 1609203716 | Grooved Nail |
| 169 | 1609203317 | Chassis |
| 175 | 1609203495 | Clamping Head |
| 176 | 1609203321 | Roller |
| 177 | 1609203496 | Spacer Tube |
| 178 | 1609203497 | Spacer Tube |
| 179 | 1609203498 | Axle |
| 180 | 1609203323 | Axle |
| 181 | 1609203500 | Plain Washer Ø 10,5 MM |
| 182/84 | 1615132044 | Strap-Shaped Handle Black |
| 182/86 | 2911011270 | Hex Screw DIN 931-M8X130-8.8 |
| 182/88 | 1619P16922 | Star Knob |
| 183 | 1609203318 | Suction Socket |
| 184 | 1603435049 | Thread-forming tap. Screw B5 X 75 MM |
| 187 | 1609203501 | Spring |
| 189 | 3609202041 | Plain Washer Ø 42X22,2X4 MM |
| 190 | 3609202042 | Plain Washer Ø 42X22,2X6 MM |
| 192 | 1609203504 | O-Ring 6X3 MM |
| 193 | 1609203505 | Conical Spring Washer Ø42XØ22,3 MM |
| 194 | 1609203506 | Socket head cap screw M 8X25 MM |
| 195 | 1609203507 | Manufacturer's nameplate |
| 2 | 1604220321 | Field 230-240V |
| 24 | 1600221003 | Intermediate Ring |
| 25 | 1605500186 | Sealing cap Black |
| 26 | 1607233132 | Speed governor 230-240V |
| 27 | 1605133044 | Handle Blue |
| 28 | 1600591017 | Air-Deflector Ring Black |
| 3/50 | 3606610002 | Fan |
| 31 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 34 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 4 | 1607200144 | On-Off Switch |
| 42 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 43 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 48 | 1600290016 | Rotary shaft lip seal |
| 49 | 1600390017 | Locking Ring |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 53 | 1603435049 | Thread-forming tap. Screw B5 X 75 MM |
| 57 | 1600502023 | Intermediate Ring |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 63 | 1604448011 | Connecting Cable L=52 MM |
| 651 | 3607959005 | Splitting Tool |
| 654 | 1609203508 | Hexagon-Socket Key SW6 |
| 68 | 1603231014 | Locking element |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 74 | 2603435042 | Thread-forming tap. Screw |
| 753 | 2605438362 | Carrying Case |
| 755 | 2608600286 | Diamond Cutting Blade Ø 150 MM |
| 757 | 2608600182 | Diamond Cutting Blade Ø 150MM |
| 783 | 1609202230 | Air Hose Ø 35 Mm, L=5 M |
| 784 | 2602025063 | Auxiliary Handle Ø 43 MM |
| 80 | 1601329025 | Stop Spring |
| 803 | 1604010657 | Armature With Fan 230-240V |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 81 | 1603231015 | Locking Bolt |
| 816/02 | 2604652008 | Spiral Spring |
| 816/04 | 1607014149 | Carbon-Brush Set |
| 817 | 1609203513 | Gear Housing |
| 817/01 | 1609203514 | Drive Shaft M8 |
| 82 | 1605500205 | Plug |
| 83 | 1601110470 | Reference Plate |
| 85 | 1600210038 | O-Ring 38,0X1,5 MM |
| 867 | 1609203510 | Depth-Gauge |
| 872 | 1609203511 | Detent Pin |
| 887 | 1617000171 | Clamping Band Ø 43 MM |
| 9 | 1601118308 | Manufacturer's nameplate |
