Bosch GNB 18V-38

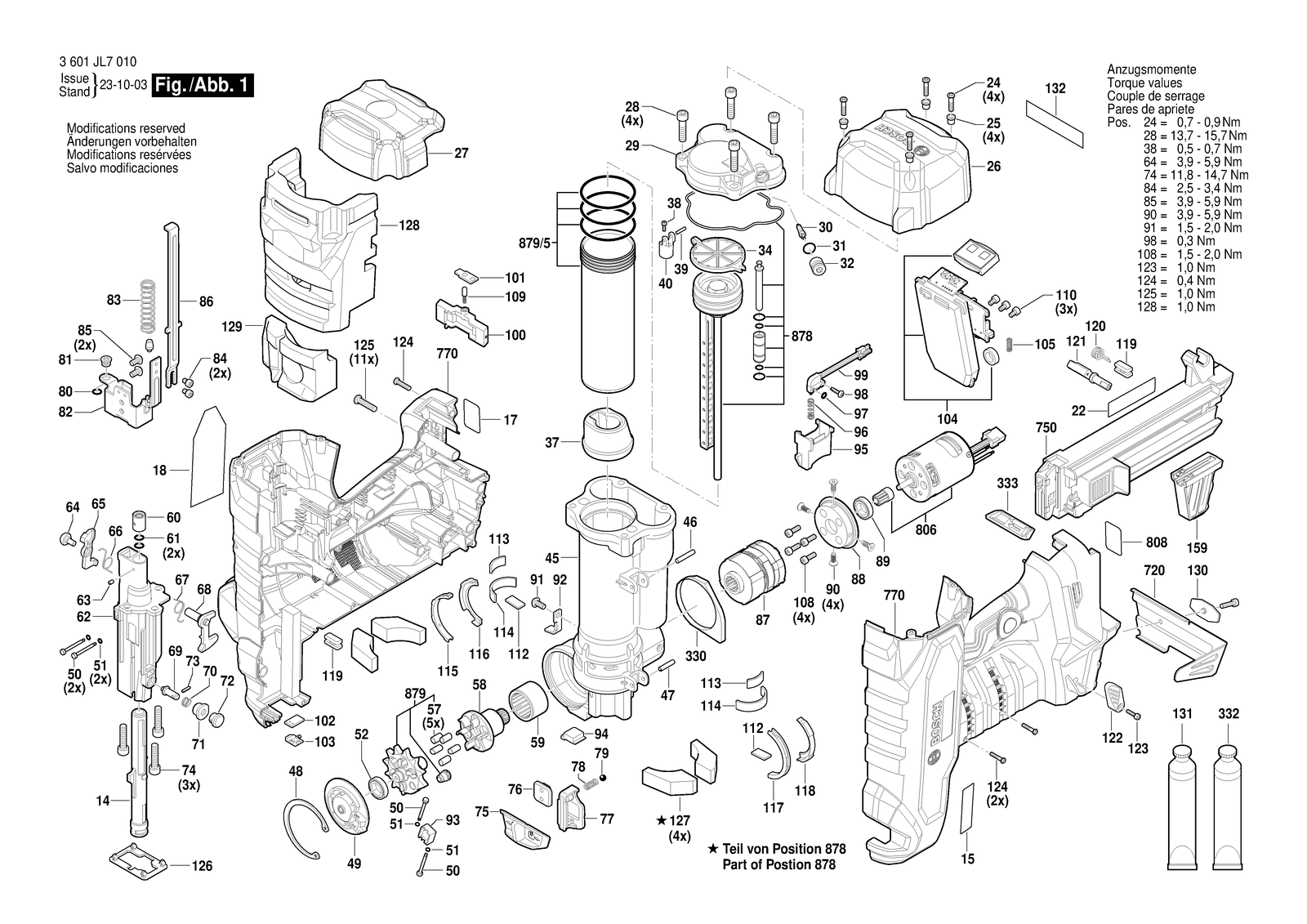

Bosch GNB 18V-38 nailer: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNB 18V-38: 112 positions on 1 sheet
Bosch GNB 18V-38 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1600A02HM4 | Locking Lever |
| 101 | 1600A02HM5 | Detent plate |
| 102 | 1600A02HM6 | LED lighting |
| 103 | 1600A02HM7 | Lens |
| 104 | 1600A02G8F | Electronics Module |
| 105 | 1600A02HP2 | Spring |
| 108 | 1600A02HP5 | Hex Socket Head Cap Screw |
| 109 | 1603123085 | Detent Pin |
| 110 | 1600A02J1Y | Hex Socket Head Cap Screw |
| 112 | 1600A02HP7 | Rubber Buffer |
| 113 | 1600A02HP8 | Rubber Buffer |
| 114 | 1600A02HP9 | Rubber Buffer |
| 115 | 1600A02HR0 | Rubber Buffer |
| 116 | 1600A02HR1 | Rubber Buffer |
| 117 | 1600A02HR2 | Rubber Buffer |
| 118 | 1600A02HR3 | Rubber Buffer |
| 119 | 1600A02HR4 | Rubber Buffer |
| 120 | 1600A02HR5 | Torsion Spring |
| 121 | 1600A02HR6 | Pivot Shaft |
| 122 | 1600A02HR7 | Release Lever |
| 123 | 1600A02HR8 | Hex Socket Head Cap Screw |
| 124 | 1600A02HS0 | Self-tapping screw |
| 125 | 16034300BF | Tapping Screw |
| 126 | 1600A02J1Z | Dust-Protection Cover |
| 127 | 1600A02HS2 | Air Filter |
| 128 | 1600A02HS3 | Supporting Foam |
| 129 | 1600A02HS4 | Supporting Foam |
| 130 | 1600A02HS5 | Mounting Plate |
| 131 | 2610005257 | Grease |
| 132 | 1600A02JD6 | Warning Label |
| 14 | 1600A02HL3 | Safety Lever |
| 15 | 160111A9UY | Nameplate |
| 159 | 1600A02HT9 | Supporting foot |
| 17 | 1600A02JD3 | Warning Label |
| 18 | 1600A02JD4 | Type Label |
| 22 | 1600A02JD5 | Warning Label |
| 24 | 16034300BF | Tapping Screw |
| 25 | 1600A02HD9 | Washer |
| 26 | 16055002L0 | Cover |
| 27 | 1600A02HE0 | Supporting Foam |
| 28 | 1600A02HE1 | Hex Socket Head Cap Screw |
| 29 | 1600A02HE2 | Cylinder Cover |
| 30 | 1600A02HE3 | Charge Valve |
| 31 | 16002100AW | O-Ring |
| 32 | 1600A02HE4 | Screw Plug |
| 330 | 1600A02U8T | Air Filter |
| 332 | 60828010CA | Grease |
| 333 | 1600A02U8S | Stopping Pin |
| 34 | 1600A02HE8 | Isolating Valve |
| 37 | 1600A02HG5 | Bumper |
| 38 | 160343509T | Hex Screw |
| 39 | 1600A02HG6 | Pivot Pin |
| 40 | 1600A02HG7 | Support |
| 45 | 16058066GY | Housing |
| 46 | 1600A02HH0 | Pivot Pin |
| 47 | 1600A02HH1 | Slotted Spring Pin |
| 48 | 1600150045 | Spring retaining ring |
| 49 | 1600A02HH2 | Gear Cover |
| 50 | 1600A02HH3 | Retaining Pin |
| 51 | 16002100B0 | O-Ring |
| 52 | 16009000AJ | Ball Bearing |
| 57 | 1600A02HH8 | Bumper |
| 58 | 1600A02HH4 | Spindle With Gear |
| 59 | 1600A02HH9 | Needle bearing |
| 60 | 1600A02HJ0 | Guide Bushing |
| 61 | 16002100B1 | O-Ring |
| 62 | 1600A02HJ1 | Nose |
| 63 | 1600A02HJ2 | Spring Pin |
| 64 | 160343509U | Hex Screw |
| 65 | 1600A02HJ3 | Stop Latch |
| 66 | 1600A02HJ4 | Torsion Spring |
| 67 | 1600A02HJ5 | Torsion Spring |
| 68 | 1600A02HJ6 | Stop Latch |
| 69 | 1600A02HJ7 | Retention knob |
| 70 | 1600A02HJ8 | Spring |
| 71 | 1600A02HJ9 | Actuator spring retainer |
| 72 | 1600A02HK0 | End cap |
| 720 | 1600A02K07 | Hook |
| 73 | 1600A02HK1 | Rubber Buffer |
| 74 | 160343509V | Hex Screw |
| 75 | 1600A02HK2 | Adjusting Slide |
| 750 | 1600A02K00 | Nail cartridge |
| 76 | 1600A02HK3 | Detent plate |
| 77 | 1600A02HK4 | Adjusting Slide |
| 770 | 16058066HX | Housing |
| 78 | 1600A02HK5 | Spring |
| 79 | 1600A02HK6 | Ball |
| 80 | 16002100B2 | O-Ring |
| 806 | 1605A002BP | Motor assembly |
| 808 | 1600A0303P | Type Label |
| 81 | 1600A02HK7 | Magnet Assembly |
| 82 | 1600A02HK8 | Safety Lever |
| 83 | 1600A02HL0 | Spring |
| 84 | 1600A02HL1 | Hex Socket Head Cap Screw |
| 85 | 1600A02HL2 | Hex Socket Button Screw |
| 86 | 1600A02HK9 | Safety Device |
| 87 | 1600A02HL5 | Planetary Gear Train |
| 878 | 1607000F3C | Piston assembly |
| 879 | 1607000F3D | Toothed Gear |
| 879/5 | 1600A02W49 | Cylinder |
| 88 | 1600A02HL6 | Adapter Plate |
| 89 | 16009000AK | Ball Bearing |
| 90 | 1600A02HL7 | Torx Screw |
| 91 | 1600A02J1W | Hex Socket Button Screw |
| 92 | 1600A02J1X | Cable Bracket |
| 93 | 1600A02HL8 | Hall Sensor |
| 94 | 1600A02HL9 | Hall Sensor |
| 95 | 1600A02HM0 | Trigger |
| 96 | 1600A02HM1 | Spring |
| 97 | 16002100B3 | O-Ring |
| 98 | 1600A02HM3 | Self-tapping screw |
| 99 | 2607202769 | Switch |
