Bosch GNA 75-16

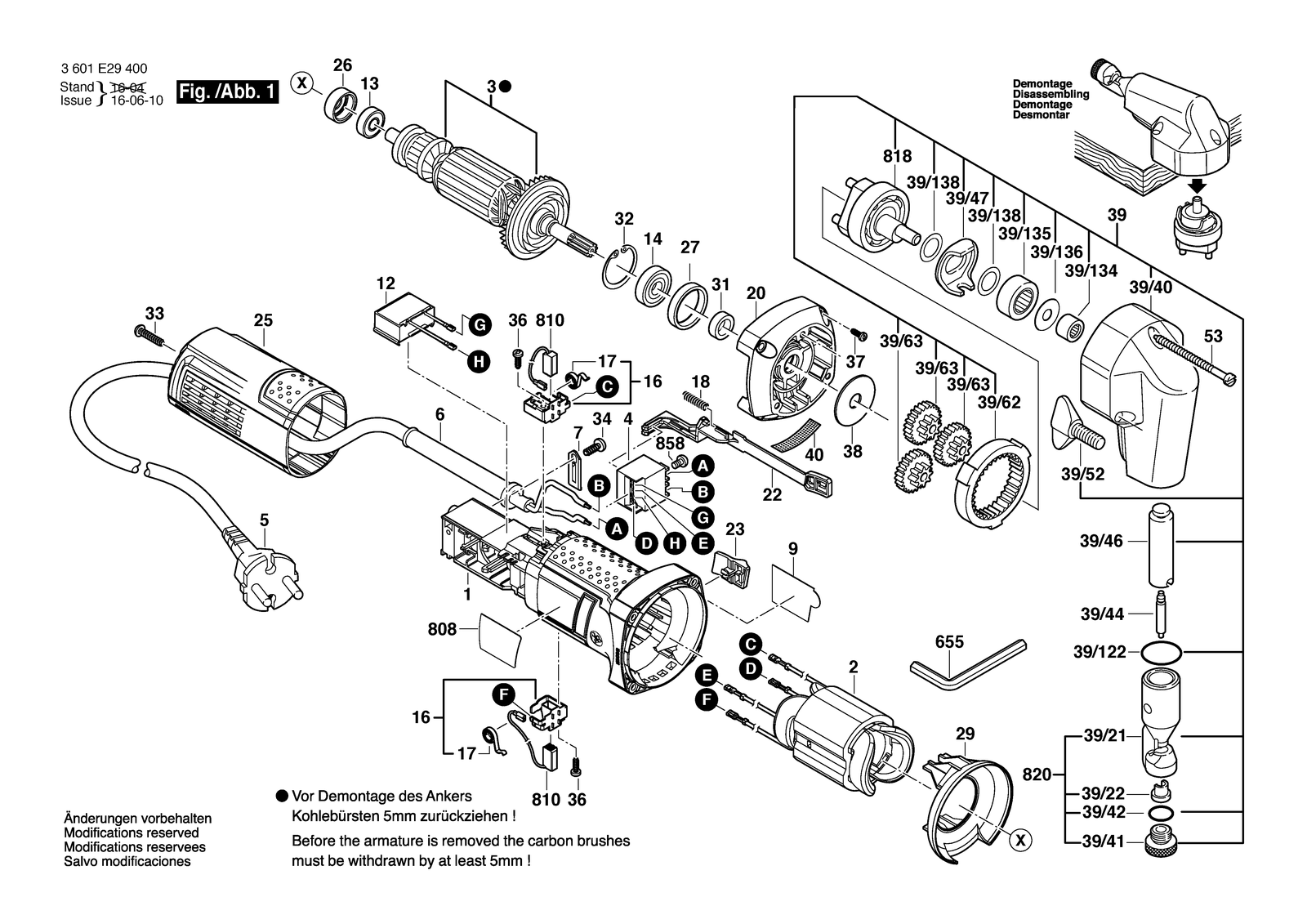

Bosch GNA 75-16 nibbler: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNA 75-16: 54 positions on 1 sheet
Bosch GNA 75-16 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10958 | Motor Housing |
| 12 | 1619P02827 | Suppression Filter |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 3600905162 | Groove ball bearing 8 X 24 X 8 ; NTN 628LLBC3 / 1K |
| 16 | 1619P01811 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1619P11487 | Compression Spring |
| 2 | 160422059E | Field |
| 20 | 3605700201 | Intermediate Flange |
| 22 | 1619P10967 | Adjusting Slide |
| 23 | 1619P10969 | Switch Button |
| 25 | 1619P10963 | Housing Cover |
| 26 | 1600206036 | Rubber Ring |
| 27 | 3600206015 | Rubber Ring |
| 29 | 1619P10970 | Air-Deflector Ring |
| 3 | 1604010B5S | Armature |
| 31 | 3600300079 | Bushing |
| 32 | 3600283046 | Spring retaining ring |
| 33 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 34 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 36 | 1613435034 | Lens Head Screw 3X10 St |
| 37 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 38 | 3600100102 | Shim washer |
| 39 | 3607000116 | Assembly kit |
| 39/122 | 3600210012 | O-Ring 20,0X1,0 MM |
| 39/134 | 2600910006 | Needle bearing Ø7 MM |
| 39/135 | 3600905158 | Track-Supporting Roller |
| 39/136 | 3600102050 | Shim ring |
| 39/138 | 3600102049 | Shim ring |
| 39/21 | 3606455044 | Die Carrier |
| 39/22 | 3608639036 | Lower Die |
| 39/40 | 3605106109 | Housing |
| 39/41 | 3603301020 | Round Nut |
| 39/42 | 1900210105 | O-Ring 8X2,5 MM |
| 39/44 | 3608639037 | Nibbling Punch |
| 39/46 | 3603100045 | Tappet |
| 39/47 | 3602311052 | U-Sheet |
| 39/52 | 3603480005 | Wing Screw |
| 39/62 | 3600112004 | Ring Gear |
| 39/63 | 3600112005 | Wheel |
| 4 | 1607200238 | Switch |
| 40 | 3600105014 | Grating |
| 5 | 2604460355 | Power supply cord Aus |
| 5 | 3604460185 | Power supply cord EU 4,15M 2X1,0MM H07RN-F |
| 53 | 3603435055 | Torx Oval-Head Screw |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 7 | 1601302017 | Fastening Clamp |
| 808 | 3601119918 | Nameplate |
| 810 | 1619P11715 | Carbon-Brush Set |
| 818 | 1600A003A0 | Planetary-Gear Carrier |
| 820 | 3607030493 | Lower Die Ring |
| 858 | 2910641081 | Oval-Head Screw DIN7985-M3,5X5-4.8-H |
| 9 | 3601110584 | Manufacturer's nameplate |
