Bosch GNA 3,5

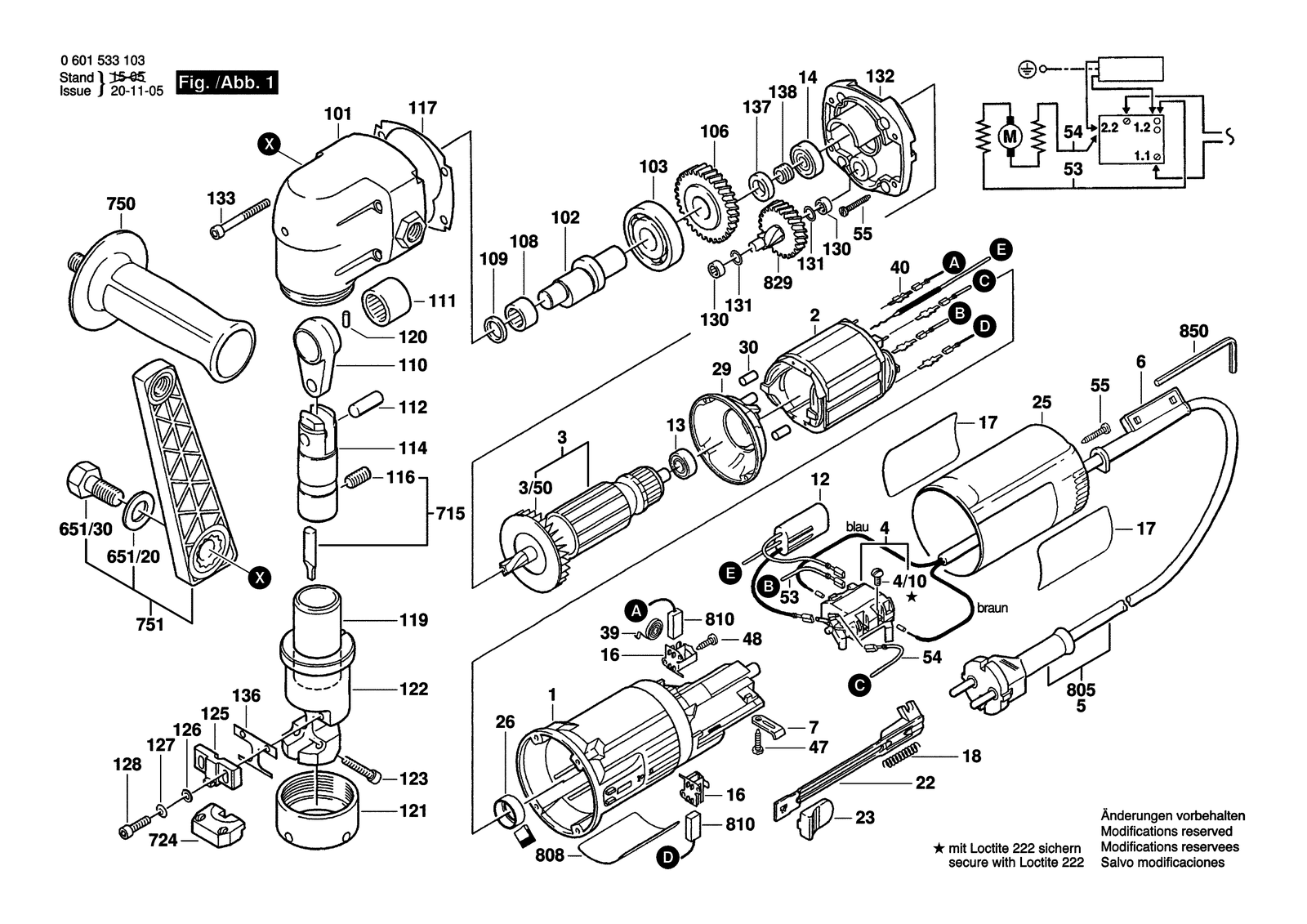

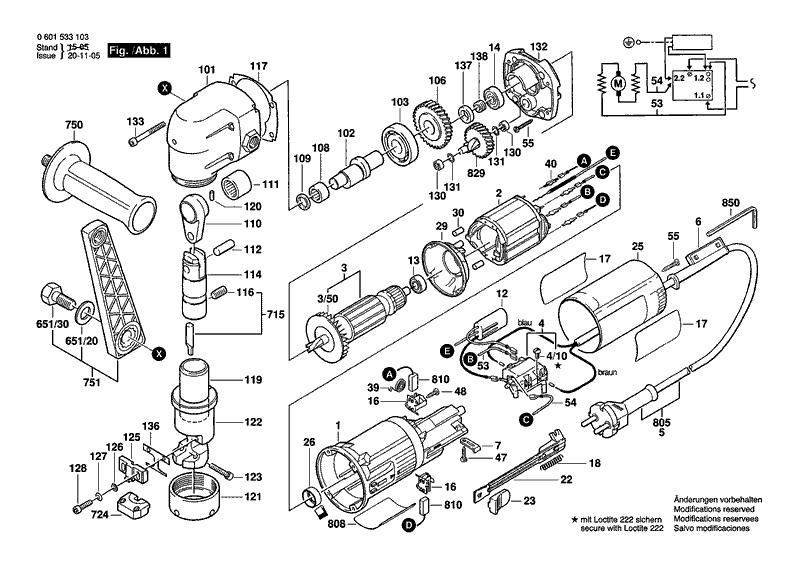

Bosch GNA 3,5 nibbler: exploded parts diagram, 1 sheet, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNA 3,5: 81 positions on 1 sheet
Bosch GNA 3,5 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16051082CC | Motor Housing |
| 101 | 3605806176 | Gear Housing |
| 102 | 3606110007 | Eccentric Shaft |
| 103 | 1900905326 | Groove ball bearing 6303-2 Z DIN 625 |
| 106 | 3606316086 | Cylindrical Gear Z=37 |
| 108 | 3600917019 | Needle bearing |
| 109 | 3600200041 | Felt Washer |
| 110 | 3602001006 | Connecting Rod |
| 111 | 3600917042 | Needle bearing |
| 112 | 2917530199 | Straight Pin DIN 6325-10M6X24 |
| 114 | 3603070002 | Tappet |
| 116 | 2912080238 | Set screw DIN 913-M8X16-45H |
| 117 | 3601006010 | Seal |
| 119 | 3600400018 | Guide Sleeve |
| 12 | 2607329124 | Suppression Filter |
| 120 | 2917510094 | Straight Pin DIN 7-4 M6X10-ST |
| 121 | 3603301016 | Round Nut |
| 122 | 3607031358 | Lower Die Ring |
| 123 | 2910141163 | Hex Socket Head Cap Screw DIN 912-M5X22-8.8 |
| 125 | 3602380009 | Guide Piece |
| 126 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 127 | 2916069159 | Spring Washer |
| 128 | 2910141160 | Hex Socket Head Cap Screw DIN 912-M5X18-8.8 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 130 | 2600910006 | Needle bearing Ø7 MM |
| 131 | 1600100631 | Shim Thick 0,5 MM |
| 132 | 3605805026 | Bearing Flange |
| 133 | 2910141172 | Hex Socket Head Cap Screw DIN 912-M5X45-8.8 |
| 136 | 3601181039 | Stop Plate |
| 137 | 1600290016 | Rotary shaft lip seal |
| 138 | 1600300090 | Intermediate Ring |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 1601323019 | Brush Holder |
| 17 | 1619P06409 | Manufacturer's nameplate |
| 17 | 3601110345 | Company Logo |
| 18 | 1604611026 | Compression Spring |
| 2 | 1604220194 | Field 240V |
| 2 | 1604220274 | Field 110-120V |
| 2 | 1614220105 | Field 100-120V |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle Black |
| 25 | 1600508010 | Housing Cover Blue |
| 26 | 1600502020 | Rubber Bushing |
| 29 | 1601328005 | Air-Deflector Ring |
| 3 | 1604010183 | Armature 220V |
| 3 | 1604010184 | Armature 100V |
| 3 | 1604010185 | Armature 110-115V |
| 3 | 1604010186 | Armature 240V |
| 3/50 | 2606610049 | Fan |
| 30 | 2602391004 | Rubber Buffer |
| 39 | 1604652013 | Spiral Spring |
| 4 | 1607200086 | On-Off Switch |
| 4/10 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 40 | 1604477011 | Blade terminal |
| 47 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460149 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 5 | 1604460283 | Elec. Cable W/Connection BR 2,65M 2 X 1,0MM H07RN-F |
| 5 | 1604460456 | Power supply cord |
| 5 | 160446071A | Power supply cord |
| 5 | 3604460049 | Power supply cord |
| 5 | 3604460051 | Power supply cord GB 240V 2,65M 2 X 1,0MM H07RN-F |
| 5 | 3604460192 | Power supply cord |
| 53 | 1604448005 | Connecting Cable White L=95 MM |
| 54 | 1604448006 | Connecting Cable White L=40 MM |
| 55 | 2914201508 | Torx Oval-Head Screw |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703032 | Grommet Ø7,6-Ø8,2X95 MM |
| 651/20 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 651/30 | 2603450009 | Hex Screw |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302024 | Fastening Clamp |
| 715 | 2608639025 | Nibbling Punch |
| 724 | 2608639026 | Lower Die |
| 750 | 2602025075 | Auxiliary Handle Black M14X1,5 MM |
| 751 | 2607001190 | Parts Set |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3604321019 | Carbon Brush |
| 829 | 3606328017 | Spindle With Gear Z=8/26 |
| 850 | 2607950004 | Offset Screwdriver DIN 911-4 |
