Bosch GNA 18V-16 E

Bosch GNA 18V-16 E nibbler: exploded parts diagram, 2 sheets, 44 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNA 18V-16 E: 44 positions on 2 sheets

Bosch GNA 18V-16 E parts list (2 sheets)

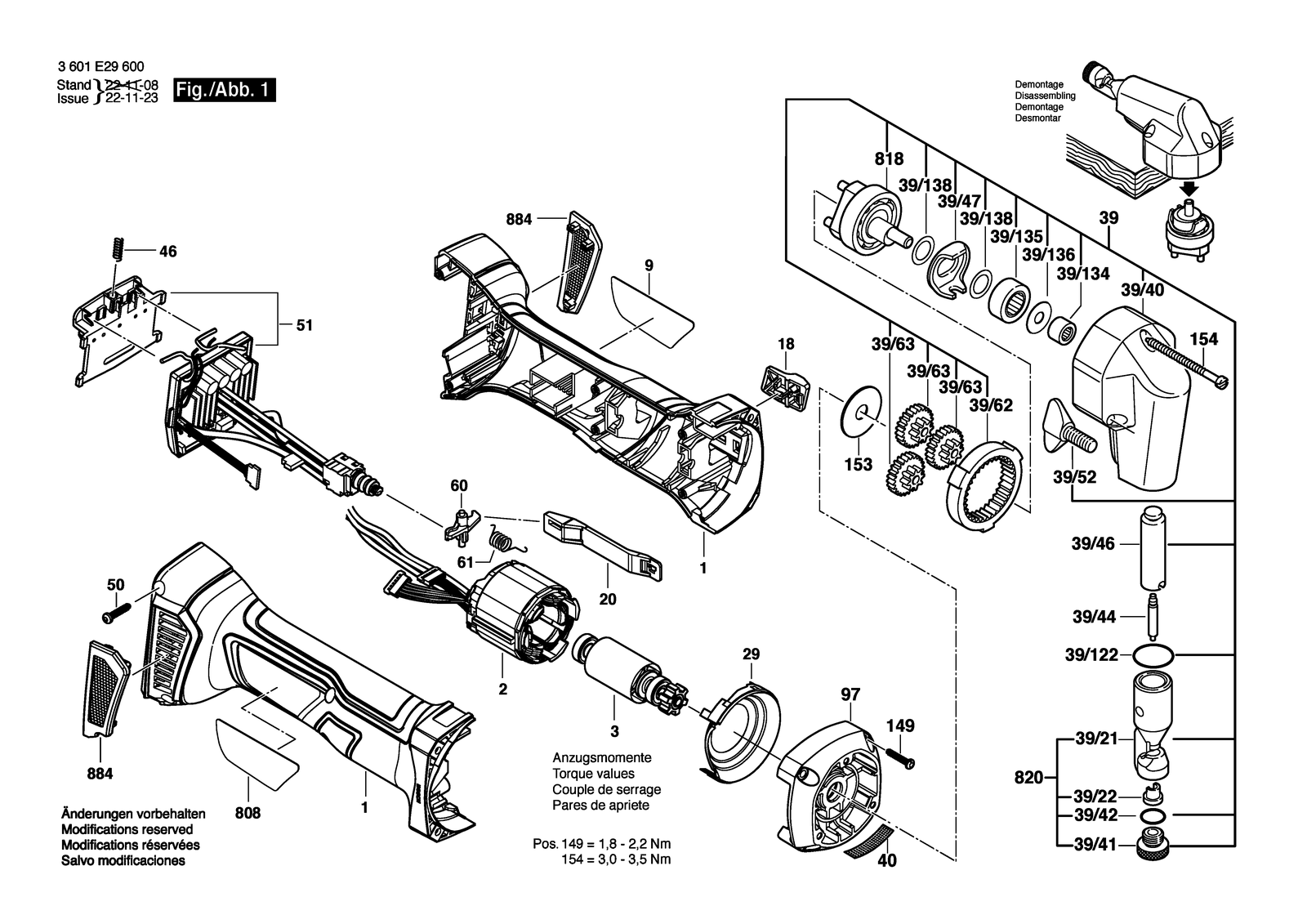

Bosch GNA 18V-16 E parts diagram, sheet 1Bosch GNA 18V-16 E parts diagram, sheet 2
No.Part numberPart name
11619P15044Motor Housing
1492603490025Torx Oval-Head Screw 4X30
1533600100102Shim washer
1543603435055Torx Oval-Head Screw
181619P15338Switch Handle
21600A01A6NStator
201619P15050Adjusting Slide
291600591065Air-Deflector Ring
31600A01A6SRotor
393607000116Assembly kit
39/1223600210012O-Ring 20,0X1,0 MM
39/1342600910006Needle bearing Ø7 MM
39/1353600905158Track-Supporting Roller
39/1363600102050Shim ring
39/1383600102049Shim ring
39/213606455044Die Carrier
39/223608639036Lower Die
39/403605106109Housing
39/413603301020Round Nut
39/421900210105O-Ring 8X2,5 MM
39/443608639037Nibbling Punch
39/463603100045Tappet
39/473602311052U-Sheet
39/523603480005Wing Screw
39/623600112004Ring Gear
39/633600112005Wheel
403600105014Grating
461609280477Compression Spring
502609110201Torx Flat-Head Screw 3X16
511600A01NC3Electronics Module
601619P15795Reverse-Transfer Lever
611619P15806Torsion Spring
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6522607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6531607A350ASBattery Pack Kor GBA 18V 8.0AH Procore Scm
6531617S019K0Battery Pack
6532607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
808160111A8T5Nameplate
808160111A8T6Nameplate
8181600A003A0Planetary-Gear Carrier
8203607030493Lower Die Ring
8841607000CA9Filter Unit
9160111C4E4Manufacturer's nameplate
971600A027H8Assembly kit
