Bosch GNA 18V-16

Bosch GNA 18V-16 nibbler: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNA 18V-16: 46 positions on 1 sheet

Bosch GNA 18V-16 parts list (1 sheet)

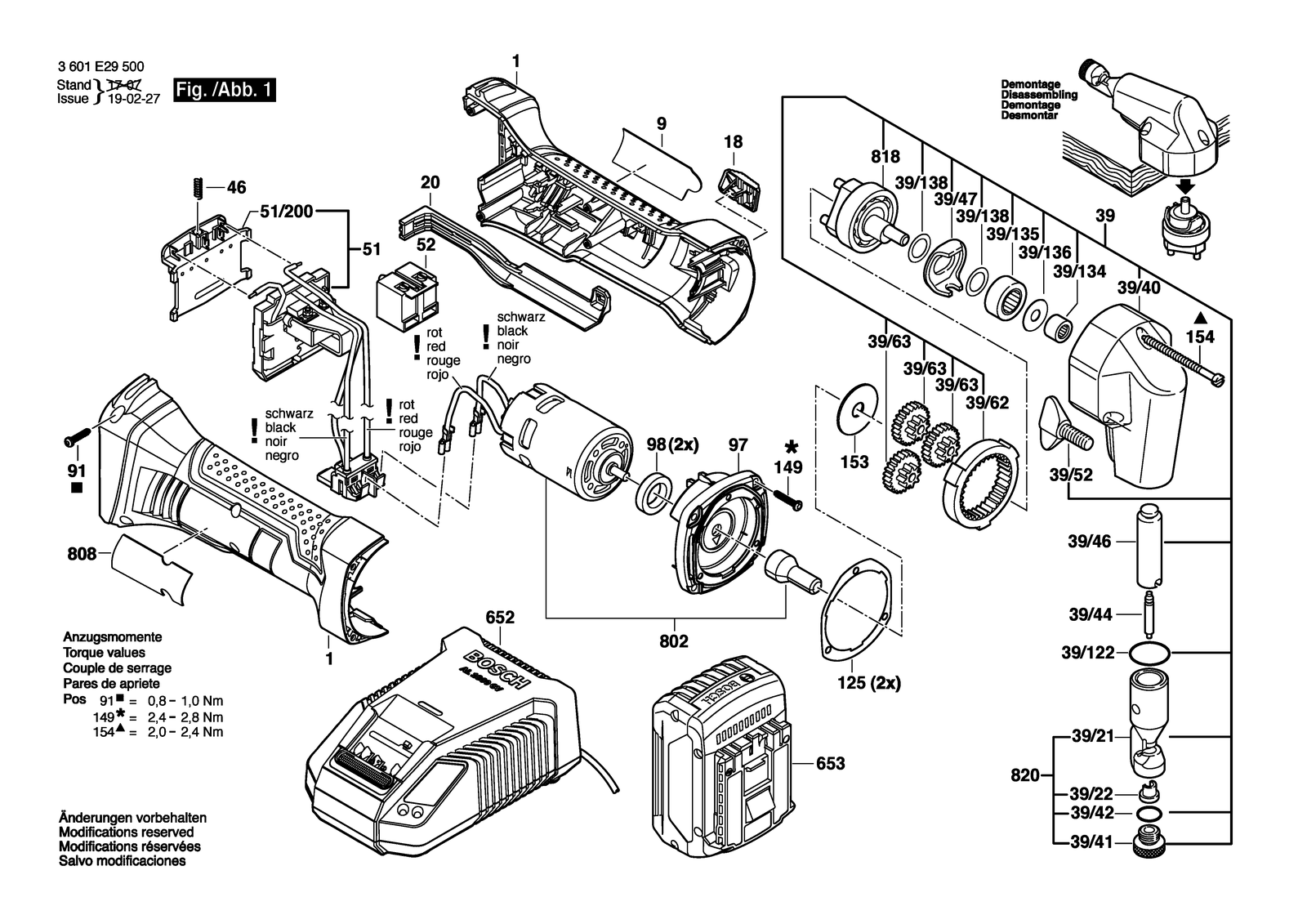

Bosch GNA 18V-16 parts diagram, sheet 1
No.Part numberPart name
11605108282Housing Section Blue
1253600109023Flange sealing
1492603490024Torx Oval-Head Screw 4X25
1533600100102Shim washer
1541619P09645Torx Oval-Head Screw
181602025071Switch Button
201602319023Adjusting Slide
393607000116Assembly kit
39/1223600210012O-Ring 20,0X1,0 MM
39/1342600910006Needle bearing Ø7 MM
39/1353600905158Track-Supporting Roller
39/1363600102050Shim ring
39/1383600102049Shim ring
39/213606455044Die Carrier
39/223608639036Lower Die
39/403605106109Housing
39/413603301020Round Nut
39/421900210105O-Ring 8X2,5 MM
39/443608639037Nibbling Punch
39/463603100045Tappet
39/473602311052U-Sheet
39/523603480005Wing Screw
39/623600112004Ring Gear
39/633600112005Wheel
461609280477Compression Spring
511607233340Electronics Module
51/2001609280478Contact retainer
522607202071On-Off Switch
6522607225921Charger EU GAL 1880 CV 230/14,4-18V
6522607225931Charger J GAL 1880 CV 100/14,4-18V
6522607225933Charger Rok GAL 1880 CV 220V/14,4-18V
6522607225937Charger Cn GAL 1880 CV 220V/14,4-18V
6532607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
6532607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
6532607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
8023607031880DC motor
8083601119924Nameplate
8083601119926Nameplate
8083601119927Nameplate
8083601119928Nameplate
8181600A003A0Planetary-Gear Carrier
8203607030493Lower Die Ring
93601110617Manufacturer's nameplate
911603435071Thread-forming tap. Screw
973605700214Intermediate Flange
983600200041Felt Washer
