Bosch GNA 16

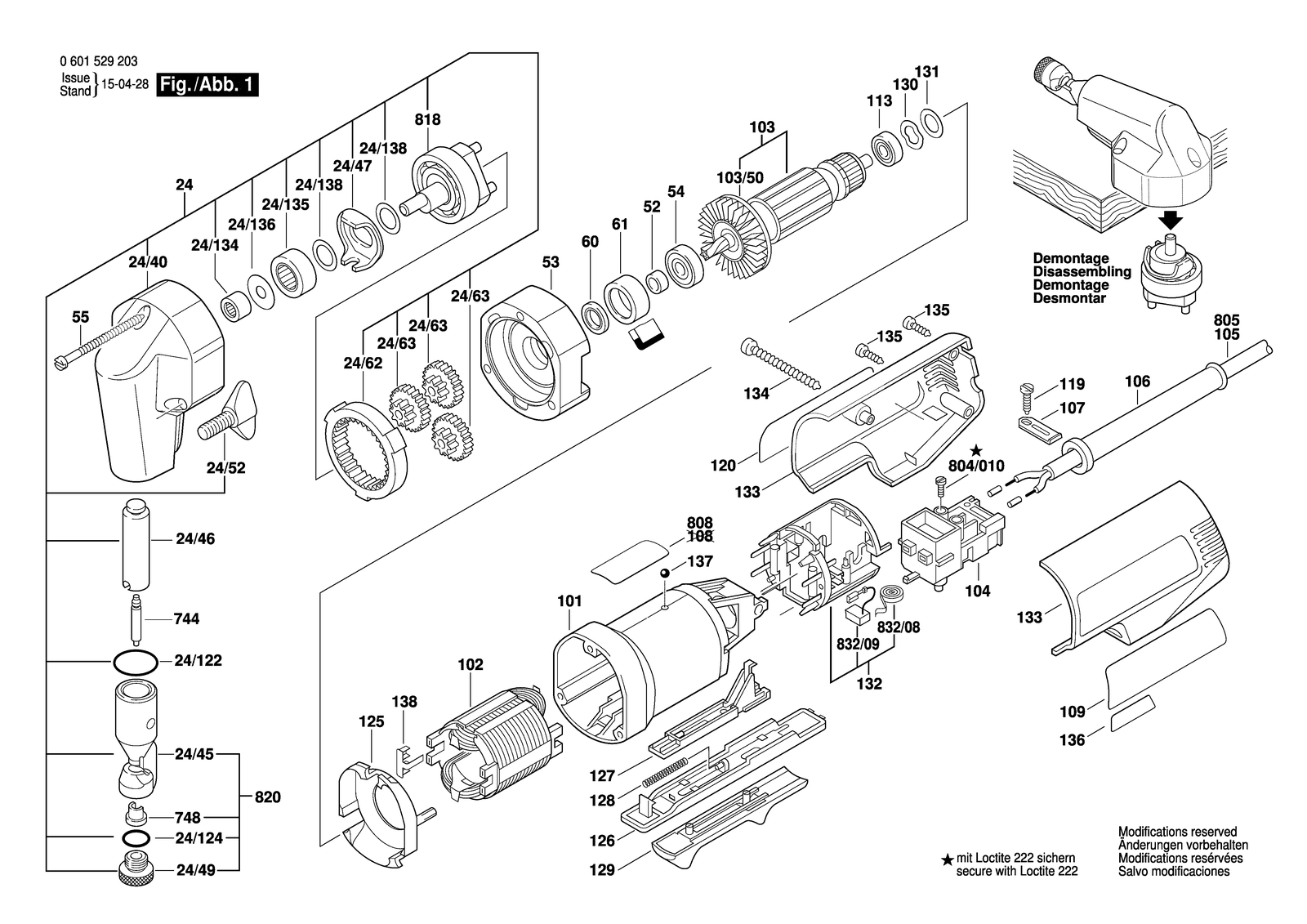

Bosch GNA 16 nibbler: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GNA 16: 70 positions on 1 sheet
Bosch GNA 16 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2605108060 | Motor Housing Blue |
| 102 | 2604220501 | Field 100-115V |
| 102 | 2604220502 | Field 220-230V |
| 102 | 2604220503 | Field 240V |
| 103 | 1604010B6W | Armature |
| 103 | 2604011072 | Armature 100V |
| 103 | 2604011073 | Armature 110-115V |
| 103 | 2604011075 | Armature 240V |
| 103/50 | 2606610081 | Fan |
| 104 | 2607200286 | Switch |
| 104 | 2607200311 | Switch |
| 105 | 1604460455 | Power supply cord CH 2,65M 2 X 1,0MM H07 Rn-F |
| 105 | 160446077E | Power supply cord |
| 105 | 1614460076 | Power supply cord CN 2,65M 2 X 1,00MM H07 Rn-F |
| 105 | 2604420013 | Cable GB 2,65M 2 X 1,0MM H05 Rn-F |
| 105 | 2604460138 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 105 | 2604460139 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 105 | 3604460047 | Power supply cord I 2,65M 2X1,0MM H07 Rn-F |
| 106 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 106 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 107 | 1601302017 | Fastening Clamp |
| 109 | 3601110379 | Manufacturer's nameplate Sunny Side |
| 113 | 2600905032 | Ball Bearing 7X19X6 |
| 119 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 120 | 3601110351 | Sticker Shadow Side |
| 125 | 2601328002 | Cover Disc |
| 126 | 2608001005 | Switch Rocker Blue |
| 127 | 2608001008 | Switch Slide |
| 128 | 2604611033 | Compression Spring |
| 129 | 2608001010 | Switch Handle Black |
| 130 | 2600150003 | Shim |
| 131 | 2600101617 | Shim 0,3 MM |
| 132 | 3604336011 | Brush Holder |
| 133 | 2605104339 | Housing Cover Blue |
| 134 | 1603490A1E | Tapping Screw |
| 135 | 2910211007 | Tapping Screw DIN 7971-BZ2,9X16 |
| 136 | 3601110206 | Sticker |
| 137 | 2603230001 | Ball Blue |
| 138 | 2601329037 | Contact Spring |
| 24 | 3607000116 | Assembly kit |
| 24/122 | 3600210012 | O-Ring 20,0X1,0 MM |
| 24/124 | 3609202093 | O-Ring 8,6X2,4 MM |
| 24/134 | 3609202085 | Needle bearing DIN 618-8X12X10-HK 0810 |
| 24/135 | 3600905158 | Track-Supporting Roller |
| 24/136 | 3609202087 | Shim ring DIN 988-8X20X0,5 |
| 24/138 | 3600102049 | Shim ring |
| 24/40 | 3609202094 | Housing |
| 24/45 | 3606455044 | Die Carrier |
| 24/46 | 3603100045 | Tappet |
| 24/47 | 3602311052 | U-Sheet |
| 24/49 | 3603301020 | Round Nut |
| 24/52 | 3603480005 | Wing Screw |
| 24/62 | 3600112004 | Ring Gear |
| 24/63 | 3600112005 | Wheel |
| 52 | 2600300047 | Seal Bushing |
| 53 | 3605700135 | Bearing Flange |
| 54 | 2600905021 | Groove ball bearing 9X24X7 |
| 54 | 2600905039 | Groove ball bearing 9X24X7 |
| 55 | 1603490A0M | Tapping Screw |
| 60 | 1600290016 | Rotary shaft lip seal |
| 61 | 3600290052 | Rubber Ring |
| 744 | 2608639027 | Nibbling Punch |
| 748 | 2608639028 | Lower Die |
| 804/010 | 3607030229 | Socket head cap screw M 3,5X7 MM |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 818 | 1600A003A0 | Planetary-Gear Carrier |
| 820 | 3607030493 | Lower Die Ring |
| 832/08 | 1604652013 | Spiral Spring |
| 832/09 | 3607014001 | Carbon-Brush Set |
