Bosch GMR 550 router: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GMR 550: 46 positions on 1 sheet

Bosch GMR 550 parts list (1 sheet)

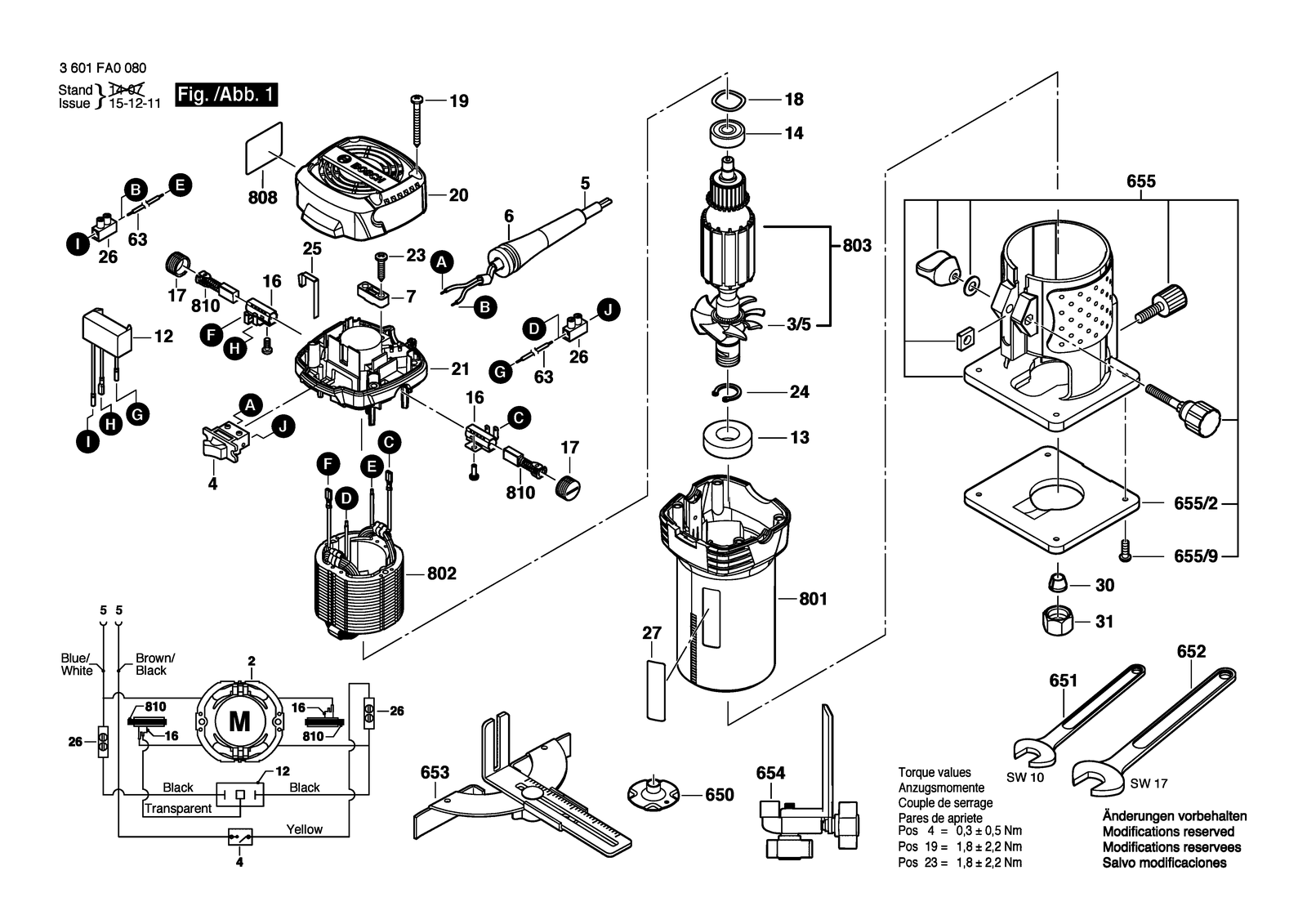

Bosch GMR 550 parts diagram, sheet 1
No.Part numberPart name
122609120600Suppression Filter
122609120610Suppression Filter
132609110435Groove ball bearing
142609110436Groove ball bearing
162609110217Brush Holder
172609100203Brush-Cover
182609110294Spring Washer
192910611093Tapping Screw
202609101190Housing Cover Blue
212609101192Chassis Blue
232910611020Tapping Screw DIN 7981-ST3,9X19-C-H
242916650006Retaining clip DIN 471-15X1-FST
252609111660Contact Strip
262609120597Terminal Block
272609135344Label
3/52609100246Fan
302609110208Contour sleeve
312609110209Nut
41607200289Switch
51604460306Power supply cord AUS 2,65M 2 X 0,75MM H05 Vv-F
51604460307Power supply cord
51604460309Power supply cord
52609120179Power supply cord GB 2,65M 2 X 0,75MM H05 Vv-F
52609120218Power supply cord J 2,65M 2 X 0,75MM Vct F
62600703017Grommet Ø6,4-Ø7,2X76 MM
62600703019Grommet Ø8,7-Ø9,6X76 MM
632609120256Connecting Cable
6502609111921Guide
6512609111740Jaw Wrench SW 10
6522609110254Jaw Wrench SW 17
6532610008113Edge Guide
6542609199030Guide
6552609199836Base
655/22609101194Base Plate
655/92609110619Screw
71611035005Cable Clip
72601035001Cable Clip
8012609199880Housing Blue
8021607000C58Stator 230V
8021607000C5AStator 115V
8021607000C5BStator 100V
8032609199884Armature set 230V
8032609199885Armature set 115V
8032609199886Armature set 100V
8102609120149Carbon-Brush Set
8102610008121Carbon-Brush Set
