Bosch GMR 1

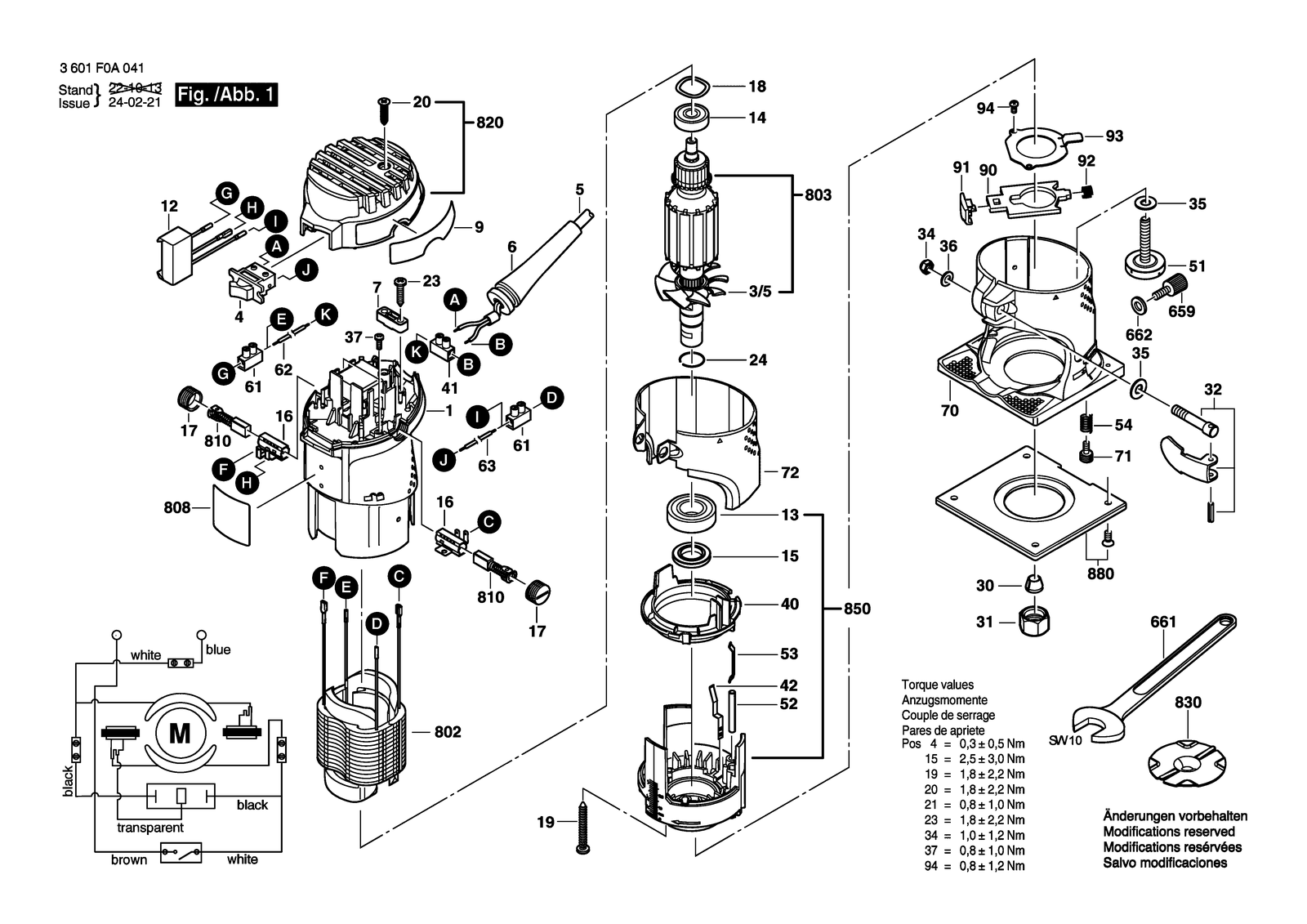

Bosch GMR 1 router: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GMR 1: 56 positions on 1 sheet
Bosch GMR 1 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610035221 | Housing |
| 12 | 2609120164 | Suppression Filter |
| 13 | 2609110435 | Groove ball bearing |
| 14 | 2609110436 | Groove ball bearing |
| 15 | 2609110253 | Self-locking nut |
| 16 | 2609110217 | Brush Holder |
| 17 | 2609100203 | Brush-Cover |
| 18 | 2609110294 | Spring Washer |
| 19 | 2910611093 | Tapping Screw |
| 20 | 2609110490 | Tapping Screw |
| 23 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 24 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 3/5 | 2609100246 | Fan |
| 30 | 2609110208 | Contour sleeve |
| 31 | 2609110209 | Nut |
| 32 | 2609199041 | Clamping Lever |
| 34 | 2609110289 | Hex Nut |
| 35 | 2609110282 | Conical Spring Washer |
| 36 | 2609110290 | Washer |
| 37 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 4 | 2609120274 | Switch |
| 40 | 2609100247 | Air-Deflector Ring |
| 41 | 2609120153 | Connecting terminal |
| 42 | 2609110297 | Contact Strap |
| 5 | 1604460306 | Power supply cord AUS 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460309 | Power supply cord |
| 51 | 2609110241 | Screw |
| 52 | 2609110245 | Pressure Spindle |
| 53 | 2609110246 | Spring Plate |
| 54 | 2609110306 | Compression Spring DIN 17223, 2076 Grade B |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 61 | 2609120177 | Terminal Block |
| 62 | 2609120180 | Connecting Cable |
| 63 | 2609120256 | Connecting Cable |
| 659 | 2609100568 | Knurled Thumbscrew |
| 661 | 2609110438 | Single-Head Eng. Wrench SW 17 |
| 662 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 7 | 2601035001 | Cable Clip |
| 70 | 2609110221 | Base Plate |
| 71 | 2609110283 | Bolt |
| 72 | 2609100356 | Housing |
| 802 | 2609120169 | Stator 230V |
| 803 | 2609120168 | Armature 220-240V |
| 808 | 2610011042 | Nameplate |
| 808 | 2610045345 | Nameplate |
| 810 | 2609120149 | Carbon-Brush Set |
| 820 | 2609199109 | Housing Cover Blue |
| 830 | 2609110223 | Guide |
| 850 | 2610008123 | Bearing Flange |
| 880 | 2610008124 | Base Plate |
| 9 | 2609130639 | Manufacturer's nameplate |
| 90 | 2609110741 | Plate |
| 91 | 2609100248 | Button |
| 92 | 2609110255 | Compression Spring |
| 93 | 2609110480 | Cover Plate |
