Bosch GML 24 V-CD radio box: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GML 24 V-CD: 34 positions on 1 sheet

Bosch GML 24 V-CD parts list (1 sheet)

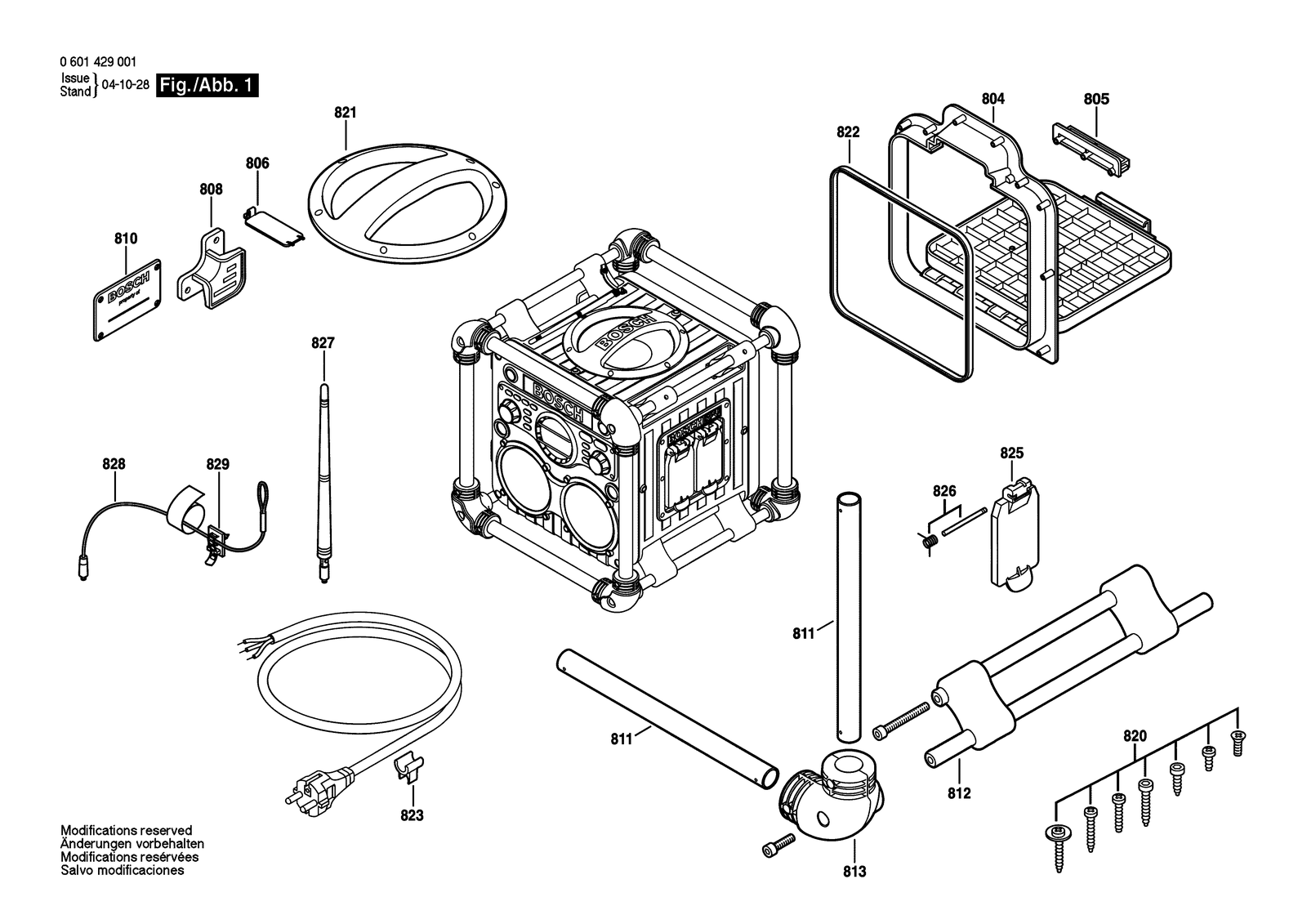

Bosch GML 24 V-CD parts diagram, sheet 1
No.Part numberPart name
8042610923574Hinge
8042610923574Hinge
8052610923575Door lock
8052610923575Door lock
8062610923576Battery Tray
8062610923576Battery Tray
8082610923578Holding Fixture
8082610923578Holding Fixture
8102610923580Sticker
8102610923580Sticker
8112610923581Longitudinal Strut
8112610923581Longitudinal Strut
8122610923582Assembly Frame
8122610923582Assembly Frame
8132610923583Elbow Piece
8132610923583Elbow Piece
8202610923590Assembly Kit
8202610923590Assembly Kit
8212610923591Handle
8212610923591Handle
8222610925221Seal
8222610925221Seal
8232610925223Cable Cleat
8232610925223Cable Cleat
8252610924256Protective Flap
8252610924256Protective Flap
8262610924257Assembly Kit
8262610924257Assembly Kit
8272610925217Rod Antenna
8272610925217Rod Antenna
8282610925218Antenna
8282610925218Antenna
8292610925219Assembly Kit
8292610925219Assembly Kit
