Bosch GML 10,8 V-LI

Bosch GML 10,8 V-LI power radio box: exploded parts diagram, 1 sheet, 7 positions. Spare parts with part numbers, availability and prices.

execution 3601D29200
other executions3601D29201also sold asGPB 12V-10
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…
All parts of Bosch GML 10,8 V-LI: 7 positions on 1 sheet

Bosch GML 10,8 V-LI parts list (1 sheet)

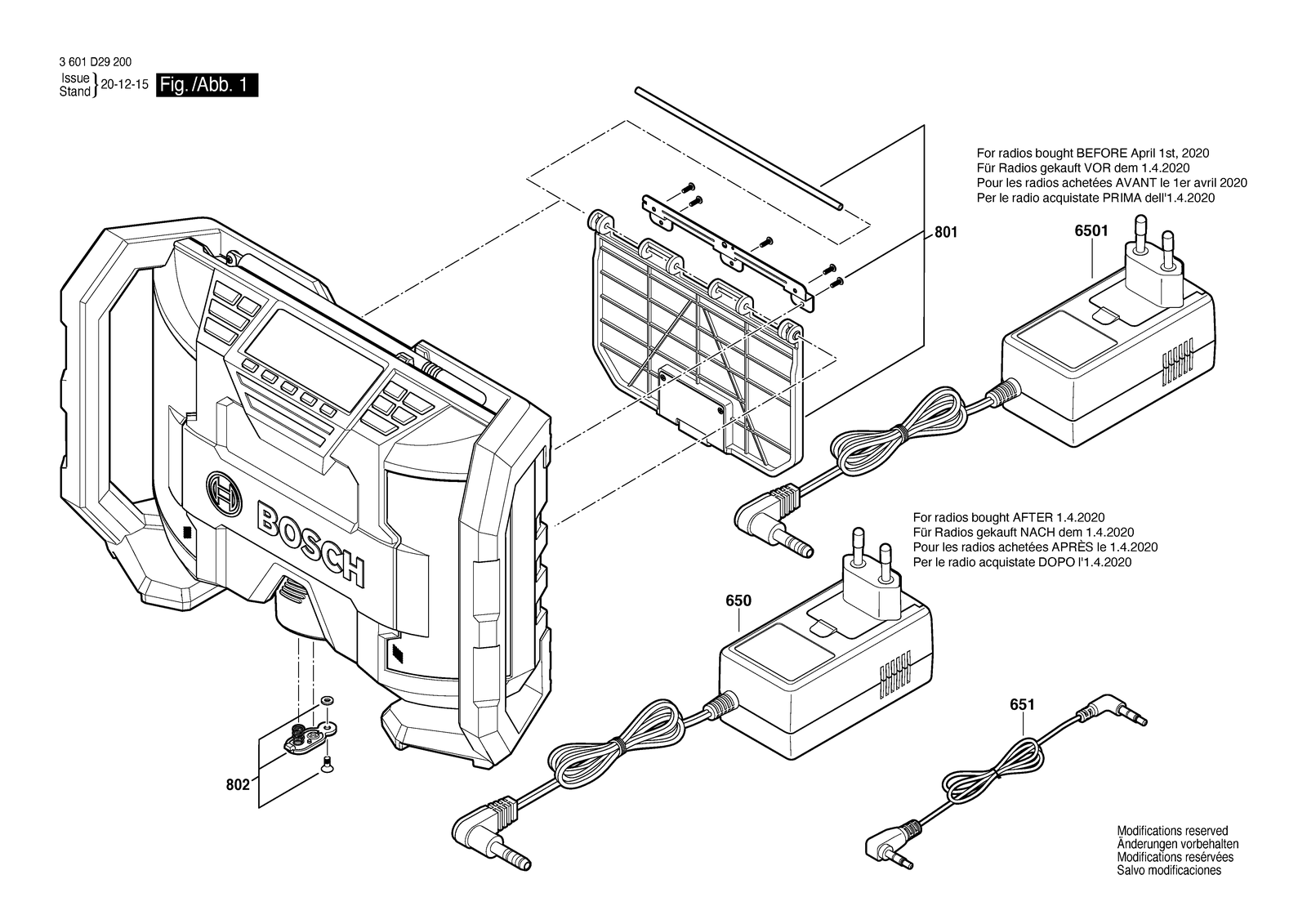

Bosch GML 10,8 V-LI parts diagram, sheet 1
No.Part numberPart name
6501600A000ZZPower Supply Aus
6501600A022JEPower Supply EU and UK
65011600A000ZTPower Supply EU
65011600A000ZUPower Supply Gb
8011600A00103Hinge Flap
8011619PB2161Hinge Flap
8021600A00109Battery Protective Cover
