Bosch GMF 1400 CE

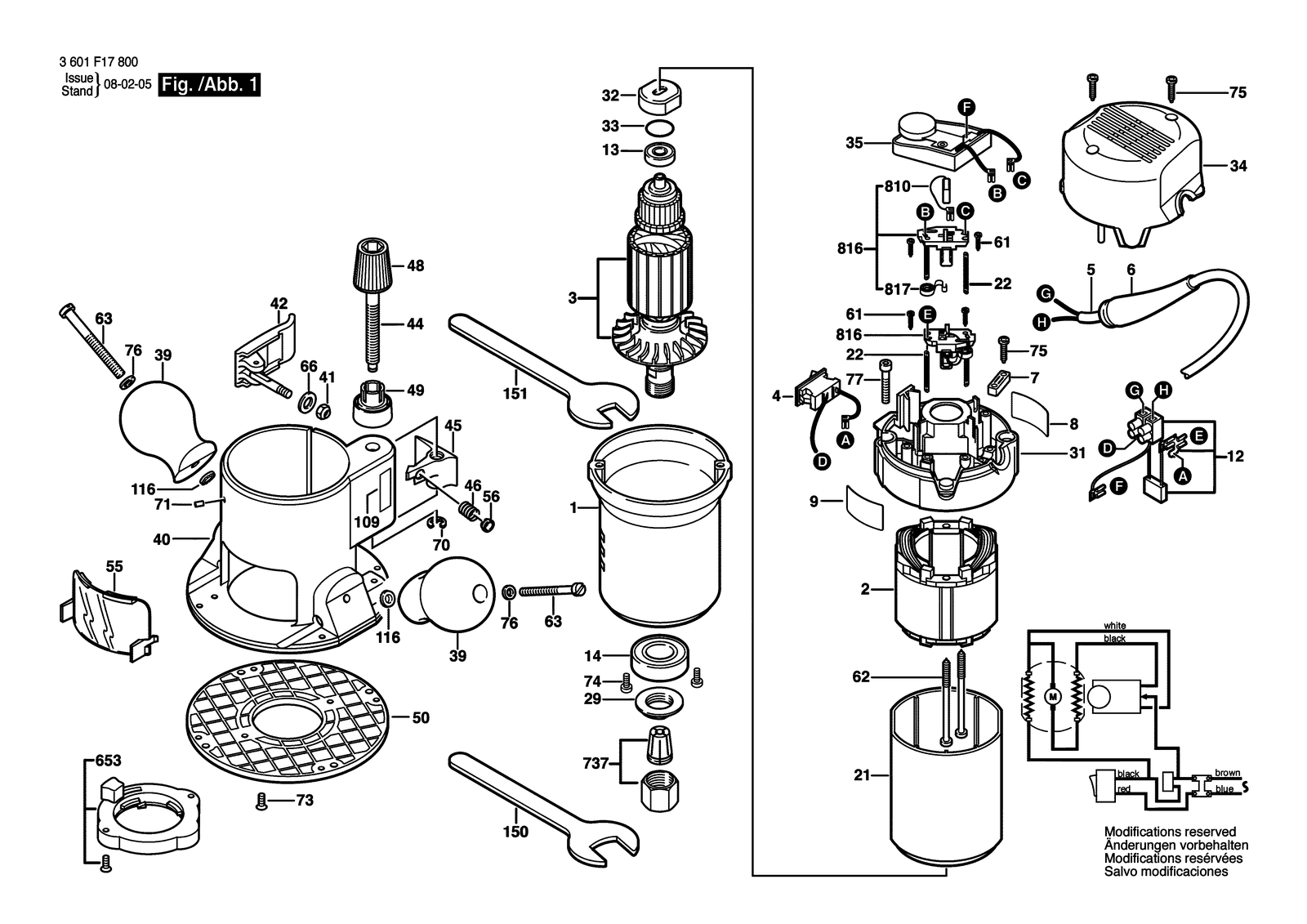

Bosch GMF 1400 CE router: exploded parts diagram, 2 sheets, 103 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GMF 1400 CE: 103 positions on 2 sheets
Bosch GMF 1400 CE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610922584 | Motor Housing |
| 109 | 2610935604 | Manufacturer's nameplate |
| 110 | 2610912594 | Protection cover |
| 111 | 2610990022 | Screw |
| 112 | 2610914852 | Plug |
| 116 | 2916079032 | Serrated Lock-Washer |
| 117 | 2610994492 | Pin |
| 118 | 2610996143 | Screw |
| 119 | 2610913441 | Screw |
| 12 | 2610938252 | Suppression Filter |
| 120 | 2610912597 | Handle |
| 121 | 2610996107 | Handle |
| 122 | 2610914639 | Disc |
| 123 | 2610912598 | Compression Spring |
| 124 | 3605510548 | Bellows |
| 125 | 2610915161 | Screw |
| 127 | 2610997099 | Cover Plate |
| 13 | 3600905513 | Ball guide |
| 130 | 2916650003 | Spring retaining ring DIN 471-12X1-FST |
| 131 | 1900210111 | O-Ring 12X3 MM |
| 14 | 1600900088 | Ball Bearing |
| 144 | 3603450504 | Lock Bolt |
| 145 | 3604651503 | Lock Spring |
| 146 | 3602000510 | Locking Lever |
| 147 | 2910641122 | Oval-Head Screw DIN 7985-M4X12-4.8-H |
| 148 | 2916680005 | Spring Lock Washer B 4 DIN 127 |
| 150 | 2610992417 | Single-Head Eng. Wrench |
| 151 | 2610991388 | Chuck Wrench |
| 155 | 2610912599 | Chip Deflector |
| 156 | 2610935605 | Manufacturer's nameplate |
| 157 | 2610997094 | Pointer |
| 158 | 2610912600 | Rod |
| 159 | 1613480008 | Wing Screw M6X20 MM |
| 160 | 2610912601 | Knob |
| 161 | 2610068154 | O-Ring |
| 170 | 3600232503 | Depth-Gauge |
| 171 | 2600590006 | Ratchet Cap |
| 172 | 3603415556 | Shoulder Screw M4 |
| 173 | 3916060500 | Spring Washer |
| 183 | 2918660004 | Plain Washer DIN 126-9-A2 |
| 184 | 1613300006 | Hex Nut M6 |
| 186 | 2610915060 | Clamping Lever |
| 2 | 1619P05316 | Field 120V |
| 2 | 2610941203 | Field 230V |
| 21 | 2610009656 | Insulating Sleeve |
| 22 | 1604477005 | Blade terminal |
| 29 | 2610993582 | Nut |
| 3 | 1619P05216 | Armature 120V |
| 3 | 2610941202 | Armature 230V |
| 31 | 2610941007 | Rear Housing Section |
| 32 | 2610991375 | Bearing Holder |
| 33 | 1900210115 | O-Ring |
| 34 | 2610941008 | Set Of Handles |
| 35 | 1607233135 | Speed governor 230V |
| 35 | 1607233136 | Speed governor 120V |
| 39 | 2610991387 | Handle |
| 4 | 2610016526 | On-Off Switch |
| 40 | 2610925365 | Base |
| 41 | 1613300006 | Hex Nut M6 |
| 42 | 2610915060 | Clamping Lever |
| 44 | 2610922527 | Rod |
| 45 | 2610991385 | Lever |
| 46 | 2610991371 | Spring |
| 48 | 2610993576 | Adjusting Device |
| 49 | 2610993577 | Ring |
| 5 | 2610935598 | Power supply cord |
| 5 | 2610935840 | Power supply cord CH 4,15M 2X1,50 H07RN-F |
| 5 | 2610935841 | Power supply cord GB 3,50M 2 X 1,50MM H07 Rn-F |
| 5 | 2610936548 | Power supply cord GB 3,50M 2 X 1,50MM H07 Rn-F |
| 50 | 2610928164 | Cover Plate |
| 55 | 2610991389 | Chip Deflector |
| 56 | 2610991372 | Cover |
| 6 | 3600703508 | Grommet Ø 9,4 MM |
| 61 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 62 | 2610991306 | Tapping Screw |
| 63 | 2910011219 | Socket head cap screw DIN 84-BM6X70-5.8 |
| 653 | 2610991370 | Guide Sleeve |
| 66 | 2918660004 | Plain Washer DIN 126-9-A2 |
| 7 | 2601035001 | Cable Clip |
| 70 | 2610996054 | Retaining snap ring |
| 71 | 2610994492 | Pin |
| 73 | 2610915161 | Screw |
| 737 | 2608570103 | Collet 6 MM |
| 737 | 2608570104 | Collet 1/4" |
| 737 | 2608570105 | Collet 8 MM |
| 737 | 2608570106 | Collet 3/8" |
| 737 | 2608570107 | Collet 12 MM |
| 737 | 2608570108 | Collet 1/2" |
| 74 | 2910641120 | Oval-Head Screw |
| 75 | 2610910566 | Tapping Screw |
| 76 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 77 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 8 | 2610935599 | Nameplate |
| 8 | 2610935837 | Nameplate |
| 8 | 2610935838 | Nameplate |
| 8 | 2610935839 | Nameplate |
| 8 | 2610936606 | Nameplate |
| 801 | 2610924454 | Base |
| 810 | 2610007957 | Carbon-Brush Set |
| 816 | 3604336506 | Brush Holder |
| 817 | 3604652501 | Spring |
| 826 | 2610997115 | Base |
| 9 | 2610935603 | Reference Plate |
