Bosch GLM 100 C

Bosch GLM 100 C distance measuring unit: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLM 100 C: 14 positions on 1 sheet

Bosch GLM 100 C parts list (1 sheet)

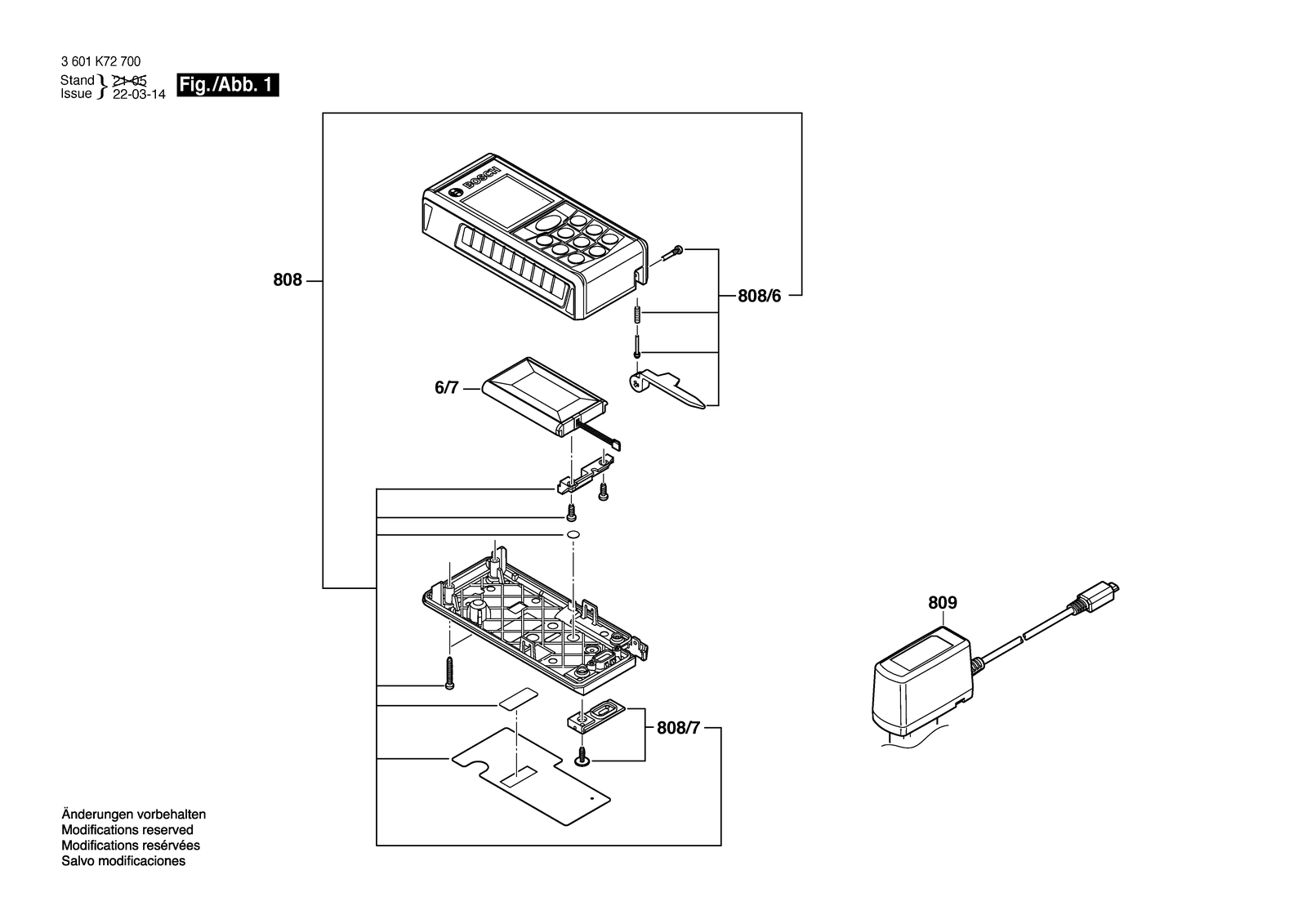

Bosch GLM 100 C parts diagram, sheet 1
No.Part numberPart name
6/72609120417Accumulator
8082609199682Housing Set
8082609199683Battery Pack Li, 1,25 Ah, 4,7 Wh
8082609199684Battery Pack Li, 1,25 Ah, 4,7 Wh
8082609199698Battery Pack Li, 1,25 Ah, 4,7 Wh
808/62609169030Fastening parts kit
808/72609169032Cover
8092609120420Battery Charger EU 3,7V 3H
8092609120421Battery Charger GB 230V 3,7V 3H
8092609120422Battery Charger USA 3,7V 3H
8092609120424Battery Charger J 3,7V 3H
8092609120429Battery Charger KR 3,7V 3H
8092609120430Battery Charger AUS 3,7V 3H
8092609120495Battery Charger CN 220V
