Bosch GLL330-80CG

Bosch GLL330-80CG laser level: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLL330-80CG: 12 positions on 1 sheet

Bosch GLL330-80CG parts list (1 sheet)

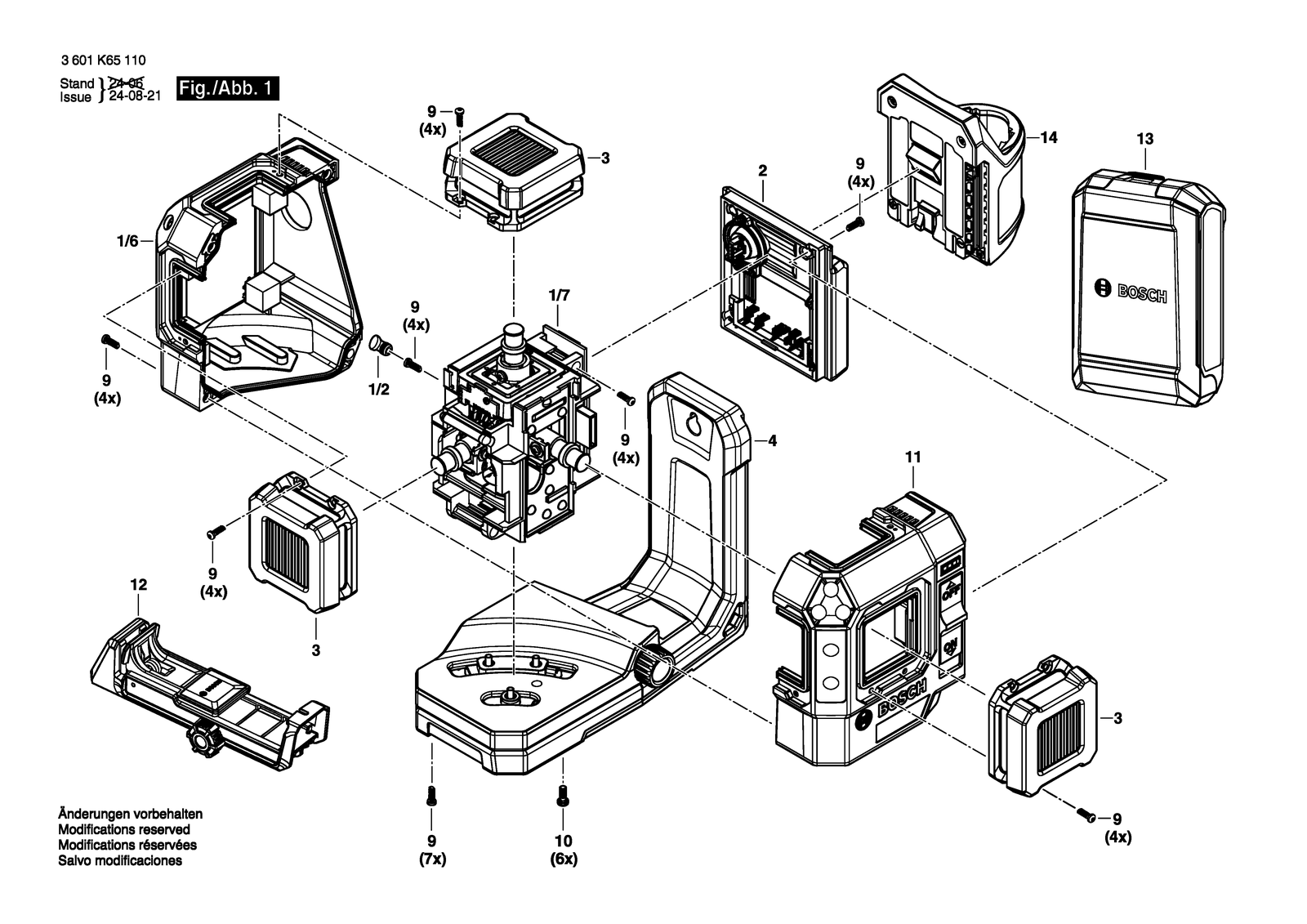

Bosch GLL330-80CG parts diagram, sheet 1
No.Part numberPart name
1/216058066DFPlug
1/61600A02A62Housing Assembly
1/716058066CMPendulum assembly
101618C00292Tapping Screw
111600A032S1Housing Assembly
121600A02G8TMounting Tool
131600A02G8SBattery Holder
141600A02G8RBattery Holder
21600A02A63Battery Holder
31600A02A66Turret
41600A031FFMounting Base
916058066DXPan head screw
