Bosch GLL 3-300 laser level: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLL 3-300: 11 positions on 1 sheet

Bosch GLL 3-300 parts list (1 sheet)

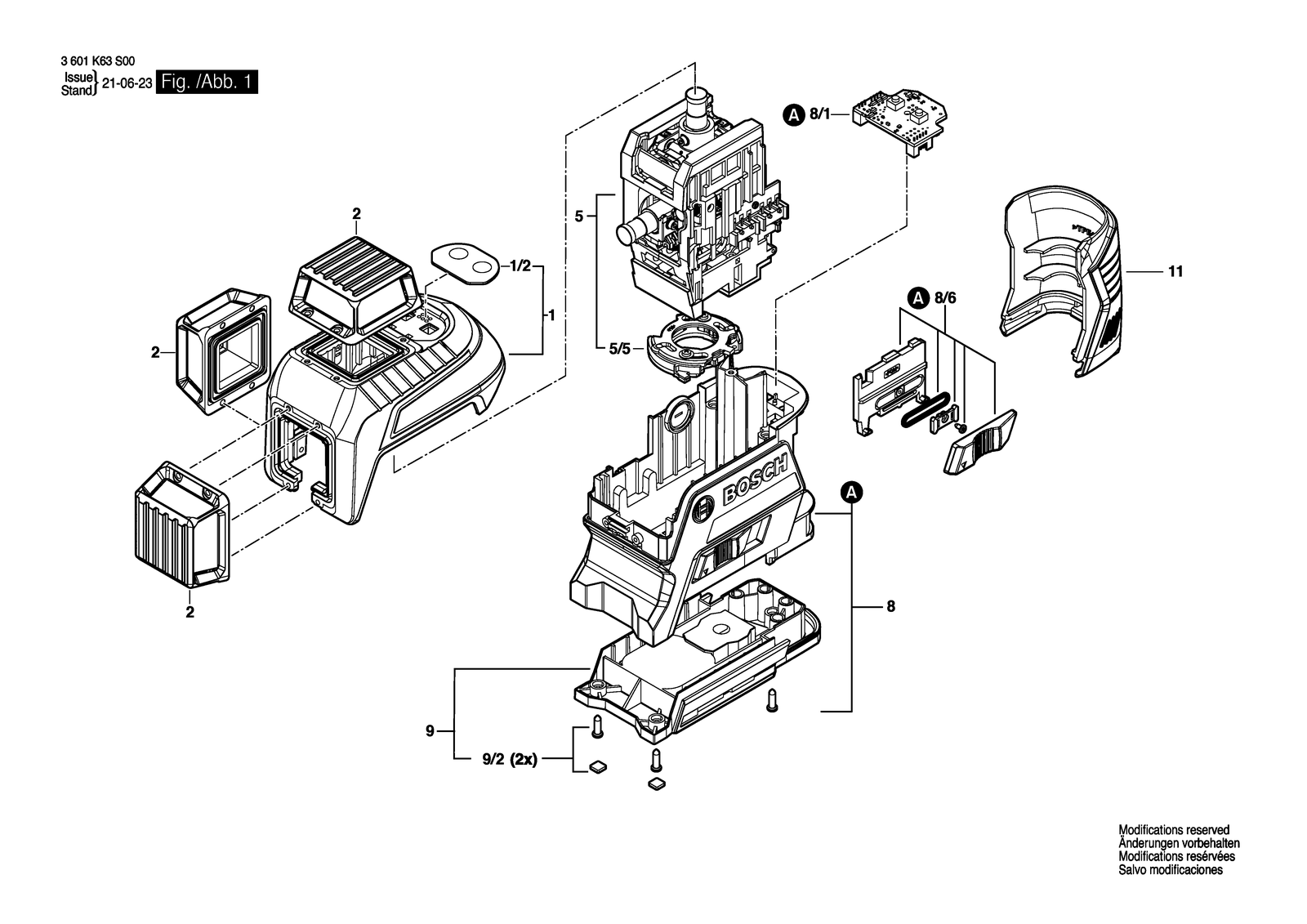

Bosch GLL 3-300 parts diagram, sheet 1
No.Part numberPart name
11600A00NM0Assembly
1/21600A00NL9Key Panel
111600A00NM5Battery Cover
21600A00NM8Assembly
51600A00NP3Pendulum assembly
5/51600A016ZTAssembly
81600A00NP9Assembly
8/11600A00NK3Printed-Board Assembly
8/61600A00NM4Linkage
91600A00RK9Assembly
9/21618C0139JRubber Pad
