Bosch GLL 3-15 X

Bosch GLL 3-15 X laser level: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLL 3-15 X: 38 positions on 1 sheet

Bosch GLL 3-15 X parts list (1 sheet)

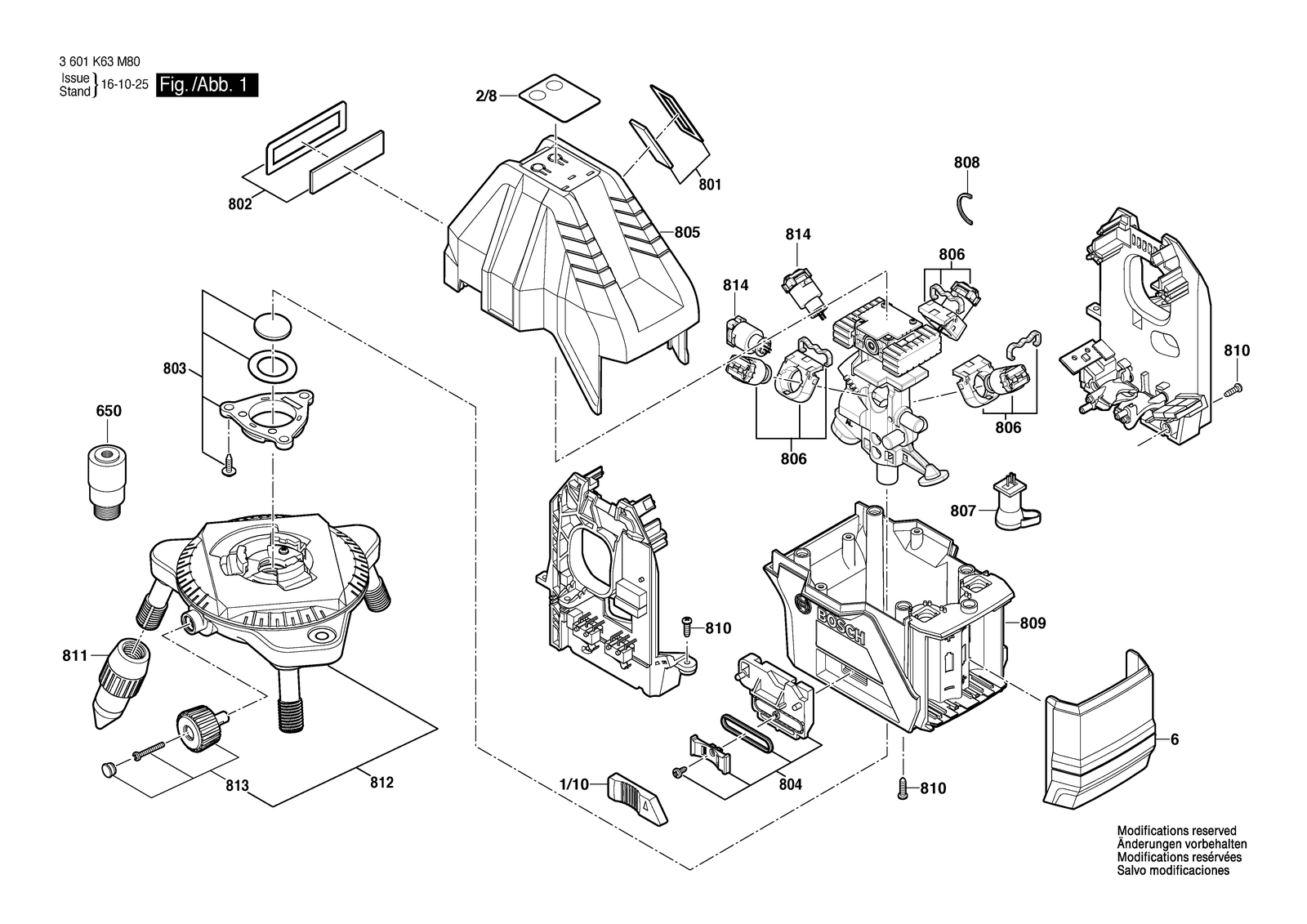

Bosch GLL 3-15 X parts diagram, sheet 1
No.Part numberPart name
1/101618C0101FSlide Switch
1/101618C0101FSlide Switch
2/81618C0103AKey Panel
2/81618C0106FKey Panel
2/81618C0106FKey Panel
61618C0101EHousing
61618C0101EHousing
6501618C0142ANut
6501618C0142ANut
8011618C0110EWindow
8011618C0110EWindow
8021618C0110FWindow
8021618C0110FWindow
8031618C0110GWindow
8031618C0110GWindow
8041618C0110HSwitch
8041618C0110HSwitch
8051618C0111VHousing Cover
8051618C0111WHousing Cover
8051618C0111WHousing Cover
8061618C0110KLaser module
8061618C0110KLaser module
8071618C0110LLaser module
8071618C0110LLaser module
8081618C0110MCounterweight
8081618C0110MCounterweight
8091618C0110NHousing Base
8091618C0110NHousing Base
8101618C0110RSet of screws
8101618C0110RSet of screws
8111618C0110SHousing Assembly
8111618C0110SHousing Assembly
8121618C0104KAssembly
8121618C0104KAssembly
8131618C0111YAdjustment Knob
8131618C0111YAdjustment Knob
8141618C0144RLaser module
8141618C0144RLaser module
