Bosch GLF 55-6

Bosch GLF 55-6 router: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLF 55-6: 48 positions on 1 sheet

Bosch GLF 55-6 parts list (1 sheet)

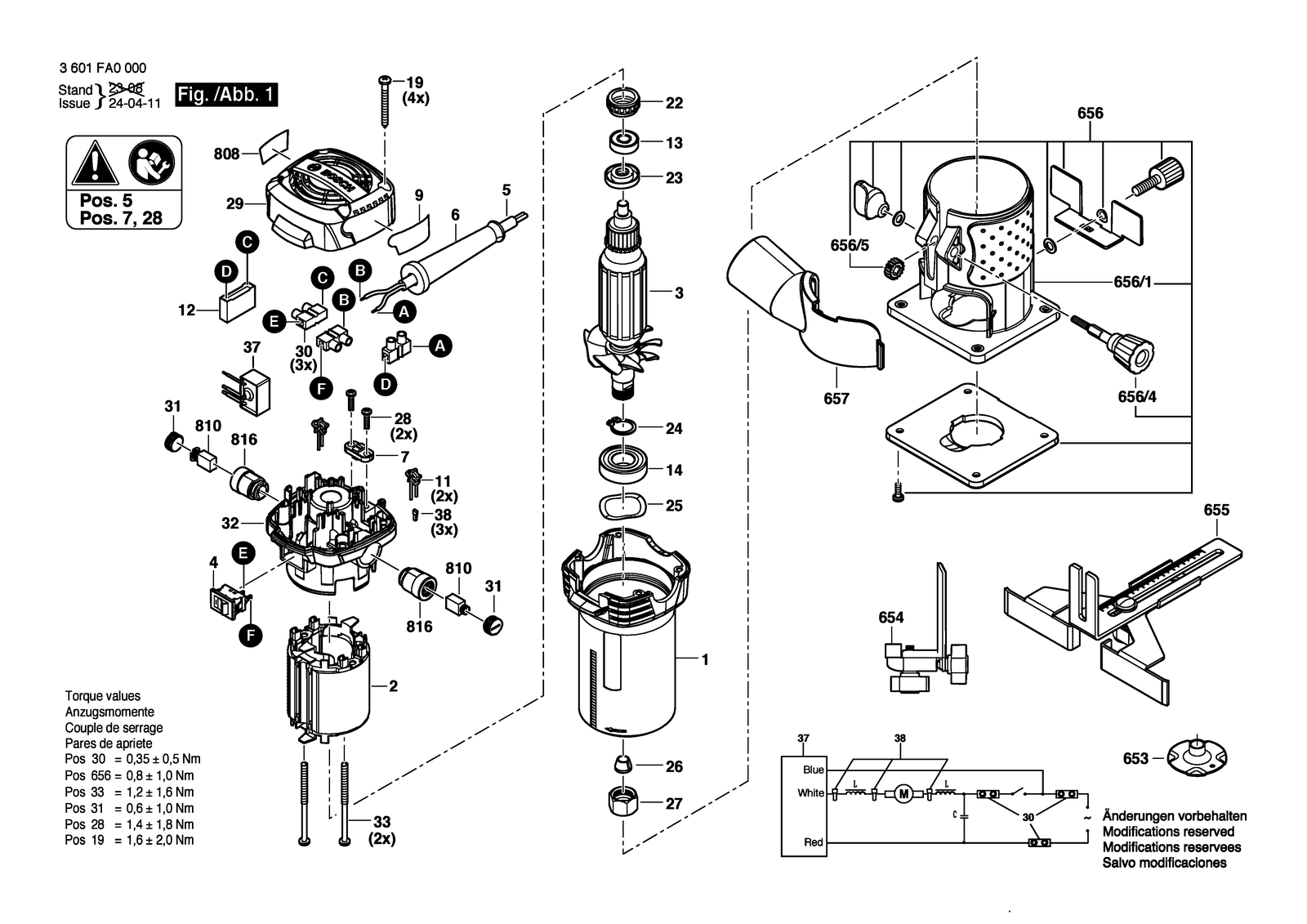

Bosch GLF 55-6 parts diagram, sheet 1
No.Part numberPart name
11619PB2368Motor Housing
111619PB5535Inductor
121619PB3048Suppression Capacitor
131619PB3049Groove ball bearing
141619PB3050Groove ball bearing
191619PB3052Screw
21619PB3028Field assembly 220~240V Ø55*50
221619PB3053Bearing Sleeve
231619PB3054Backup ring
241619PB3055Spacer Ring
251619PB3056Corrugated Washer
261619PB3057Collet 1/4 INCH 65MN
261619PB3058Collet 6MM 65MN
271619PB3059Union Nut
281619PB3060Clamp Screw
291619PB2366Cover
31619PB3031Armature 220~240V Ø31.7*50
31619PB3148Armature 220~240V Ø31.7*50 FOR 1/4" Collect Axis
301619PB3061Terminal Block
311619PB3062Brush-Cover
321619PB2367Motor Housing
331619PB3063Screw
371619PB4604Printed Circuit Board
381619PB5619Soldering Terminal
41619PB3034Switch
51619PB3036Power supply cord Gb
51619PB3037Power supply cord EU
51619PB3043Power supply cord Aus
51619PC1713Power supply cord Ch
51619PC1716Power supply cord Rok
61619PB3045Grommet
6531619PB2378Guide Piece
6541619PB3022End stop
6551619PB3021Edge Guide
6561619PC1978Base
656/11619PC1688Base
656/41619PB7225Knob
656/51619PB6976Gear
6571619PB7222Dust Extraction
71619PB3046Clip
8081619PC1971Nameplate
8081619PC1972Nameplate
8081619PC1973Nameplate
8081619PC1975Nameplate
8081619PC1976Nameplate
8101619PB3047Carbon-Brush Set
8161619PB3051Brush Holder
91619PC1693Manufacturer's nameplate GLF 55-6
