Bosch GLF 55-25

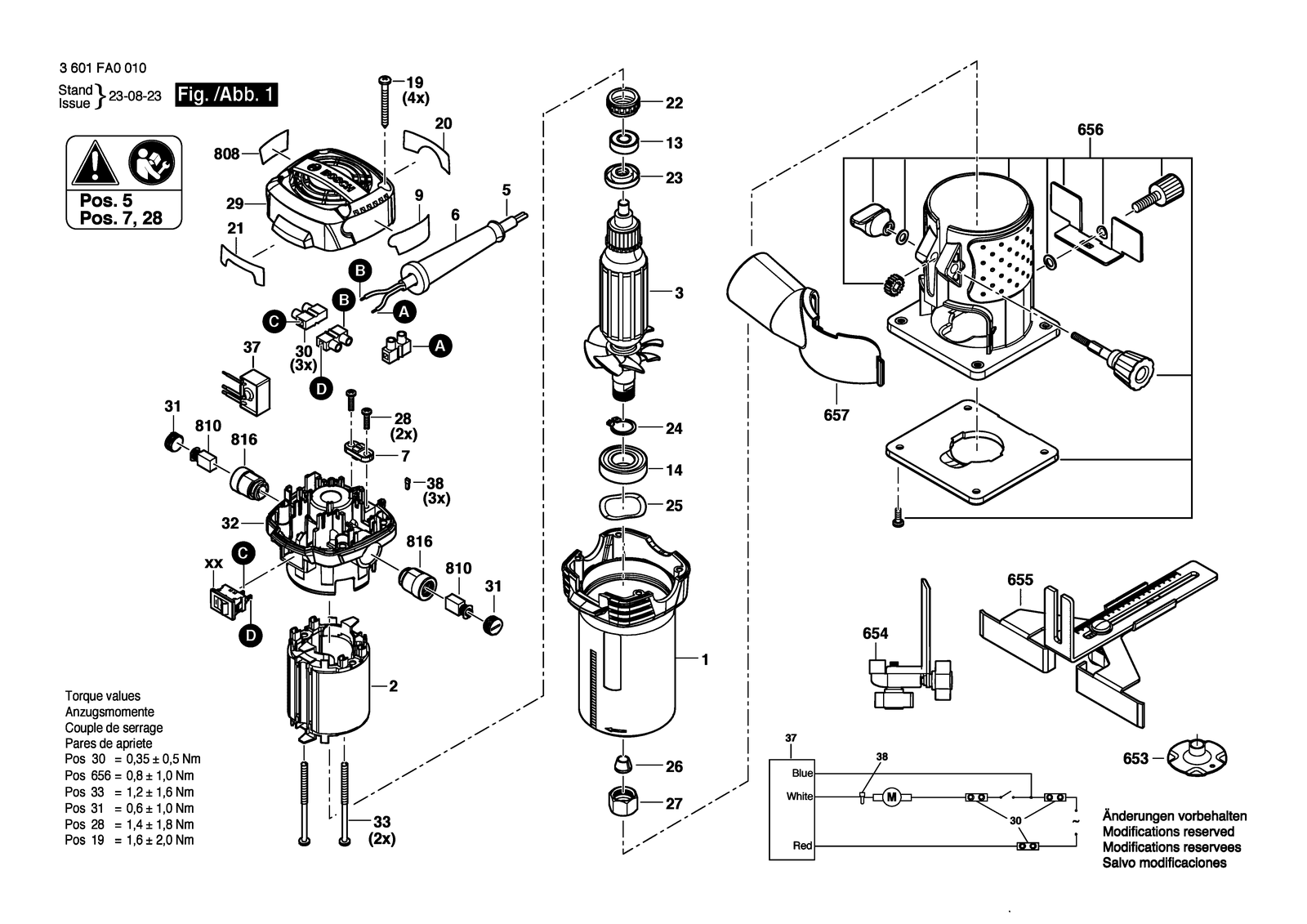

Bosch GLF 55-25 router: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLF 55-25: 34 positions on 1 sheet
Bosch GLF 55-25 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB2368 | Motor Housing |
| 13 | 1619PB3049 | Groove ball bearing |
| 14 | 1619PB3050 | Groove ball bearing |
| 19 | 1619PB3052 | Screw |
| 2 | 1619PB3029 | Field assembly 115~127V Ø55*50 |
| 20 | 1619PC1702 | Warning Label |
| 21 | 1619PC1703 | Warning Label |
| 22 | 1619PB3053 | Bearing Sleeve |
| 23 | 1619PB3054 | Backup ring |
| 24 | 1619PB3055 | Spacer Ring |
| 25 | 1619PB3056 | Corrugated Washer |
| 26 | 1619PB3057 | Collet 1/4 INCH 65MN |
| 27 | 1619PB3059 | Union Nut |
| 28 | 1619PB3060 | Clamp Screw |
| 29 | 1619PC1712 | Cover |
| 3 | 1619PC1982 | Armature 120V, 1/4' Collet |
| 30 | 1619PB3061 | Terminal Block |
| 31 | 1619PB3062 | Brush-Cover |
| 32 | 1619PB2367 | Motor Housing |
| 33 | 1619PB3063 | Screw |
| 37 | 1619PC1690 | Printed Circuit Board |
| 38 | 1619PB5619 | Soldering Terminal |
| 5 | 1619PC1689 | Power supply cord Usa |
| 6 | 1619PB3045 | Grommet |
| 653 | 1619PB2378 | Guide Piece |
| 654 | 1619PB3022 | End stop |
| 655 | 1619PB3021 | Edge Guide |
| 656 | 1619PC1978 | Base |
| 657 | 1619PB7222 | Dust Extraction |
| 7 | 1619PB3046 | Clip |
| 808 | 1619PC1974 | Nameplate |
| 810 | 1619PB3047 | Carbon-Brush Set |
| 816 | 1619PB3051 | Brush Holder |
| 9 | 1619PC1694 | Manufacturer's nameplate GLF55-25 |
