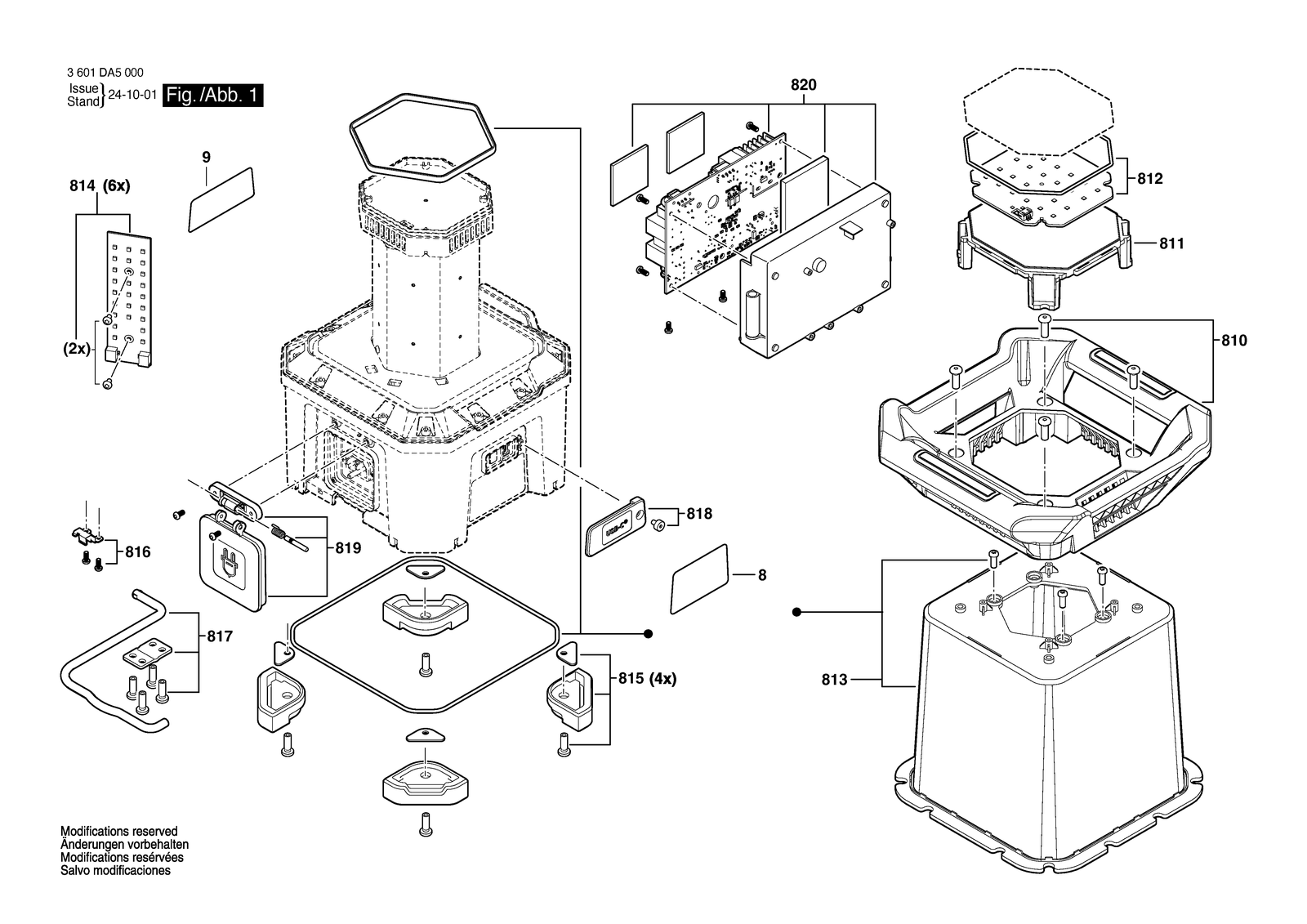

Bosch GLA 18VH-7500 hw-battery-lamp: exploded parts diagram, 1 sheet, 15 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GLA 18VH-7500: 15 positions on 1 sheet
Bosch GLA 18VH-7500 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 8 | 1619PS1199 | Nameplate |
| 8 | 1619PS1200 | Nameplate |
| 810 | 1619PS1203 | Carrying Handle |
| 811 | 1619PS1204 | Protective Cover |
| 812 | 1619PS1205 | Electronic Module |
| 813 | 1619PS1206 | Protective Cover |
| 814 | 1619PS1207 | Electronic Module |
| 815 | 1619PS1208 | Foot |
| 816 | 1619PS1209 | Locking hook |
| 817 | 1619PS1210 | Hook |
| 818 | 1619PS1211 | Protective Cover |
| 819 | 1619PS1212 | Protective Cover |
| 820 | 1619PS1213 | Electronic Module |
| 9 | 1619PS1201 | Manufacturer's nameplate |
| 9 | 1619PS1202 | Manufacturer's nameplate |
