Bosch GKT 18V-52 GC
Bosch GKT 18V-52 GC circular saw: exploded parts diagram, 3 sheets, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

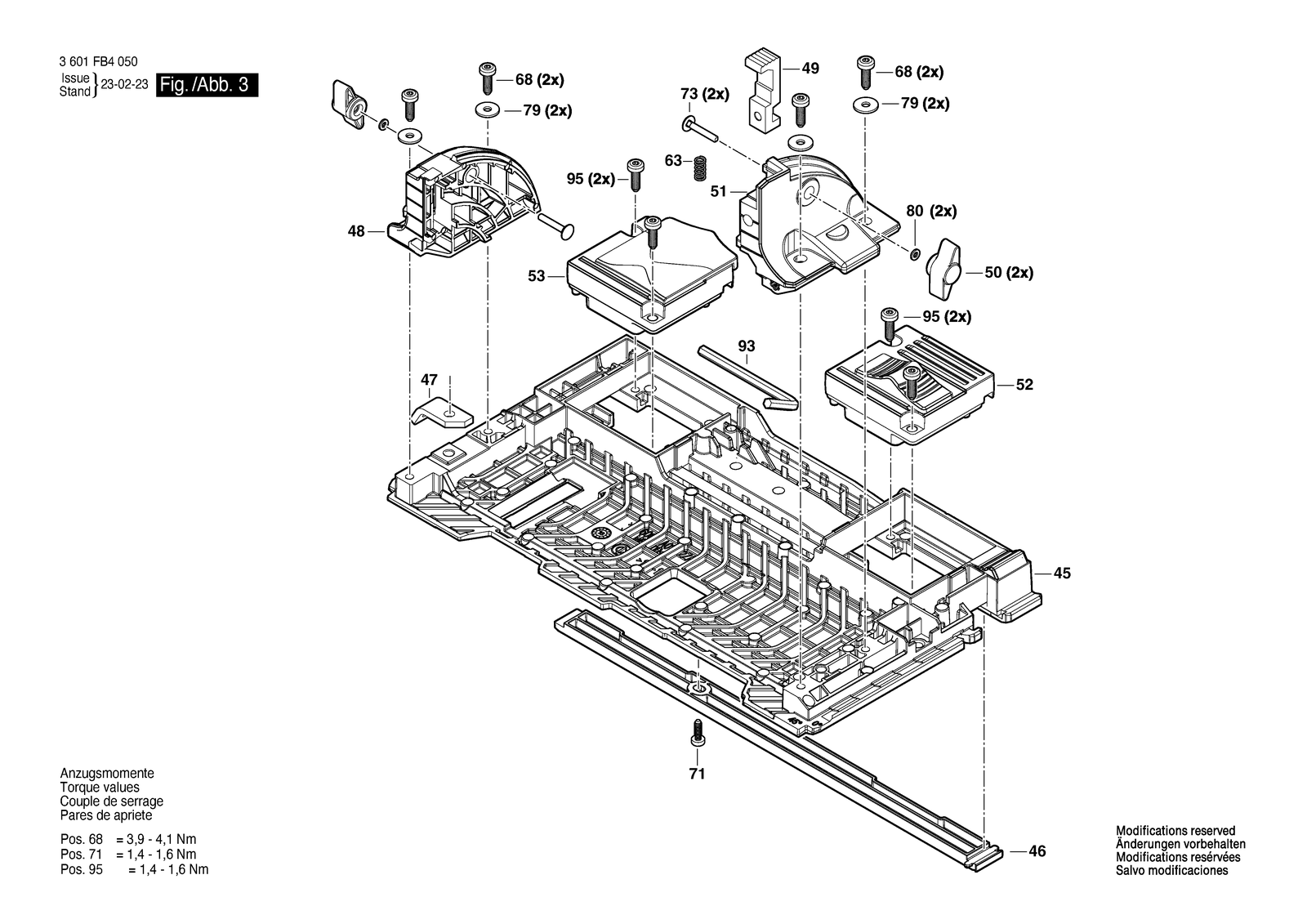

All parts of Bosch GKT 18V-52 GC: 79 positions on 3 sheets
Bosch GKT 18V-52 GC parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/1 | 160580664R | Handle |
| 1/10 | 2602026201 | Selector Switch |
| 1/11 | 2602123010 | Rocker |
| 1/12 | 2603101070 | Locking pin |
| 1/17 | 2607202386 | Switch |
| 1/54 | 1600210094 | O-Ring |
| 1/55 | 1600A01UT1 | Shim Plate |
| 1/60 | 1600A019DG | Compression Spring |
| 1/61 | 2604618015 | Compression Spring |
| 1/64 | 2604618014 | Compression Spring |
| 1/66 | 2603490022 | Screw 4X16 |
| 1/67 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 1/7 | 2602026200 | Locking Slide |
| 1/9 | 2602051004 | Locking Lever |
| 13 | 1600A015F8 | Data cable |
| 14 | 1600A013D8 | Connecting Cable |
| 15 | 1600A013D5 | Connecting Cable |
| 16 | 1600A0161F | Contact Plate |
| 18 | 16072335GD | Electronic Module |
| 19 | 1600A016CZ | Electronics Module |
| 20 | 1600A016ML | Cover Panel |
| 21 | 1600A00M52 | Rubber Sponge |
| 22 | 1600A0135N | Cover |
| 23/2 | 160702266Y | DC motor |
| 23/23 | 160580664W | Gear Housing |
| 23/26 | 1600A01305 | Rejection Slide |
| 23/30 | 3600210136 | O-Ring 42,0X1,0 MM |
| 23/31 | 1600A0131C | Shim |
| 23/31 | 1600A019L6 | Shim |
| 23/31 | 1600A019L7 | Shim |
| 23/31 | 1600A019L8 | Shim |
| 23/35 | 1600A0213M | Jack Shaft |
| 23/37 | 1600A0213N | Output Shaft |
| 23/64 | 2604618014 | Compression Spring |
| 23/70 | 1619X05274 | Screw |
| 23/71 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 23/91 | 2605719049 | Clamping-Flange |
| 23/92 | 2605719051 | Clamping-Flange |
| 23/94 | 1600A01H00 | Socket head cap screw |
| 29 | 1600A015MM | Shim |
| 3 | 16072335F7 | Electronic Module |
| 33 | 1600A01300 | Guard Plate |
| 34 | 2605510323 | Protection cover |
| 39 | 1603123067 | Bearing bolt |
| 4 | 1605132182 | Housing Cover |
| 40 | 160030011H | Bushing |
| 41 | 2605730067 | Suction Socket |
| 42 | 160465101C | Coiled Spring |
| 43 | 2601010079 | Damper |
| 44 | 2600460059 | Depth gauge |
| 45 | 1600A012ZA | Base Plate |
| 46 | 2601073020 | Cover |
| 47 | 1600A018TN | Filling Piece |
| 48 | 2605730068 | Carrier |
| 49 | 1600A019N6 | Angle Lever |
| 5 | 1605132181 | Housing Base |
| 50 | 2610387875 | Hex Nut |
| 51 | 1600A012ZD | Carrier |
| 52 | 2601010082 | Setting Device |
| 53 | 1600A012ZH | Setting Device |
| 6 | 1600A015X0 | Support |
| 62 | 1609280477 | Compression Spring |
| 63 | 160461200R | Compression Spring |
| 65 | 1600A018U8 | Torsion Spring |
| 654 | 160541101V | Dust Bag |
| 66 | 2603490022 | Screw 4X16 |
| 67 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 68 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 69 | 2603410051 | Thread-forming tap. Screw |
| 71 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 72 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 73 | 2910281209 | Round-Head Bolt DIN 603-M6X40 |
| 74 | 160343003T | Screw |
| 78 | 2916660033 | Spring retaining ring |
| 79 | 2916011892 | Plain Washer DIN 9021-B 4,3-ST |
| 80 | 2918660002 | Washer |
| 808 | 160111A800 | Nameplate |
| 93 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 95 | 160343509S | Torx Oval-Head Screw |
