Bosch GKS 75 S

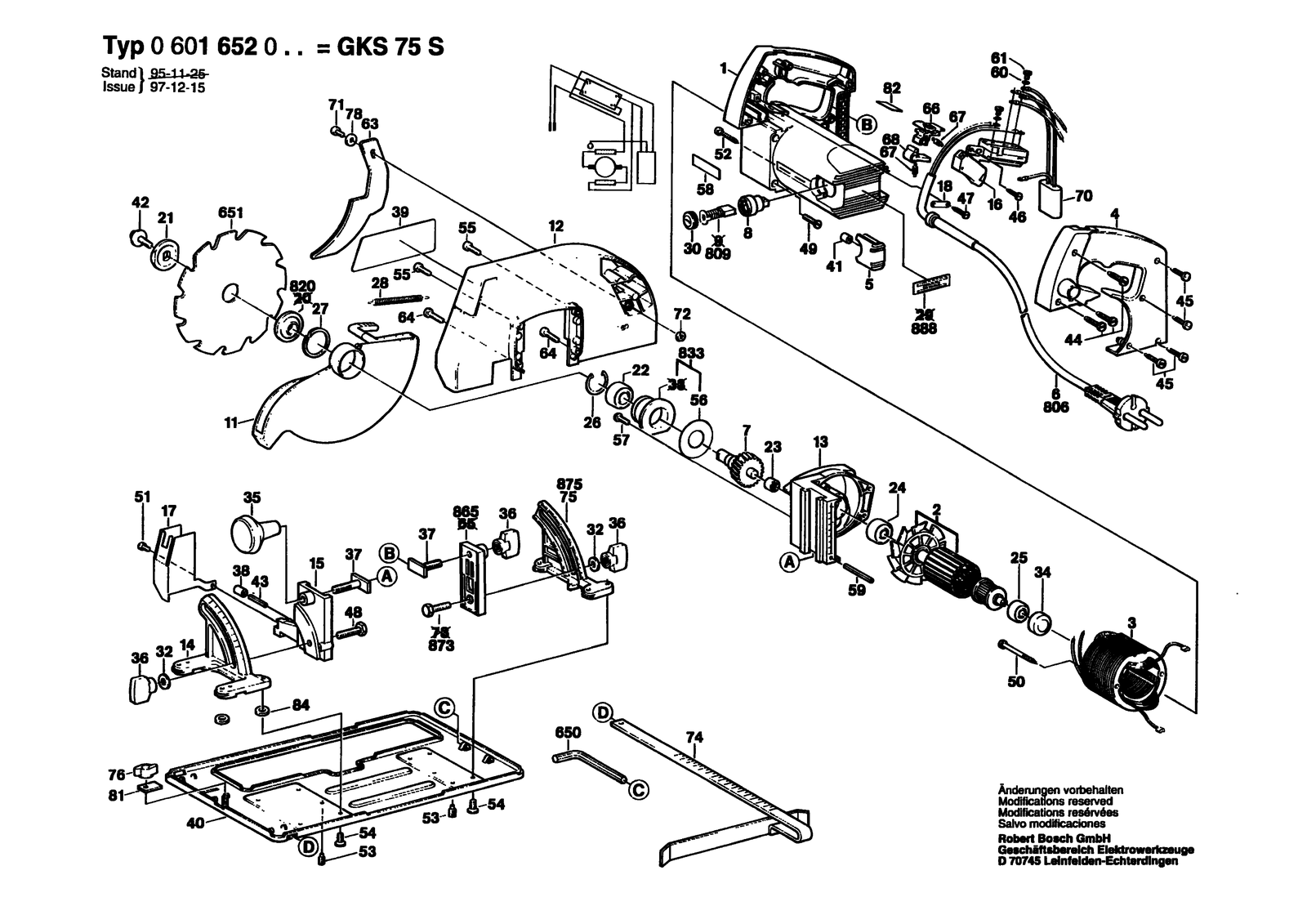

Bosch GKS 75 S circular hand saw: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 75 S: 82 positions on 1 sheet
Bosch GKS 75 S parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108548 | Motor Housing Blue |
| 11 | 3605500541 | Pivoting Blade Guard |
| 12 | 3605500537 | Protective Cover |
| 13 | 3605806506 | Gear Housing |
| 14 | 3605702529 | Dial |
| 15 | 3605702558 | Depth-Gauge |
| 16 | 2610916046 | Mains switch |
| 17 | 3605510528 | Protecting Cover |
| 18 | 3601032500 | Fastening Clamp |
| 2 | 3604011518 | Armature 110-120V |
| 2 | 3604011520 | Armature 220V |
| 2 | 3604011522 | Armature 240V |
| 2 | 3604011531 | Armature 100V |
| 21 | 3600144507 | Conical Spring Washer |
| 22 | 3600900521 | Groove ball bearing |
| 23 | 3600910502 | Needle-Roller Bearing |
| 24 | 3600900520 | Groove ball bearing |
| 25 | 2610904891 | Ball Bearing |
| 26 | 3600119505 | Retaining snap ring |
| 27 | 3600119506 | Spring retaining ring |
| 28 | 2610909254 | Extension Spring |
| 3 | 3604220508 | Field 220V |
| 3 | 3604220514 | Field 240V |
| 3 | 3604220517 | Field 100V |
| 3 | 3604220527 | Field 110-120V |
| 30 | 2610994437 | Screw Cap |
| 32 | 3600100515 | Plain Washer |
| 34 | 3600206502 | Bushing |
| 35 | 3603231516 | Auxiliary Handle Black M8 |
| 36 | 3603231524 | Knob M8 |
| 37 | 3603440502 | T-Slot Screw M 8X45 MM |
| 38 | 3600707504 | Rubber Buffer |
| 39 | 3601119647 | Reference Plate |
| 4 | 3605500572 | Handle Cover Blue |
| 40 | 3601440510 | Base 396X230 MM |
| 41 | 3600305500 | Rubber Buffer |
| 42 | 3603450501 | Hex Socket Head Cap Screw |
| 44 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 45 | 2910611029 | Tapping Screw DIN 7971-BZ4,2X25 |
| 46 | 2910611025 | Tapping Screw DIN 7981-ST4,2X13-C-H |
| 47 | 2910611012 | Tapping Screw DIN 7981-ST3,5X16-C-H |
| 48 | 2911061246 | Hex Screw DIN 933-M8X30-8.8 |
| 49 | 2914411064 | Thread-forming tap. Screw DIN 7500-CM5X25-ST |
| 5 | 3605500573 | Housing Cover Blue |
| 50 | 1613412001 | Tapping Screw B 4,8X68 MM |
| 51 | 2603435042 | Thread-forming tap. Screw |
| 52 | 2910611483 | Tapping Screw DIN 7982-ST3,9X45-F-H |
| 53 | 3603415566 | Set screw |
| 54 | 3603415553 | Countersunk-Head Screw |
| 55 | 2914411051 | Thread-forming tap. Screw DIN 7500 CM 4X20 |
| 56 | 3601016507 | Seal Ring |
| 57 | 3603430502 | Thread-forming tap. Screw |
| 58 | 3601119666 | Manufacturer's nameplate |
| 60 | 3600151506 | Spring Washer |
| 61 | 3603415549 | Pan head screw |
| 63 | 3601098516 | Riving Knife |
| 64 | 2914411049 | Thread-forming tap. Screw DIN 7500-CM4X16-ST |
| 650 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 651 | 3608640518 | Circular Saw Blade Ø 210X30 Mm, Hm |
| 67 | 3604648503 | Extension Spring |
| 68 | 3601960500 | Locking Lever |
| 7 | 3606328507 | Spindle With Gear |
| 7 | 3606328508 | Spindle With Gear Z=61 |
| 70 | 3607328509 | Suppression Filter |
| 71 | 2910141193 | Hex Socket Head Cap Screw DIN 912-M6X12-8.8 |
| 72 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 74 | 2608190002 | Edge Guide |
| 75 | 3607000518 | Holding Bracket |
| 76 | 1603480018 | Wing Screw M6 |
| 78 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 8 | 3600492505 | Brush Holder |
| 806 | 3604460516 | Power supply cord EU 4,25M 2 X 1,0MM H07RN-F |
| 809 | 3607014502 | Carbon-Brush Set |
| 809 | 3607014505 | Carbon-Brush Set |
| 81 | 3601030500 | Clamping Piece |
| 82 | 1601110265 | Reference Plate |
| 820 | 3600101510 | Clamping-Flange |
| 833 | 3607000566 | Parts Set |
| 84 | 2916011012 | Plain Washer DIN 125-A5,3-ST |
| 873 | 2911051244 | Hex Screw DIN 933-M8X25-5.6 |
| 875 | 3605702535 | Bracket Holder |
| 888 | 3601119590 | Nameplate |
