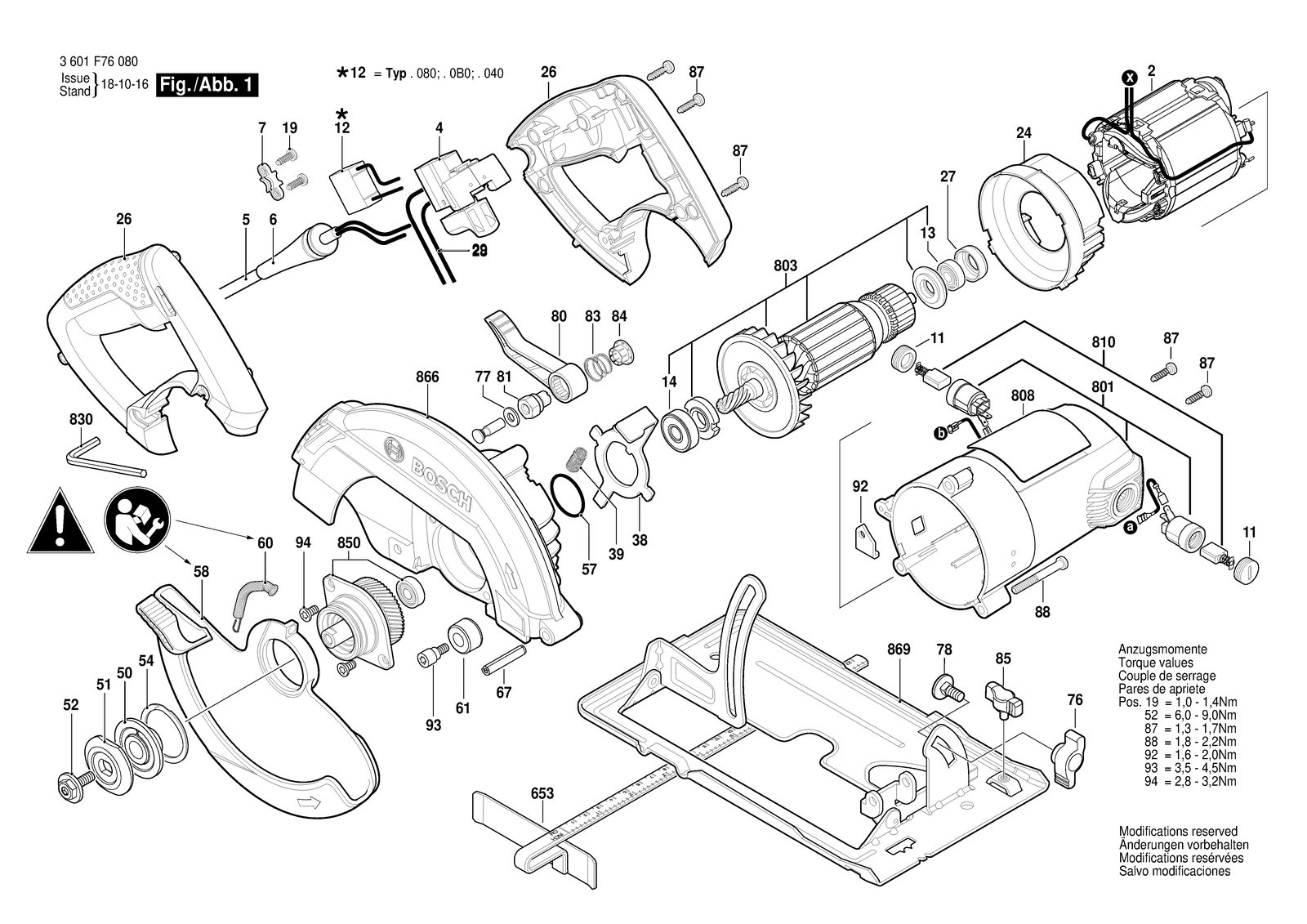

Bosch GKS 7000 circular hand saw: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 7000: 71 positions on 1 sheet
Bosch GKS 7000 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1619P06286 | Insulating Cap |
| 12 | 1619P06210 | Suppression Filter |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 1900905173 | Groove ball bearing 6000-2RS DIN 625 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 1619P08143 | Field 127V |
| 2 | 1619P08314 | Field 230V |
| 24 | 1619P09797 | Baffle |
| 26 | 1619P09801 | Set Of Handles |
| 27 | 1619P06227 | Rubber Ring |
| 28 | 1619P10065 | Connecting Cable |
| 38 | 1619P09795 | Guide Bracket |
| 39 | 2610936576 | Compression Spring |
| 4 | 1619P09971 | Switch |
| 4 | 1619P09972 | Switch |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460225 | Power supply cord CN 2,65M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460234 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1619P06323 | Power supply cord LAM 2,65M 2 X 1,31MM SJ 16/2 |
| 5 | 1619P06324 | Power supply cord ROK 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460277 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 1619P06230 | Washer |
| 50 | 1619P06342 | Washer |
| 50 | 1619P06343 | Washer |
| 51 | 1619P10086 | Locking washer |
| 52 | 1619P06232 | Screw |
| 54 | 1619P06238 | Locking washer |
| 57 | F000640007 | O-Ring |
| 58 | 1619P09803 | Pivoting Blade Guard |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1619P09794 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 653 | 1619X05789 | Parallel-Guide |
| 67 | 1619P10608 | Slotted Spring Pin |
| 7 | 1619P06313 | Cable Clip |
| 76 | 1619P06244 | Wing Nut |
| 77 | 2916021013 | Plain Washer 8-ST |
| 78 | 1619P06211 | Round-Head Bolt |
| 80 | 1619P10037 | Lever |
| 801 | 1619P10061 | Motor Housing Blue |
| 803 | 1619P10062 | Armature set 230V |
| 803 | 1619P12422 | Armature set 127V |
| 808 | 1619P09995 | Nameplate |
| 808 | 1619P09996 | Nameplate |
| 808 | 1619P09997 | Nameplate |
| 808 | 1619P09998 | Nameplate |
| 808 | 1619P10034 | Nameplate |
| 808 | 1619P10035 | Nameplate |
| 808 | 1619P11478 | Nameplate |
| 808 | 1619P11479 | Nameplate |
| 808 | 1619P11480 | Nameplate |
| 808 | 1619P12421 | Nameplate |
| 808 | 1619P12424 | Nameplate |
| 808 | 1619P31441 | Nameplate |
| 81 | 1619P09798 | Nut |
| 810 | 1619P10063 | Carbon-Brush Set |
| 83 | 1619X01792 | Spring Black |
| 830 | 1619P14506 | Offset Screwdriver |
| 830 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 84 | 1619P17212 | Cover |
| 85 | 1619P01618 | Wing Screw Black |
| 850 | 1619P10066 | Gear |
| 866 | 1619P10067 | Protective Cover |
| 869 | 1619P10064 | Base Plate |
| 869 | 1619P10195 | Base Plate |
| 87 | 2603490022 | Screw 4X16 |
| 88 | 2610925864 | Screw |
| 92 | 1619P09874 | Support plate |
| 93 | 1619P06246 | Screw |
| 94 | 2610924687 | Countersunk-Head Screw |
