Bosch GKS 7 1/4" circular saw: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 7 1/4": 51 positions on 1 sheet

Bosch GKS 7 1/4" parts list (1 sheet)

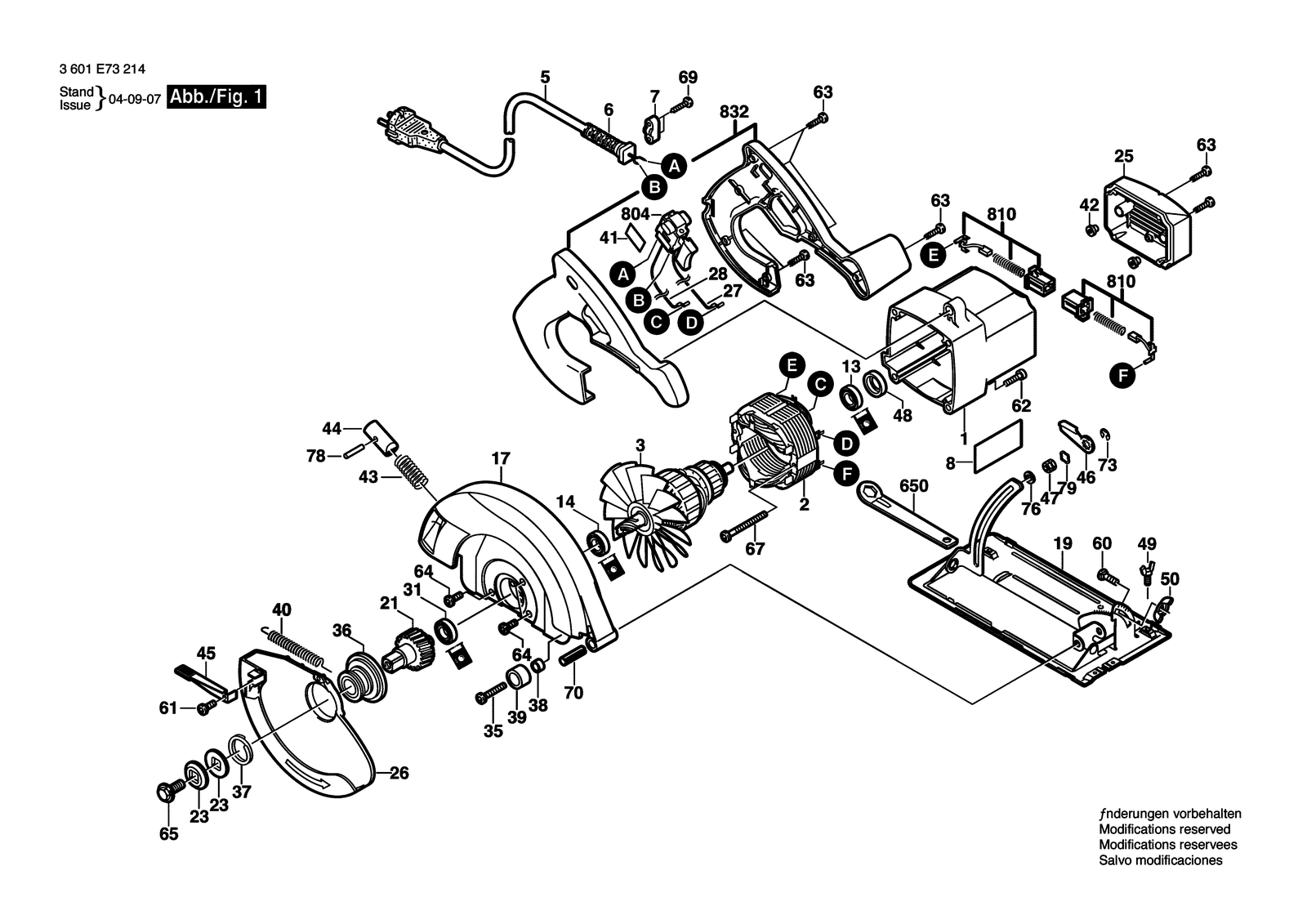

Bosch GKS 7 1/4" parts diagram, sheet 1
No.Part numberPart name
12610903196Motor Housing
132610017348Groove ball bearing
142610350311Groove ball bearing
172610903180Protective Cover
192610904202Base Plate
22610341382Field 230-240V
212610902896Gear Shaft
232610341361Supporting Disc
252610341255Sealing cap
262610996616Spare Part
272610341377Cable 385 MM
282610341378Cable 270 MM
32610908382Armature 220V
311619P01511Ball Bearing
352610347100Screw
361619X01554Bearing Plate
372610341359Spring retaining ring
382610341366Spacer
392610341394End stop
402610347486Extension Spring
412610347892Spacer
422610350655Rubber Buffer
432610350667Spring
442610351295Locking Piece
452610351898Lever
462610901987Lever
472610901988Nut
481619P01127Rubber Ring
492610018222Screw
52610921775Dummy
502610029562Wing Nut
62610360176Grommet
602610017262Round-Head Bolt
612610328924Screw
622610341335Screw
631619P01505Screw
641619X01786Contact Screw
651619X00935Hex Screw
6502610341299Box Wrench
672610931997Screw
692610990024Screw
72610364033Fastening Clamp
702610341332Slotted Spring Pin
732610341354Spring retaining ring
761619P01535Washer
782610020656Slotted Spring Pin
792610069183Spring Washer
82610921949Nameplate
8042610916005Switch
8102610993157Carbon-Brush Set
8322610907535Handle
