Bosch GKS 7 1/4

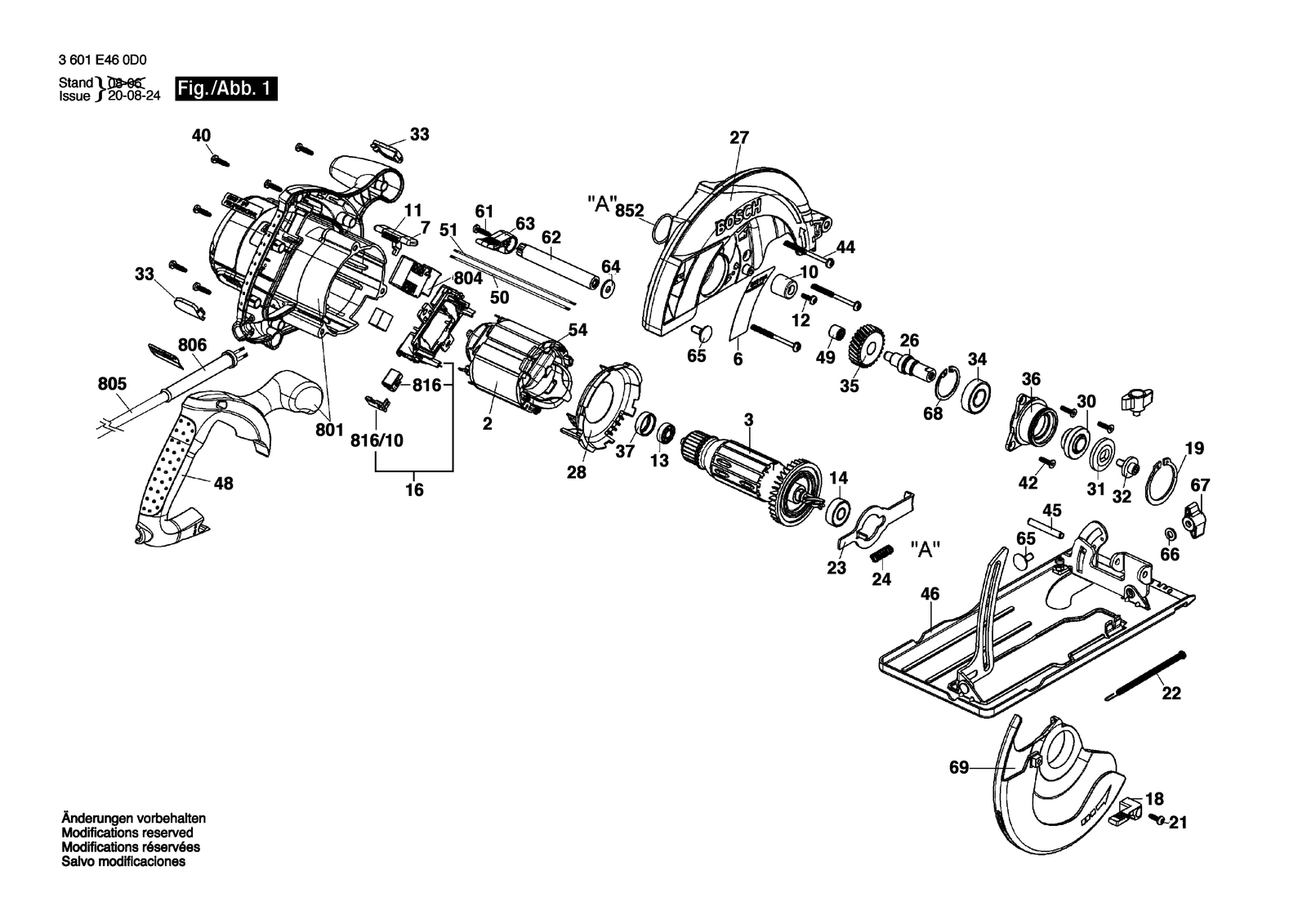

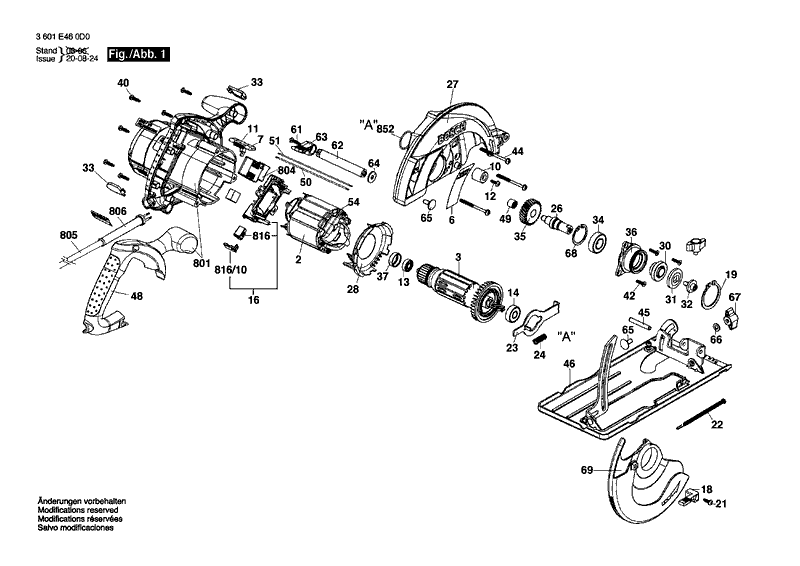

Bosch GKS 7 1/4 un-hd port. circular saw: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 7 1/4: 59 positions on 1 sheet
Bosch GKS 7 1/4 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | F000616054 | End stop |
| 11 | F000620006 | Spring |
| 12 | 9618086615 | Socket head cap screw M 4X12 MM |
| 13 | 1600900024 | Groove ball bearing DIN 607-2Z-C3 |
| 14 | F000615022 | Groove ball bearing |
| 16 | F000612022 | Brush Holder |
| 18 | F000603033 | Shift-Lever Knob |
| 19 | 2916650038 | Spring retaining ring |
| 2 | F000607062 | Field 127 V |
| 2 | F000607072 | Field 220 V |
| 21 | 9618086615 | Socket head cap screw M 4X12 MM |
| 22 | F000620007 | Spring |
| 23 | F000616055 | Lock Bolt |
| 24 | F000620008 | Spring |
| 26 | F000619034 | Spindle |
| 27 | F000613037 | Drive bearing |
| 28 | F000604004 | Fan Cover |
| 3 | F000605110 | Armature 220 V |
| 3 | F000605111 | Armature 127 V |
| 30 | F000616056 | Disc |
| 31 | F000616057 | Disc |
| 32 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 33 | F000603024 | Brush Holder |
| 34 | 9618085672 | Groove ball bearing |
| 35 | F000617029 | Toothed Gear |
| 36 | F000613035 | Drive bearing |
| 37 | 1600502011 | Intermediate Ring |
| 40 | 9618087099 | Screw 4X16 MM |
| 42 | F000616058 | Screw |
| 44 | F000616073 | Tapping Screw |
| 45 | 2917760159 | Slotted Spring Pin 6X40 N31A ST17 |
| 46 | F000623015 | Base Plate |
| 48 | F000603034 | Distributor Cap |
| 49 | F000615011 | Needle bearing |
| 50 | F000610017 | Cable |
| 51 | F000610018 | Cable |
| 54 | 3601025003 | Wire Guide |
| 6 | F000621373 | Marking Plate |
| 61 | 9618087099 | Screw 4X16 MM |
| 62 | F000603035 | Shift-Lever Knob |
| 63 | 1602002006 | Tensioning Lever |
| 64 | 2916011894 | Plain Washer |
| 65 | 2910281197 | Round-Head Bolt DIN 603-M6X16 |
| 66 | 2916012014 | Plain Washer A 6,4 DIN 125-ST |
| 67 | 1603339006 | Wing Nut M6 |
| 68 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 69 | F000633016 | Protecting Angle |
| 7 | F000608051 | Catch Disk |
| 801 | F000601136 | Assembly kit |
| 804 | F000608052 | Switch |
| 805 | F000609066 | Power supply cord BR 0,20M 2 X 1,00MM H05 Vvf |
| 805 | F000609273 | Power supply cord SAM 2,00M 2 X 1,50MM H05 Vvf |
| 805 | F000609279 | Power supply cord SAM 2,00M 2 X 1,50MM H05 Vvf |
| 805 | F000609285 | Power supply cord RCH 2,00M 2 X 1,00MM H05 Vvf |
| 806 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 806 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 816 | F000611036 | Carbon Brush |
| 816/10 | F000612014 | Brush Holder |
| 852 | F000640007 | O-Ring |
