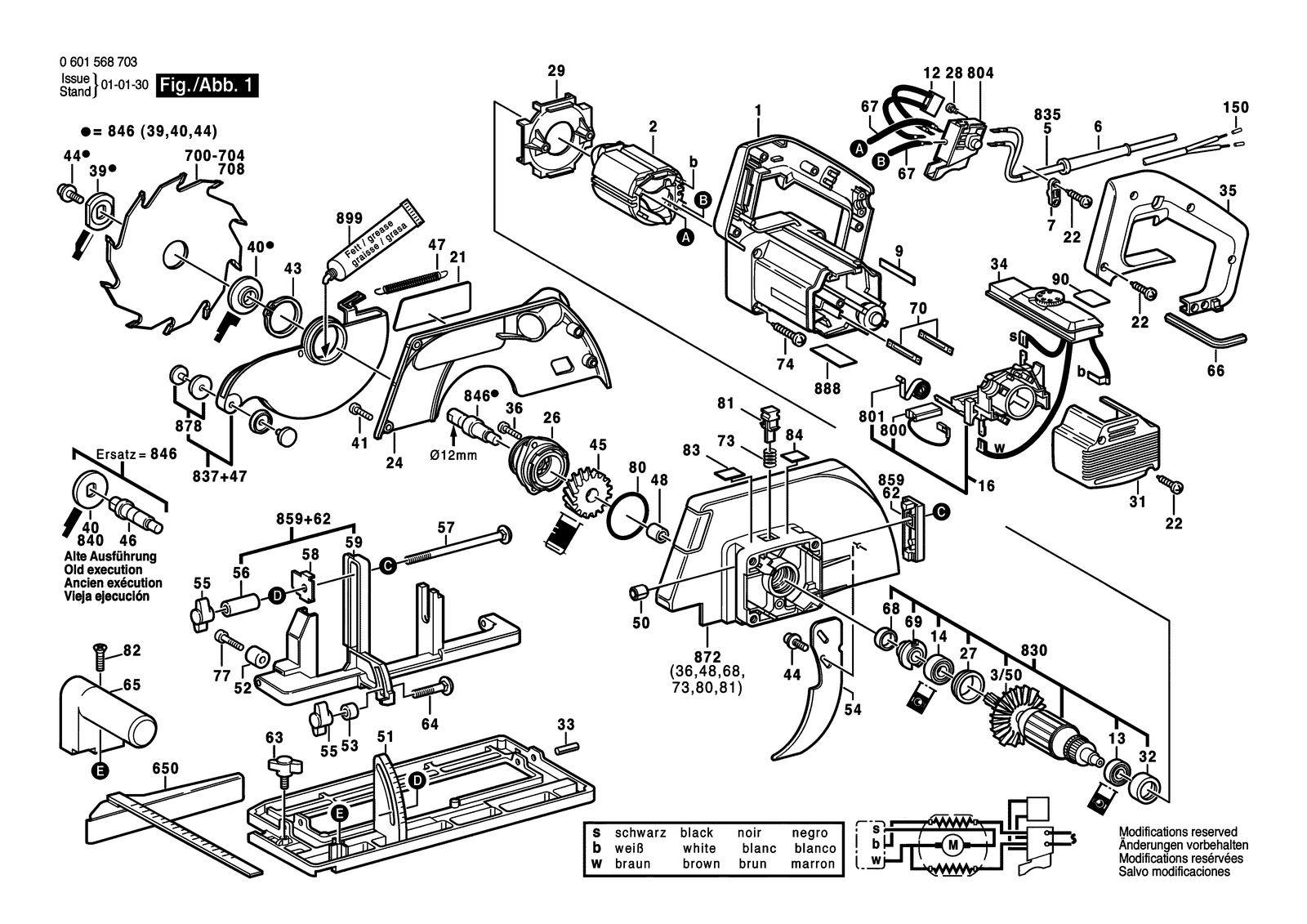

Bosch GKS 66 CE circular hand saw: exploded parts diagram, 1 sheet, 89 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 66 CE: 89 positions on 1 sheet
Bosch GKS 66 CE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108152 | Motor Housing Blue |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1610905009 | Groove ball bearing 9X26X8 |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 16 | 1604336024 | Brush Holder |
| 2 | 1604220357 | Field 220-240V |
| 2 | 1604220377 | Field 100-120V |
| 21 | 1601110637 | Manufacturer's nameplate |
| 22 | 2912401019 | Tapping Screw DIN7981-ST3,9X16-C-Z |
| 24 | 1605510157 | Protective Cover |
| 26 | 1605808065 | Bearing Flange |
| 27 | 1600221003 | Intermediate Ring |
| 28 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 29 | 3600591002 | Air-Deflector Ring |
| 3/50 | 3606610002 | Fan |
| 31 | 1605500156 | Sealing cap Black |
| 32 | 1600502011 | Intermediate Ring |
| 33 | 2917780150 | Slotted Spring Pin 6X22 DIN7346 |
| 34 | 1607233030 | Speed governor 220-240V |
| 34 | 1607233031 | Speed governor 115V |
| 35 | 1605500159 | Handle Cover Blue |
| 36 | 2603435042 | Thread-forming tap. Screw |
| 39 | 1605703107 | Conical Spring Washer |
| 40 | 1605703091 | Clamping-Flange Ø 12X30 MM |
| 40 | 1605703092 | Clamping-Flange Ø 12X16 MM |
| 41 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 43 | 2916650020 | Spring retaining ring DIN 471-40X1,75-FST |
| 44 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 45 | 1606320081 | Cylindrical Gear Z=41 |
| 46 | 1603124119 | Drive Shaft M6, Ø12 MM |
| 47 | 1604649001 | Extension Spring |
| 48 | 1600910019 | Nozzle Socket |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 5 | 1604460123 | Power supply cord GB 240V 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460203 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07RN-F |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000391 | Power supply cord |
| 5 | 2604460102 | Power supply cord I 4,15M 2 X 1,0MM H05VV-F |
| 50 | 1600309011 | Guide Bushing |
| 51 | 1608000107 | Base Plate 358X151 MM |
| 52 | 1600305001 | Rubber Buffer |
| 53 | 1600309012 | Spacer Bushing |
| 54 | 1600025013 | Riving Knife |
| 55 | 1603339006 | Wing Nut M6 |
| 56 | 1600309013 | Spacer Bushing Ø33XØ6,2XØ14,7 MM |
| 57 | 1603434005 | Pan head screw M6X170 MM |
| 58 | 1601329015 | Adjusting Plate |
| 59 | 1608190013 | Swivelling Lever |
| 6 | 1600703024 | Grommet Ø8,8-Ø9,0X70 MM |
| 6 | 1600703025 | Grommet Ø9,6-Ø10,2X70 MM |
| 62 | 1608040112 | Thrust Member |
| 63 | 1603480022 | Wing Screw |
| 64 | 2910281207 | Round-Head Bolt DIN 603-M6X35 |
| 65 | 1605133039 | Auxiliary Handle Black |
| 650 | 2608190002 | Edge Guide |
| 66 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 67 | 1604503014 | Suppressor Box |
| 68 | 1600290016 | Rotary shaft lip seal |
| 69 | 1600390013 | Locking Ring |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 1604477005 | Blade terminal |
| 73 | 1604611029 | Compression Spring |
| 74 | 1603435022 | Thread-forming tap. Screw Tt M5X30 MM |
| 77 | 2910271120 | Pan head screw DIN 923-M4X10-5.8 |
| 80 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 800 | 1607014129 | Carbon-Brush Set |
| 801 | 2604652008 | Spiral Spring |
| 804 | 1607000231 | On-Off Switch |
| 81 | 1603231011 | Stopping Device |
| 82 | 2910641197 | Oval-Head Screw DIN 7985-M6X16-4.8 |
| 83 | 1601110470 | Reference Plate |
| 830 | 1604010329 | Armature 100-120V |
| 830 | 1604010339 | Armature 220-240V |
| 835 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 837 | 1605510172 | Pivoting Blade Guard |
| 84 | 1601110618 | Reference Plate |
| 840 | 1605703090 | Conical Spring Washer |
| 840 | 1605703093 | Clamping-Flange |
| 846 | 1607000225 | Parts Set Ø 12 Mm, M6 |
| 859 | 1607000197 | Parts Set |
| 872 | 1607000223 | Parts Set |
| 878 | 1607000205 | Parts Set |
| 888 | 160111A3H3 | Nameplate |
| 899 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1601110483 | Manufacturer's nameplate |
| 90 | 1601110656 | Reference Plate |
