Bosch GKS 65 CE

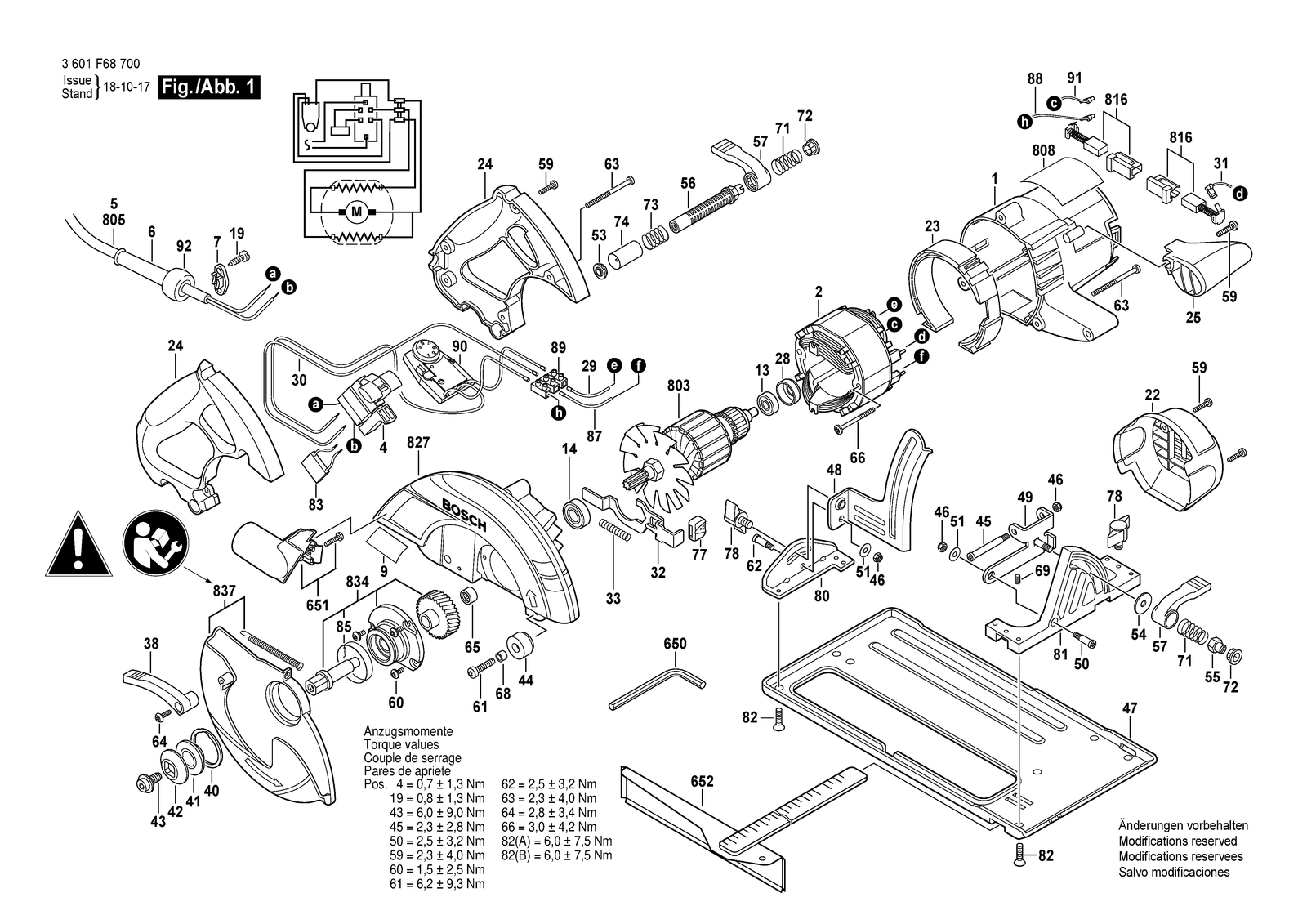

Bosch GKS 65 CE circular hand saw: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 65 CE: 85 positions on 1 sheet
Bosch GKS 65 CE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610934305 | Motor Housing |
| 13 | 2610017348 | Groove ball bearing |
| 14 | 2610350311 | Groove ball bearing |
| 19 | 1619X00504 | Screw |
| 2 | 1619P14886 | Field |
| 22 | 2610917052 | Sealing cap Black |
| 23 | 2610924448 | Baffle |
| 24 | 2610933955 | Handle |
| 25 | 2610924143 | Auxiliary Handle Black |
| 28 | 1619P01127 | Rubber Ring |
| 29 | 2610921019 | Cable |
| 30 | 2610921020 | Cable |
| 31 | 2610918148 | Cable |
| 32 | 2610937399 | Locking Bolt |
| 33 | 1619P01642 | Compression Spring |
| 38 | 2610919868 | Lever |
| 4 | 2610925421 | Switch |
| 40 | 2610921144 | Retaining snap ring |
| 41 | 1619P16660 | Washer |
| 41 | 1619X04517 | Washer |
| 42 | 1605703107 | Conical Spring Washer |
| 43 | 1619X01613 | Flange Bolt |
| 44 | 2610918151 | Bumper |
| 45 | 2610924636 | Shoulder Screw |
| 46 | 2915061003 | Hex Nut DIN 985-M 5-8-A |
| 47 | 2610922569 | Base Plate |
| 48 | 2610922572 | Support bracket |
| 49 | 2610934311 | Hinge |
| 5 | 1604460185 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460235 | Power supply cord ARG 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2610924635 | Shoulder Screw |
| 51 | 2610917048 | Washer |
| 53 | 1619P01535 | Washer |
| 54 | 1619X00942 | Washer |
| 55 | 1619X01791 | Nut |
| 56 | 2610917191 | Rod |
| 57 | 2610924368 | Lever |
| 59 | 1619P01505 | Screw |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 60 | 1619X07057 | Contact Screw |
| 61 | 2610920385 | Screw |
| 62 | 2610923224 | Shoulder Screw |
| 63 | 2610925864 | Screw |
| 64 | 1619X06749 | Screw |
| 65 | 2610020639 | Needle-Roller Bearing |
| 650 | 1619P14506 | Offset Screwdriver |
| 650 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 651 | 2610925244 | Vacuum Adapter |
| 652 | 1619X01612 | Mitre Fence |
| 66 | 2610931997 | Screw |
| 68 | 2610918985 | Spacer Tube |
| 69 | 2610924685 | Adjusting Screw |
| 7 | 2610993191 | Cable Clip |
| 71 | 1619X01792 | Spring Black |
| 72 | 1619P17212 | Cover |
| 73 | 2610919467 | Spring |
| 74 | 2610919327 | Cover Sleeve |
| 77 | 2610921530 | Cover |
| 78 | 2610990806 | Adjustment Knob |
| 80 | 2610922570 | Hinge Bracket |
| 803 | 1619X01696 | Armature 230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 1619X02054 | Nameplate |
| 808 | 1619X02055 | Nameplate |
| 808 | 1619X02056 | Nameplate |
| 808 | 1619X04322 | Nameplate |
| 808 | 1619X04323 | Nameplate |
| 808 | 1619X04324 | Nameplate |
| 81 | 2610922568 | Hinge Bracket |
| 816 | 2610925372 | Carbon-Brush Set |
| 82 | 2610924687 | Countersunk-Head Screw |
| 827 | 2610925374 | Upper guard |
| 83 | 2610916645 | Suppression Filter |
| 834 | 2610925373 | Gear Shaft |
| 837 | 1619P14440 | Lower guard |
| 85 | 2610920799 | Cover Sleeve |
| 87 | 2610921021 | Cable |
| 88 | 2610921023 | Cable |
| 89 | 2610925211 | Terminal Block |
| 9 | 2610925213 | Manufacturer's nameplate |
| 90 | 2610921905 | Speed governor |
| 91 | 2610921017 | Cable |
| 92 | 1603231014 | Locking element |
