Bosch GKS 55+ G

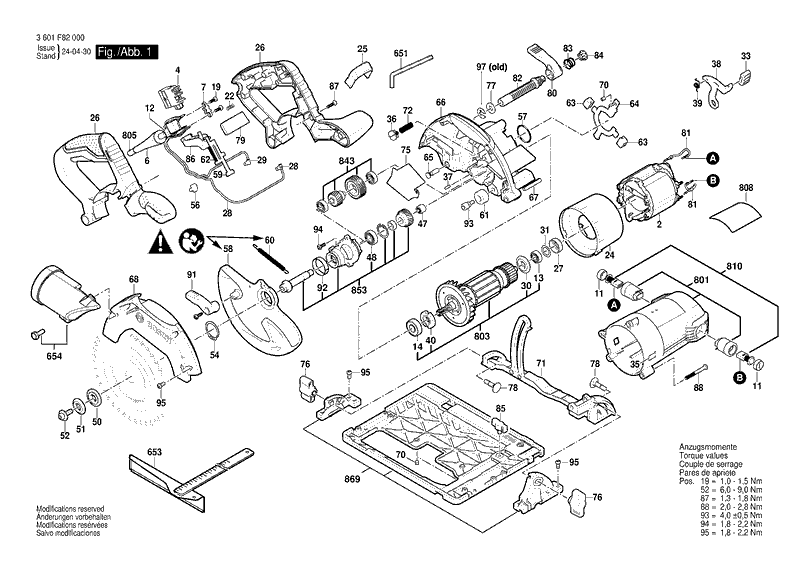

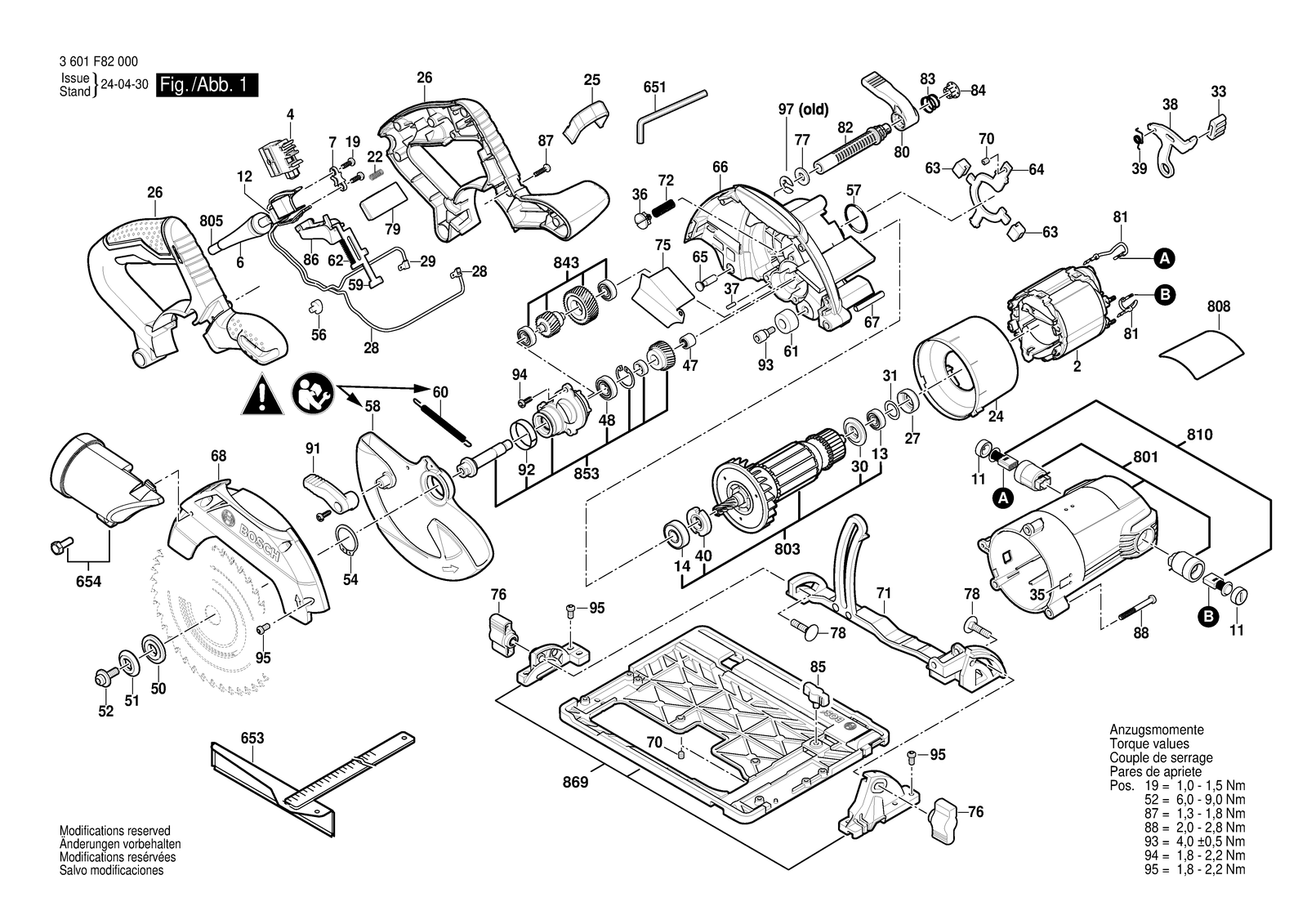

Bosch GKS 55+ G circular hand saw: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 55+ G: 78 positions on 1 sheet
Bosch GKS 55+ G parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1619P06286 | Insulating Cap |
| 12 | 2610917620 | Suppression Filter |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 1619P10481 | Ball Bearing |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 1619P08314 | Field 230V |
| 22 | 2610935251 | Compression Spring |
| 24 | 1619P09797 | Baffle |
| 25 | 1619P10794 | Cap |
| 26 | 1619P10803 | Set Of Handles |
| 27 | 1619P06227 | Rubber Ring |
| 28 | 1619P10806 | Connecting Cable |
| 29 | 1619P10807 | Connecting Cable |
| 30 | 1619P04476 | Sealing disk |
| 31 | 1619P10795 | Shim plate |
| 33 | 1619P06225 | Cap |
| 35 | 1619P00291 | Ball Blue |
| 36 | 1619P10145 | Cap |
| 37 | 2603201020 | Bearing bolt |
| 38 | 1619P10138 | Guide Bracket |
| 39 | 1619P10139 | Contact strap |
| 4 | 1619P10149 | Switch |
| 40 | 1619P06319 | Lock Nut |
| 47 | 1619P06310 | Needle bearing |
| 48 | 1619P10132 | Ball Bearing |
| 50 | 1619P10784 | Washer |
| 51 | 1619P10785 | Locking washer |
| 52 | 1619P10786 | Clamp Screw |
| 54 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 56 | 1619P10141 | Rod |
| 57 | F000640007 | O-Ring |
| 58 | 1619P10134 | Safety Guard |
| 59 | 1619P10142 | Connection Lever |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1619P10136 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 62 | 1604611031 | Compression Spring |
| 63 | 1619P10140 | Rubber Pad |
| 64 | 1619P10144 | Support bracket |
| 65 | 1619P06325 | Knurled Bolt |
| 651 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 653 | 1619X01612 | Mitre Fence |
| 654 | 1619P11691 | Adapter |
| 66 | 1619P10791 | Protective Guard |
| 67 | 1619P10608 | Slotted Spring Pin |
| 68 | 1619P10148 | Protective Cover |
| 7 | 1619P06313 | Cable Clip |
| 70 | 2610924685 | Adjusting Screw |
| 71 | 1600A00XX2 | Bridge |
| 72 | 2604610028 | Compression Spring |
| 75 | 1619P10801 | Guide Cover |
| 76 | 1619P01636 | Wing Nut |
| 77 | 2916021013 | Plain Washer 8-ST |
| 78 | 1619P09218 | Round-Head Bolt M6X30 |
| 79 | 1619P10788 | Switch Button |
| 80 | 2610924368 | Lever |
| 801 | 1619P10061 | Motor Housing Blue |
| 803 | 1619P11497 | Armature set |
| 805 | 1619P11860 | Power supply cord EU 4,15 M 2X1MM H07 Rn-F |
| 808 | 1619P31498 | Nameplate |
| 81 | 1619P07060 | Connecting Cable |
| 810 | 1619P10063 | Carbon-Brush Set |
| 82 | 1619P07620 | Adjustment rod |
| 83 | 1619X01792 | Spring Black |
| 84 | 1619P17212 | Cover |
| 843 | 1619P11494 | Gear Shaft |
| 85 | 1619P01618 | Wing Screw Black |
| 853 | 1619P11495 | Bearing Flange |
| 86 | 1619P10787 | Trigger |
| 869 | 1619P14109 | Base Plate |
| 87 | 2603490022 | Screw 4X16 |
| 88 | 2610925864 | Screw |
| 91 | 1619P10150 | Lever |
| 92 | 1619P10802 | Flange Bushing |
| 93 | 1619P06246 | Screw |
| 94 | 1619P01678 | Screw |
| 95 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 97 | 1619P12409 | Washer |
