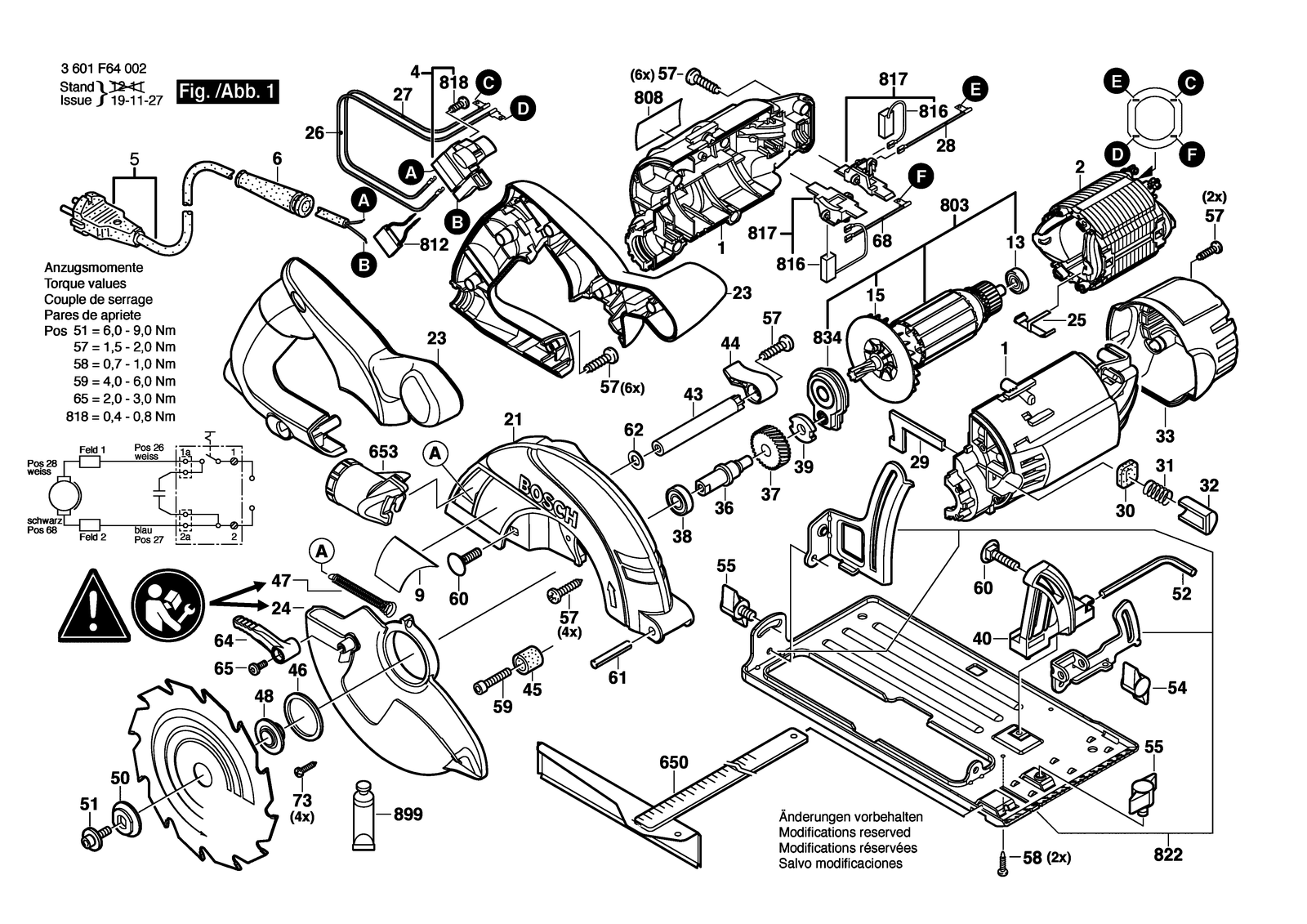

Bosch GKS 55 circular hand saw: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 55: 59 positions on 1 sheet
Bosch GKS 55 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108244 | Motor Housing Blue |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 15 | 1606610145 | Fan |
| 2 | 1619P08345 | Field 230V |
| 21 | 1605510335 | Protective Cover |
| 23 | 1605500247 | Handle Blue |
| 24 | 1605510337 | Pivoting Blade Guard |
| 25 | 1601290010 | Contact Spring |
| 26 | 1604449024 | Connecting piping |
| 27 | 1604449015 | Connecting piping |
| 28 | 1604449025 | Connecting piping |
| 29 | 1601900005 | Safety Catch |
| 30 | 1601015033 | Felt Seal |
| 31 | 1604610018 | Compression Spring |
| 32 | 1603231019 | Push-Button |
| 33 | 1605500242 | Housing Cover Black |
| 36 | 1603124140 | Drive Shaft |
| 37 | 1606320601 | Cylindrical Gear |
| 38 | 1600905031 | Groove ball bearing 12X28X8 |
| 39 | 1600190044 | Screen Disc |
| 4 | 1607200198 | Switch |
| 40 | 1608190027 | Miter Square |
| 43 | 1600360004 | Spacer Tube |
| 44 | 1602002006 | Tensioning Lever |
| 45 | 1600305002 | Rubber Buffer |
| 46 | 1600102024 | Clamp ring |
| 47 | 1604650018 | Extension Spring |
| 48 | 1605703133 | Clamping-Flange |
| 5 | 1604460196 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460187 | Power supply cord Usa/cdn 2,68M 2 X 082MM SJ 18/2 |
| 50 | 1605703108 | Conical Spring Washer |
| 51 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 52 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 54 | 1603339006 | Wing Nut M6 |
| 55 | 1603480018 | Wing Screw M6 |
| 57 | 2603490022 | Screw 4X16 |
| 58 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 59 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 60 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 61 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 62 | 2916011894 | Plain Washer |
| 64 | 1602002011 | Lever |
| 65 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 650 | 2608190002 | Edge Guide |
| 653 | 1608005008 | Adapter |
| 68 | 1604449013 | Connecting Cable |
| 73 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 803 | 1607000A56 | Armature 230V |
| 808 | 160111A3H3 | Nameplate |
| 812 | 1607328028 | Suppression Filter |
| 816 | 1607014176 | Carbon-Brush Set |
| 817 | 1604336049 | Brush Plate With Switching-Off Device |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 822 | 2601016908 | Base Plate |
| 834 | 1607000A53 | Bearing Bracket |
| 899 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1601118A97 | Manufacturer's nameplate GKS 55 |
