Bosch GKS 235

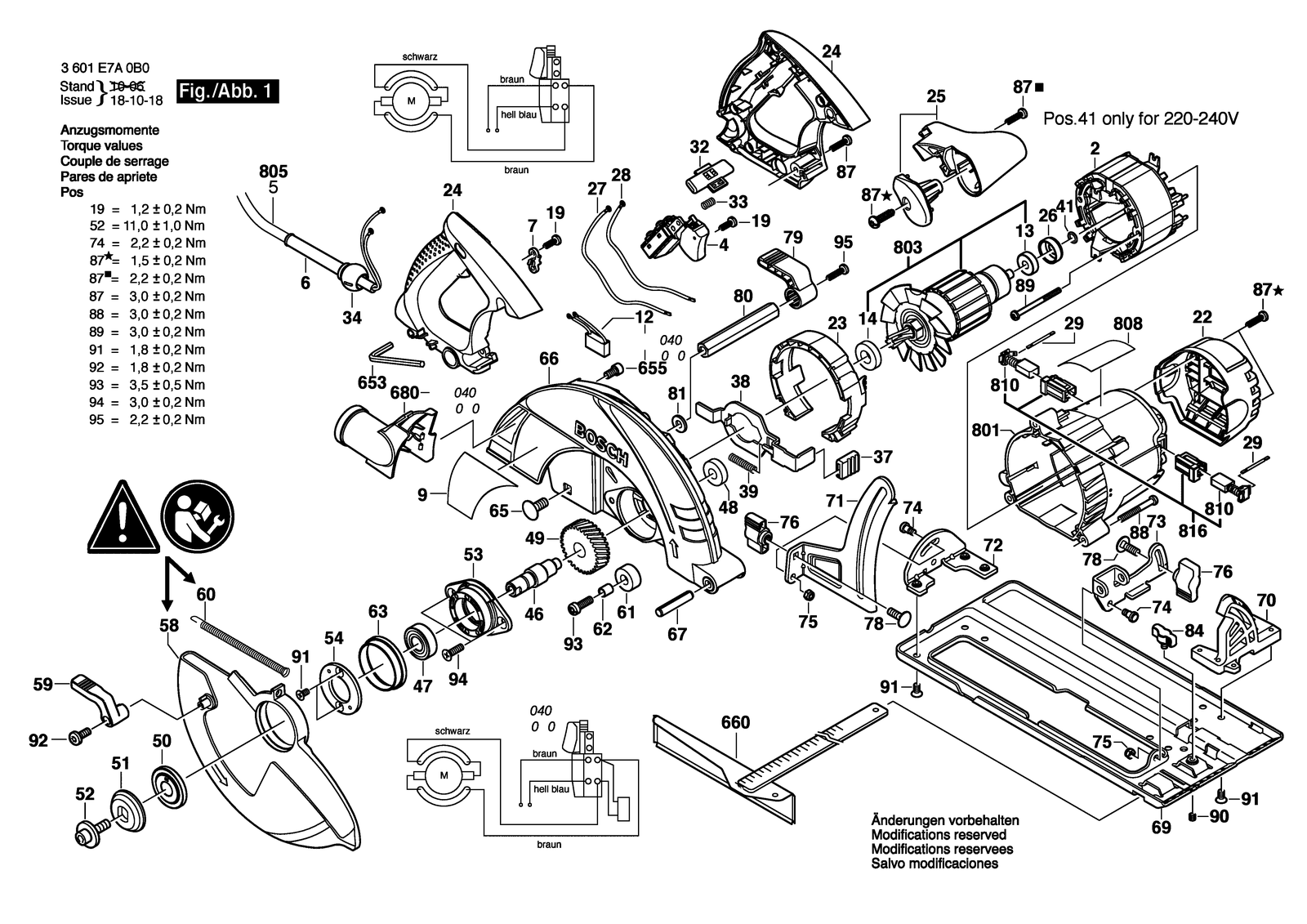

Bosch GKS 235 circular hand saw: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 235: 84 positions on 1 sheet
Bosch GKS 235 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1619P01137 | Suppression Filter |
| 13 | 2610017348 | Groove ball bearing |
| 14 | 1619P06095 | Groove ball bearing |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 1619P14887 | Field |
| 22 | 1619P01139 | End cap |
| 23 | 1619P01140 | Baffle Black |
| 24 | 1619P01141 | Set Of Handles Blue |
| 25 | 1619P01142 | Auxiliary Handle Black |
| 26 | 1619P01127 | Rubber Ring |
| 27 | 1619P01151 | Cable |
| 28 | 1619P01152 | Cable |
| 29 | 2610918148 | Cable |
| 32 | 1619P01156 | Switch Button |
| 33 | 2610935251 | Compression Spring |
| 34 | 1619P01637 | Strain-Relief Clamp |
| 37 | 1619P01143 | Cap Black |
| 38 | 1619P01620 | Guide Bracket |
| 39 | 1619P01642 | Compression Spring |
| 4 | 1619P01115 | Switch |
| 41 | 1619P07414 | Shim washer |
| 46 | 1619P01623 | Shaft |
| 47 | 1900905279 | Groove ball bearing 15X35X11 |
| 48 | 1900905173 | Groove ball bearing 6000-2RS DIN 625 |
| 49 | 1619P01624 | Cylindrical Gear |
| 5 | 1619P02325 | Power supply cord EU 2,65M 2 X 1,00MM H05 Vv-F |
| 5 | 1619P02326 | Power supply cord GB 2,65M 2 X 1,00MM H05 Vv-F |
| 5 | 1619P02327 | Power supply cord |
| 5 | 1619P02328 | Power supply cord AUS 2,65M 2 X 1,00MM Pvc |
| 50 | 1619P01153 | Washer |
| 50 | 1619P01619 | Washer |
| 51 | 1619P01626 | Locking washer |
| 52 | 1619P01634 | Clamp Screw |
| 53 | 1619P01628 | Bearing Flange |
| 54 | 1619P01629 | Retaining Plate |
| 58 | 1600A00XZ2 | Pivoting Blade Guard |
| 59 | 1619P01631 | Lever |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 1619P01632 | Extension Spring |
| 61 | 1619P01633 | Bumper |
| 62 | 1619P02580 | Spacer Tube |
| 63 | 1619P01635 | Flange Bushing |
| 65 | 1619P06522 | Stud bolt |
| 653 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 655 | 1619P01674 | Screw M 6X10 |
| 66 | 1600A00XU3 | Protective Guard |
| 660 | 1619X01612 | Mitre Fence |
| 67 | 2917780185 | Slotted Spring Pin DIN 7346-8X45 |
| 680 | 1619P01627 | Vacuum Adapter |
| 69 | 1619P01665 | Base Plate |
| 7 | 1619P01104 | Cable Clip |
| 70 | 1600A00XZ9 | Hinge Bracket |
| 71 | 1619P01154 | Depth-Gauge |
| 72 | 1619P01155 | Support bracket |
| 73 | 1619P01158 | Hinge |
| 74 | 2610923224 | Shoulder Screw |
| 75 | 2915061003 | Hex Nut DIN 985-M 5-8-A |
| 76 | 1619P01636 | Wing Nut |
| 78 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 79 | 1619P01668 | Adjusting Lever |
| 80 | 1600A00Z5N | Rod |
| 801 | 1619P04514 | Motor Housing |
| 803 | 1619P01696 | Armature set 230V |
| 808 | 1619P02657 | Nameplate |
| 808 | 1619P02658 | Nameplate |
| 808 | 1619P02660 | Nameplate |
| 808 | 1619P30213 | Nameplate |
| 808 | 1619P31429 | Nameplate |
| 81 | 2916021013 | Plain Washer 8-ST |
| 810 | 1619P01685 | Carbon-Brush Set |
| 816 | 1619P02799 | Brush Holder |
| 84 | 1619P01618 | Wing Screw Black |
| 87 | 1619P01643 | Screw |
| 88 | 1619P01644 | Screw |
| 89 | 1619P01676 | Screw |
| 9 | 1619P31492 | Manufacturer's nameplate |
| 90 | 2610924685 | Adjusting Screw |
| 91 | 1619P01677 | Screw M5X10-H |
| 92 | 1619P01678 | Screw |
| 93 | 1619P01679 | Screw |
| 94 | 1619P01680 | Screw M6X20-H |
| 95 | 1619P01673 | Screw |
