Bosch GKS 20-65

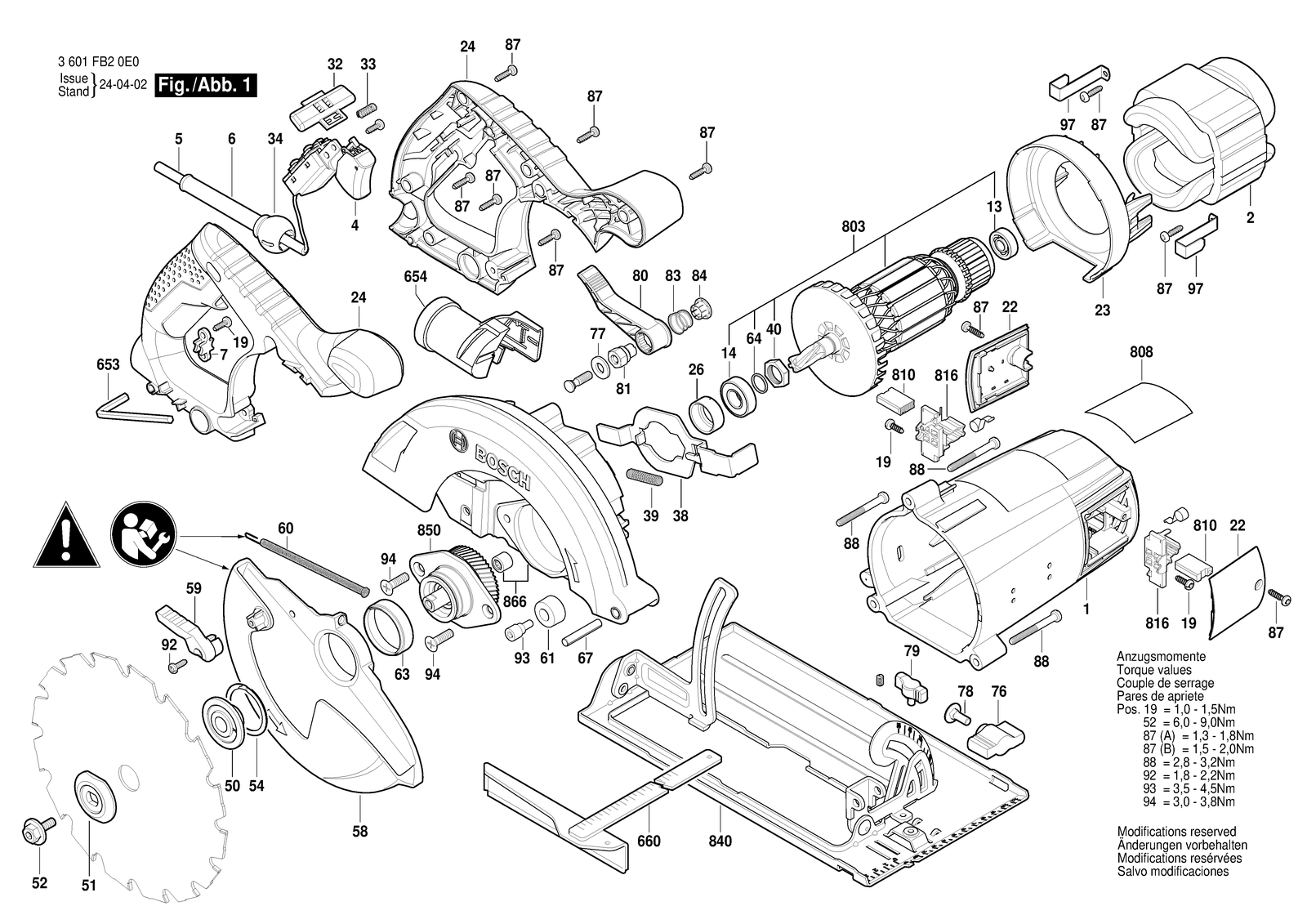

Bosch GKS 20-65 circular hand saw: exploded parts diagram, 1 sheet, 65 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 20-65: 65 positions on 1 sheet
Bosch GKS 20-65 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P10219 | Motor Housing |
| 13 | 2610017348 | Groove ball bearing |
| 14 | 1619P06095 | Groove ball bearing |
| 19 | 2914201703 | Oval-Head Screw DIN 4759 4X12 MM |
| 2 | 1619P14691 | Field |
| 2 | 1619P14977 | Field |
| 22 | 1618B00802 | Sealing cap |
| 23 | 1619P10224 | Baffle |
| 24 | 1619P10220 | Set Of Handles |
| 26 | 1600206030 | Rubber Ring |
| 32 | 1619P01156 | Switch Button |
| 33 | 2610935251 | Compression Spring |
| 34 | 1619P01637 | Strain-Relief Clamp |
| 38 | 1619P15209 | Guide Bracket |
| 39 | 1619P01642 | Compression Spring |
| 4 | 160720036A | Switch |
| 40 | 1619P10226 | Bushing |
| 5 | 1619P02325 | Power supply cord EU 2,65M 2 X 1,00MM H05 Vv-F |
| 5 | 1619P15013 | Power supply cord |
| 5 | 1619P15014 | Power supply cord |
| 5 | 1619P15015 | Power supply cord |
| 50 | 1619P06342 | Washer |
| 51 | 1619P06231 | Locking washer |
| 52 | 1619P06232 | Screw |
| 54 | 1619P06238 | Locking washer |
| 58 | 1600A00XZ6 | Pivoting Blade Guard |
| 59 | 1619P06235 | Lever |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 60 | 1619P06334 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 63 | 1619P06237 | Flange Bushing |
| 64 | 1619P10650 | Washer |
| 653 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 654 | 1619P06204 | Vacuum Adapter |
| 660 | 1619X01612 | Mitre Fence |
| 67 | 1619P10608 | Slotted Spring Pin |
| 7 | 1619P01104 | Cable Clip |
| 76 | 1619P01636 | Wing Nut |
| 77 | 2916021013 | Plain Washer 8-ST |
| 78 | 1619P06211 | Round-Head Bolt |
| 79 | 1619P06316 | Wing Screw |
| 80 | 1619P10037 | Lever |
| 803 | 1619P15165 | Armature assembly 230 V |
| 803 | 1619P15167 | Armature assembly |
| 808 | 1619P15020 | Nameplate |
| 808 | 1619P15021 | Nameplate |
| 808 | 1619P15022 | Nameplate |
| 808 | 1619P15023 | Nameplate |
| 81 | 1619P09798 | Nut |
| 810 | 1619P15166 | Carbon-Brush Set |
| 810 | 1619P15168 | Carbon-Brush Set |
| 816 | 1604336048 | Brush Holder |
| 83 | 1619X01792 | Spring Black |
| 84 | 1619P17212 | Cover |
| 840 | 1619P15177 | Base Plate |
| 850 | 1619P15178 | Gear |
| 866 | 1619P15179 | Protective Cover |
| 87 | 2603490022 | Screw 4X16 |
| 88 | 1619P01644 | Screw |
| 92 | 1619P01678 | Screw |
| 93 | 1619P06246 | Screw |
| 94 | 1619P01680 | Screw M6X20-H |
| 97 | 1601334009 | Pickup Clip |
