Bosch GKS 190

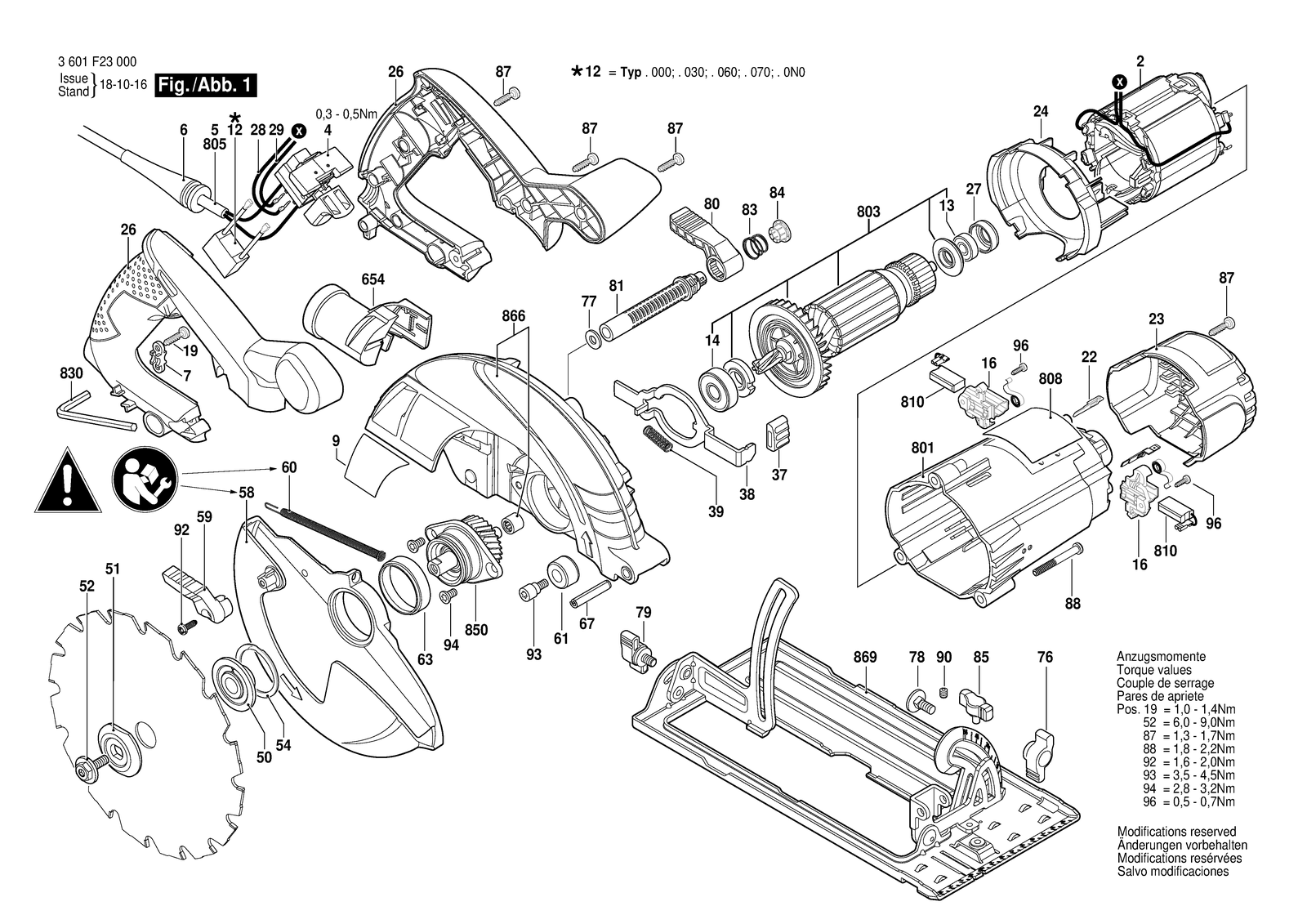

Bosch GKS 190 circular hand saw: exploded parts diagram, 1 sheet, 155 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 190: 155 positions on 1 sheet
Bosch GKS 190 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1619P06210 | Suppression Filter |
| 12 | 1619P06210 | Suppression Filter |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 1619P06374 | Bearing Cover Plate |
| 14 | 1619P06374 | Bearing Cover Plate |
| 16 | 1619P06212 | Brush Holder |
| 16 | 1619P06212 | Brush Holder |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 19 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 2 | 1619P04474 | Field 230V |
| 2 | 1619P05323 | Field 115V |
| 2 | 1619P08129 | Field 127V |
| 2 | 1619P08333 | Field 220V |
| 2 | 1619P04474 | Field 230V |
| 22 | 1619P06213 | Right Angle Plug |
| 22 | 1619P06213 | Right Angle Plug |
| 23 | 1619P06218 | End cap Black |
| 23 | 1619P06218 | End cap Black |
| 24 | 1619P06219 | Baffle |
| 24 | 1619P06219 | Baffle |
| 26 | 1619P06314 | Set Of Handles |
| 26 | 1619P06315 | Set Of Handles |
| 26 | 1619P06314 | Set Of Handles |
| 27 | 1619P06227 | Rubber Ring |
| 27 | 1619P06227 | Rubber Ring |
| 28 | 1619P15969 | Wire |
| 28 | 1619P15969 | Wire |
| 29 | 1619P15970 | Wire |
| 29 | 1619P15970 | Wire |
| 37 | 1619P06225 | Cap |
| 37 | 1619P06225 | Cap |
| 38 | 1619P06226 | Guide Bracket |
| 38 | 1619P06226 | Guide Bracket |
| 39 | 1619P01642 | Compression Spring |
| 39 | 1619P01642 | Compression Spring |
| 4 | 1619P06207 | Switch |
| 4 | 1619P06208 | Switch |
| 4 | 1619P06207 | Switch |
| 5 | 1604460234 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460458 | Power supply cord CH 4,15M 2 X 1,0MM H07RN-F |
| 5 | 1619P06321 | Power supply cord GB 4,15M 2 X 1,50MM H07 Rn-F |
| 5 | 1619P10318 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1619P15345 | Power supply cord LAM 2,65M 2X1,5 H05RR-F |
| 5 | 2604460277 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 3604460138 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 16044607AB | Power supply cord |
| 50 | 1619P06341 | Washer |
| 50 | 1619P06342 | Washer |
| 50 | 1619P06230 | Washer |
| 50 | 1619P06342 | Washer |
| 51 | 1619P06231 | Locking washer |
| 51 | 1619P06231 | Locking washer |
| 52 | 1619P06232 | Screw |
| 52 | 1619P06232 | Screw |
| 54 | 1619P06238 | Locking washer |
| 54 | 1619P06238 | Locking washer |
| 58 | 1600A00XZ6 | Pivoting Blade Guard |
| 58 | 1600A00XZ6 | Pivoting Blade Guard |
| 59 | 1619P06235 | Lever |
| 59 | 1619P06235 | Lever |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1619P06334 | Extension Spring |
| 60 | 1619P06334 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 61 | 1619P06236 | Bumper Black |
| 63 | 1619P06237 | Flange Bushing |
| 63 | 1619P06237 | Flange Bushing |
| 654 | 1619P06204 | Vacuum Adapter |
| 654 | 1619P06204 | Vacuum Adapter |
| 67 | 2917800253 | Coiled Spring Pin DIN ISO 8750-6X35-ST |
| 67 | 2917800253 | Coiled Spring Pin DIN ISO 8750-6X35-ST |
| 7 | 1619P06313 | Cable Clip |
| 7 | 1619P06313 | Cable Clip |
| 76 | 1619P06244 | Wing Nut |
| 76 | 1619P06244 | Wing Nut |
| 77 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 77 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 78 | 1619P06211 | Round-Head Bolt |
| 78 | 1619P06211 | Round-Head Bolt |
| 79 | 1619P06316 | Wing Screw |
| 79 | 1619P06316 | Wing Screw |
| 80 | 1619P06245 | Lever |
| 80 | 1619P06245 | Lever |
| 801 | 1619P06372 | Motor Housing Blue |
| 801 | 1619P06372 | Motor Housing Blue |
| 803 | 1619P06345 | Armature set 230V |
| 803 | 1619P06371 | Armature set 115V |
| 803 | 1619P07339 | Armature set 127V |
| 803 | 1619P10350 | Armature set 220V |
| 803 | 1619P10351 | Armature set 127V |
| 803 | 1619P06345 | Armature set 230V |
| 805 | 1607000391 | Power supply cord |
| 808 | 1619P06377 | Nameplate |
| 808 | 1619P06384 | Nameplate |
| 808 | 1619P06385 | Nameplate |
| 808 | 1619P06390 | Nameplate |
| 808 | 1619P06394 | Nameplate |
| 808 | 1619P06395 | Nameplate |
| 808 | 1619P06396 | Nameplate |
| 808 | 1619P06397 | Nameplate |
| 808 | 1619P09460 | Nameplate |
| 808 | 1619P09916 | Nameplate |
| 808 | 1619P10342 | Nameplate |
| 808 | 1619P10344 | Nameplate |
| 808 | 1619P10346 | Nameplate |
| 808 | 1619P10348 | Nameplate |
| 808 | 1619P11825 | Nameplate |
| 808 | 1619P11826 | Nameplate |
| 808 | 1619P30421 | Nameplate |
| 808 | 1619P30296 | Nameplate |
| 808 | 1619P30297 | Nameplate |
| 81 | 1619P07620 | Adjustment rod |
| 81 | 1619P07620 | Adjustment rod |
| 810 | 1619P06346 | Carbon-Brush Set |
| 810 | 1619P06346 | Carbon-Brush Set |
| 83 | 1619X01792 | Spring Black |
| 83 | 1619X01792 | Spring Black |
| 830 | 1619P14506 | Offset Screwdriver |
| 830 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 830 | 1619P14506 | Offset Screwdriver |
| 84 | 1619P17212 | Cover |
| 84 | 1619P17212 | Cover |
| 85 | 1619P01618 | Wing Screw Black |
| 85 | 1619P01618 | Wing Screw Black |
| 850 | 1619P06392 | Gear |
| 850 | 1619P10349 | Gear |
| 850 | 1619P06392 | Gear |
| 866 | 1619P07286 | Protective Cover |
| 866 | 1619P07590 | Protective Cover |
| 866 | 1619P07286 | Protective Cover |
| 869 | 1619P06391 | Base Plate |
| 869 | 1619P06391 | Base Plate |
| 87 | 2603490022 | Screw 4X16 |
| 87 | 2603490022 | Screw 4X16 |
| 88 | 2610925864 | Screw |
| 88 | 2610925864 | Screw |
| 9 | 1619P06209 | Manufacturer's nameplate GKS 190 |
| 9 | 1619P31104 | Manufacturer's nameplate |
| 9 | 1619P31104 | Manufacturer's nameplate |
| 90 | 1619P04540 | Adjusting Screw Black |
| 90 | 1619P04540 | Adjusting Screw Black |
| 92 | 1619P01678 | Screw |
| 92 | 1619P01678 | Screw |
| 93 | 1619P06246 | Screw |
| 93 | 1619P06246 | Screw |
| 94 | 2610924687 | Countersunk-Head Screw |
| 94 | 2610924687 | Countersunk-Head Screw |
| 96 | 1619P06252 | Torx Oval-Head Screw |
| 96 | 1619P06252 | Torx Oval-Head Screw |
