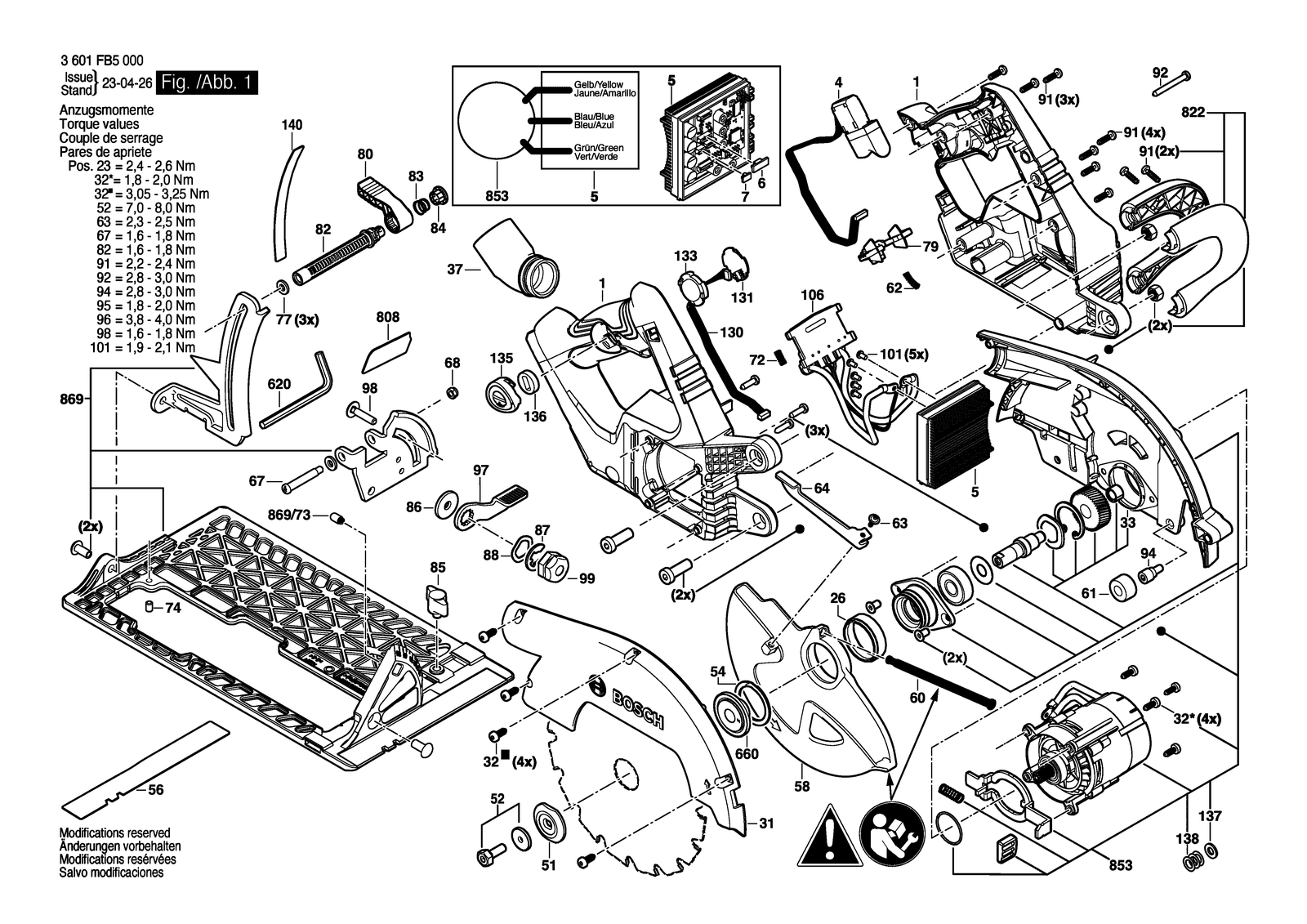

Bosch GKS 18V-68 C cordless circular saw: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 18V-68 C: 63 positions on 1 sheet
Bosch GKS 18V-68 C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065TS | Housing |
| 101 | 160343003T | Screw |
| 106 | 1600A014R6 | Contact Plate |
| 130 | 160440001A | Cable |
| 131 | 1600A016CZ | Electronics Module |
| 133 | 1600A016ML | Cover Panel |
| 135 | 16055002F9 | Cover |
| 136 | 1600A00M52 | Rubber Sponge |
| 137 | 1600A01S1S | Disc 1,4 MM |
| 137 | 2916190013 | Shim ring 1,0 MM |
| 138 | 1600100632 | Shim Thick 0,2 MM |
| 140 | 160111C2S4 | Sticker |
| 26 | 1619P06237 | Flange Bushing |
| 31 | 1600A01286 | Protection cover |
| 32 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 33 | 1600210041 | O-Ring 42,0X1,1 MM |
| 37 | 2605730067 | Suction Socket |
| 4 | 160440001S | Cable |
| 5 | 16072335G6 | Electronic Module |
| 51 | 1600A01D0W | Locking washer |
| 52 | 1619P06232 | Screw |
| 54 | 1619P06238 | Locking washer |
| 56 | 160111C2SV | Scale |
| 58 | 1600A0152P | Lower guard |
| 6 | 1600A025GS | Cover |
| 60 | 1600A00XC9 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 62 | 160461202N | Compression Spring |
| 620 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 63 | 1600A00RD6 | Special Screw |
| 64 | 1600A0192G | Lever |
| 660 | 1619P06230 | Washer |
| 660 | 1619P06341 | Washer |
| 660 | 1619P06343 | Washer |
| 67 | 1619P11929 | Screw |
| 68 | 2609003491 | Hex Nut |
| 7 | 1600A025GR | Cover |
| 72 | 1609280477 | Compression Spring |
| 74 | 1600A01YS8 | Set screw |
| 77 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 79 | 1600A014VC | Safety Switch |
| 80 | 1619P06245 | Lever |
| 808 | 160111A6P7 | Nameplate |
| 808 | 160111A6P9 | Nameplate |
| 808 | 160111A6PB | Nameplate |
| 808 | 160111A6PD | Nameplate |
| 82 | 1600A019NT | Rod |
| 822 | 1607000DL5 | Auxiliary Handle |
| 83 | 1619X01792 | Spring Black |
| 84 | 1619P17212 | Cover |
| 85 | 1603480018 | Wing Screw M6 |
| 853 | 1607000DM4 | Drive Unit |
| 86 | 2609007156 | Washer |
| 869 | 1607000DM5 | Base Plate |
| 869/73 | 1600A01BV3 | Ratchet Cap |
| 87 | 2916080014 | Locking washer DIN 6799-12-FST |
| 88 | 1600A01DD4 | Corrugated Washer |
| 91 | 2603490022 | Screw 4X16 |
| 92 | 2914491413 | Screw |
| 94 | 1619P06246 | Screw |
| 97 | 1600A01B11 | Locking Lever |
| 98 | 1600A0140K | Screw |
| 99 | 1600A019B3 | Hex Nut |
