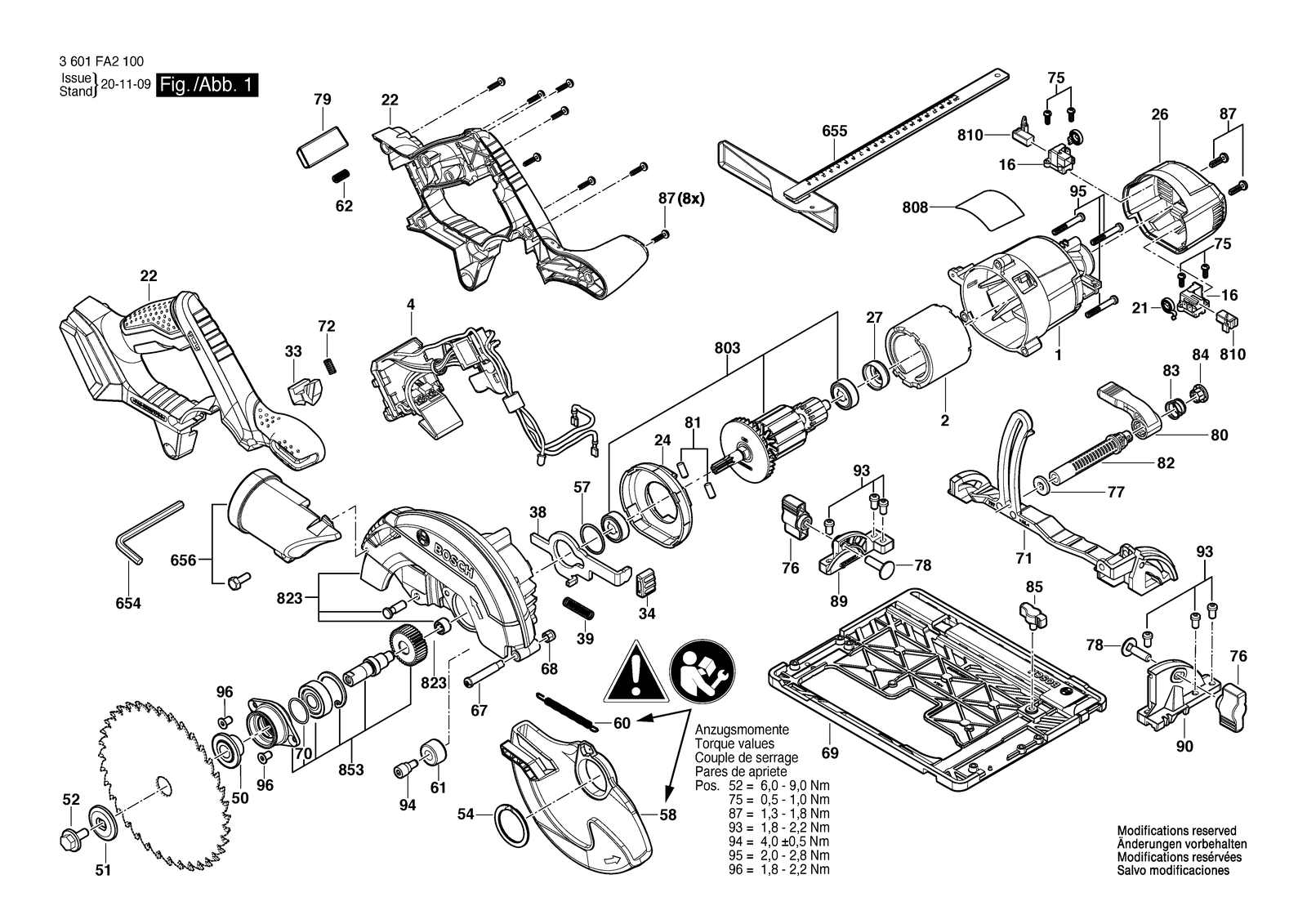

Bosch GKS 18V-57 G cordless circular saw: exploded parts diagram, 2 sheets, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 18V-57 G: 66 positions on 2 sheets
Bosch GKS 18V-57 G parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P11863 | Motor Housing |
| 16 | 2610934990 | Brush Holder |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 21 | 1619P14306 | Spiral Spring |
| 22 | 1619P11879 | Handle |
| 24 | 1619P11877 | Baffle |
| 26 | 1619P11913 | End cap |
| 27 | 1619P01127 | Rubber Ring |
| 33 | 1619P11883 | Key Holder |
| 34 | 1619P06225 | Cap |
| 38 | 1619P11886 | Guide Bracket |
| 39 | 1619P01642 | Compression Spring |
| 4 | 1619P11912 | Electronics Module |
| 50 | 1619P11885 | Inner Disc |
| 51 | 1619P11884 | Locking washer |
| 52 | 1619P06232 | Screw |
| 54 | 1619P06238 | Locking washer |
| 57 | F000640007 | O-Ring |
| 58 | 1619P11900 | Lower guard |
| 60 | 1619P10133 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 62 | 2610935251 | Compression Spring |
| 651 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 651 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 651 | 2607337085 | Battery Pack Bbs Mr-Xl, 18V, 5AH Korea |
| 651/1/22 | 2601115537 | Sticker |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225925 | Charger Aus GAL 1880 CV 230/14,4-18V |
| 653 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 653 | 2607226033 | Fast Charger Rc Gal CV 1880 115/14,4-18V |
| 654 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 655 | 1619X01612 | Mitre Fence |
| 656 | 1619P11691 | Adapter |
| 67 | 1619P11929 | Screw |
| 68 | 2915061003 | Hex Nut DIN 985-M 5-8-A |
| 69 | 1619P11908 | Base Plate |
| 70 | 1600210050 | O-Ring 35,0X1,0 MM |
| 71 | 1600A00XX2 | Bridge |
| 72 | 2604690055 | Compression Spring |
| 75 | 1619P00220 | Torx Oval-Head Screw 3X10 |
| 76 | 1619P01636 | Wing Nut |
| 77 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 78 | 1619P09218 | Round-Head Bolt M6X30 |
| 79 | 1619P11917 | Switch Button |
| 80 | 2610924368 | Lever |
| 803 | 1619P11898 | Armature set |
| 808 | 1619P15136 | Nameplate |
| 808 | 1619P15137 | Nameplate |
| 808 | 1619P31782 | Nameplate |
| 808 | 1619P31783 | Nameplate |
| 81 | 1619P01449 | Rubber Buffer |
| 810 | 2610943623 | Carbon-Brush Set |
| 82 | 1619P07620 | Adjustment rod |
| 823 | 1619P11904 | Upper guard |
| 83 | 1619X01792 | Spring Black |
| 84 | 1619P17212 | Cover |
| 85 | 1619P01618 | Wing Screw Black |
| 853 | 1619P11906 | Bearing Flange |
| 87 | 2603490022 | Screw 4X16 |
| 89 | 1619P11927 | Hinge Bracket |
| 90 | 1619P11926 | Hinge Bracket |
| 93 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 94 | 1619P06246 | Screw |
| 95 | 2610925864 | Screw |
| 96 | 2610924687 | Countersunk-Head Screw |
