Bosch GKS 18V-57-2 GX
Bosch GKS 18V-57-2 GX cordless circular saw: exploded parts diagram, 2 sheets, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

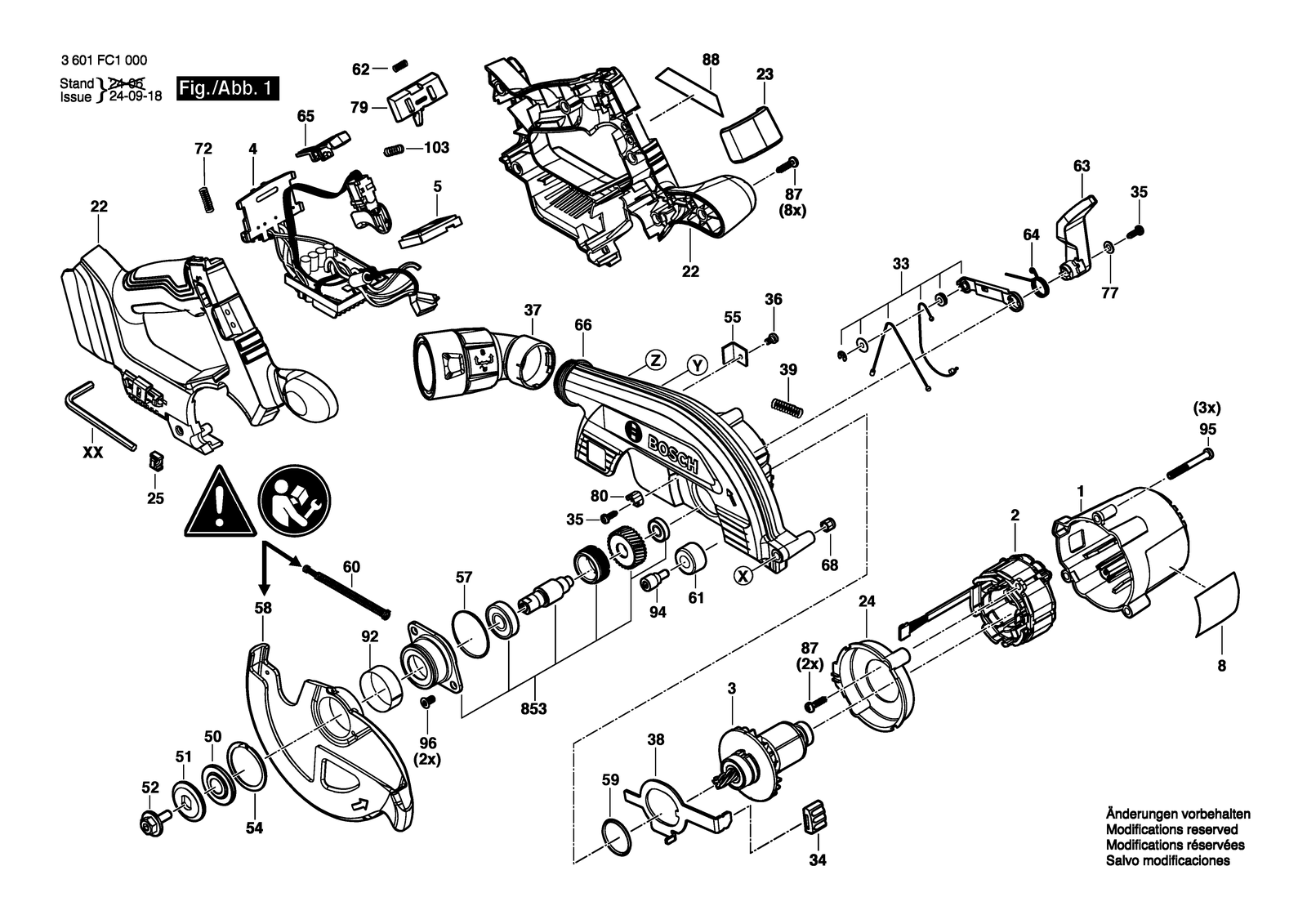

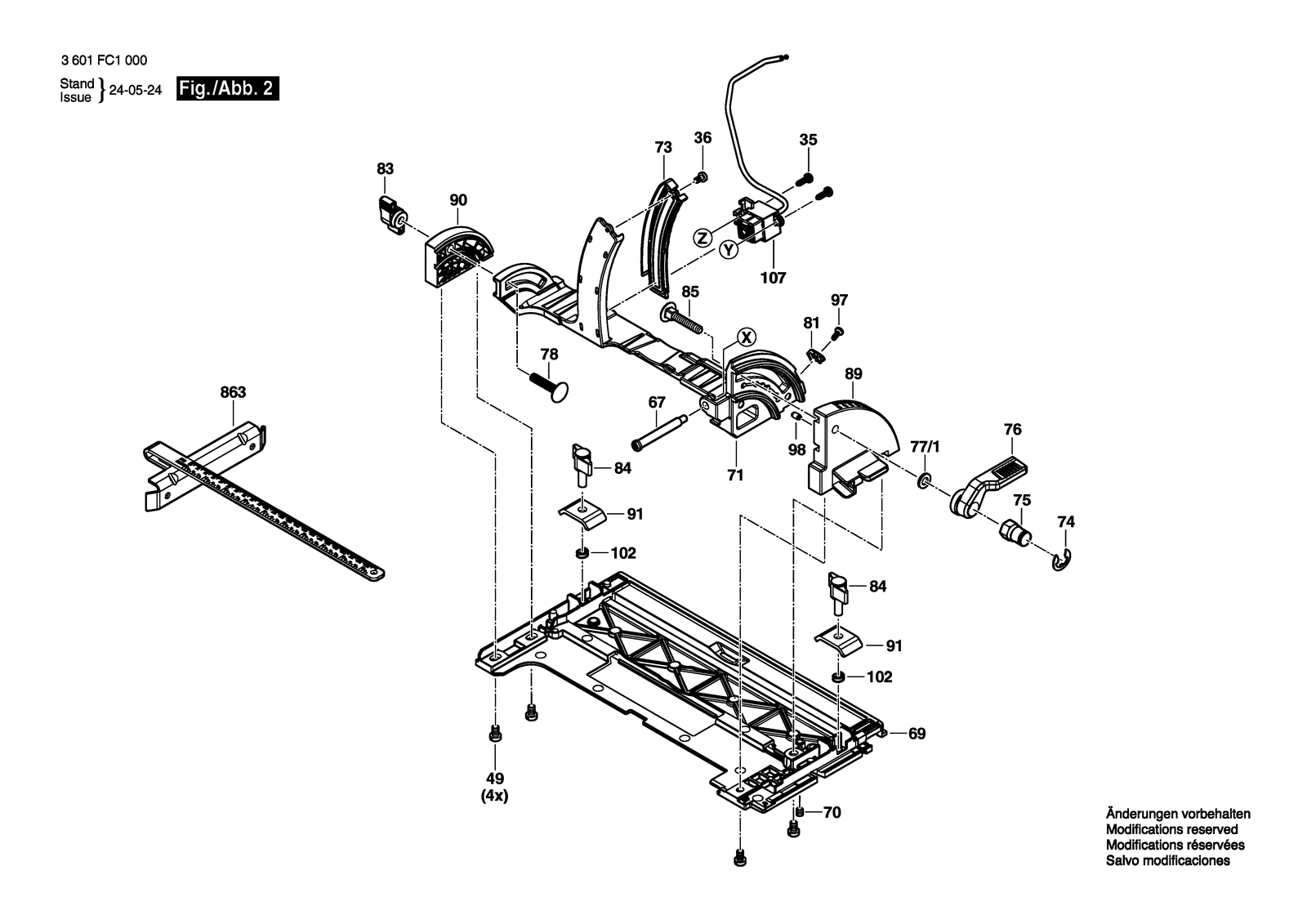

All parts of Bosch GKS 18V-57-2 GX: 70 positions on 2 sheets
Bosch GKS 18V-57-2 GX parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PS0862 | Motor Housing |
| 102 | 1604611025 | Compression Spring |
| 103 | 1619PS0648 | Compression Spring |
| 107 | 1619PS0649 | Locking Element |
| 2 | 1619P16618 | Stator |
| 22 | 1619PS0626 | Handle |
| 23 | 1619P17004 | Cover |
| 24 | 1619P16881 | Baffle |
| 25 | 1619P16931 | Set ring |
| 3 | 1619P16617 | Rotor |
| 33 | 1619PS0627 | Connecting Rod |
| 34 | 1619P06225 | Cap |
| 35 | 1619P01678 | Screw |
| 36 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 37 | 1619PS0628 | Suction Socket |
| 38 | 1619P16906 | Guide Bracket |
| 39 | 1619P01642 | Compression Spring |
| 4 | 1619PS0623 | Electronic Module |
| 49 | 1619X06538 | Socket head cap screw |
| 5 | 1619PS0624 | Electronic Module |
| 50 | 1619P16909 | Inner Disc |
| 51 | 1619P17074 | Locking washer |
| 52 | 1619P06232 | Screw |
| 54 | 1619P06238 | Locking washer |
| 55 | 1619PS0629 | Cap |
| 57 | 1600210050 | O-Ring 35,0X1,0 MM |
| 58 | 1619PS0630 | Lower guard |
| 59 | F000640007 | O-Ring |
| 60 | 1619PS0631 | Extension Spring |
| 61 | 1619P06236 | Bumper Black |
| 62 | 2610935251 | Compression Spring |
| 63 | 1619PS0632 | Lever |
| 64 | 1619PS0633 | Torsion Spring |
| 65 | 1619PS0634 | Locking Slide |
| 66 | 1619PS0635 | Upper guard |
| 67 | 1619P09219 | Shoulder Screw |
| 68 | 2610924684 | Jam Nut |
| 69 | 1619PS0636 | Base Plate |
| 70 | 2610924685 | Adjusting Screw |
| 71 | 1619PS0637 | Bridge |
| 72 | 2604690055 | Compression Spring |
| 73 | 1619PS0638 | Scale |
| 74 | 1619P02796 | Retaining ring |
| 75 | 1619PS0639 | Adjusting Nut |
| 76 | 1619P17173 | Lever |
| 77 | 1619P11626 | Plain Washer |
| 77/1 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 78 | 1619P09218 | Round-Head Bolt M6X30 |
| 79 | 1619P16910 | Switch Button |
| 8 | 1619PS0625 | Nameplate |
| 8 | 1619PS0860 | Nameplate |
| 8 | 1619PS0861 | Nameplate |
| 80 | 1619PS0640 | Cable Clip |
| 81 | 1619PS0641 | Indicator |
| 83 | 1619P06244 | Wing Nut |
| 84 | 2603480003 | Wing Screw M 6X16 MM |
| 85 | 16034300A3 | Screw M6X35 |
| 853 | 1619PS0622 | Bearing Flange |
| 863 | 1619PS0863 | Parallel-Guide |
| 87 | 2603490022 | Screw 4X16 |
| 88 | 1619PS0643 | Label |
| 89 | 1619PS0644 | Hinge Bracket |
| 90 | 1619PS0645 | Hinge Bracket |
| 91 | 1619PS0646 | Connection Plate |
| 92 | 1619PS0647 | Bushing |
| 94 | 1619P06246 | Screw |
| 95 | 2610925864 | Screw |
| 96 | 2610924687 | Countersunk-Head Screw |
| 97 | 1619P11431 | Thread-forming tap. Screw |
| 98 | 1619X08636 | Ratchet Cap |
