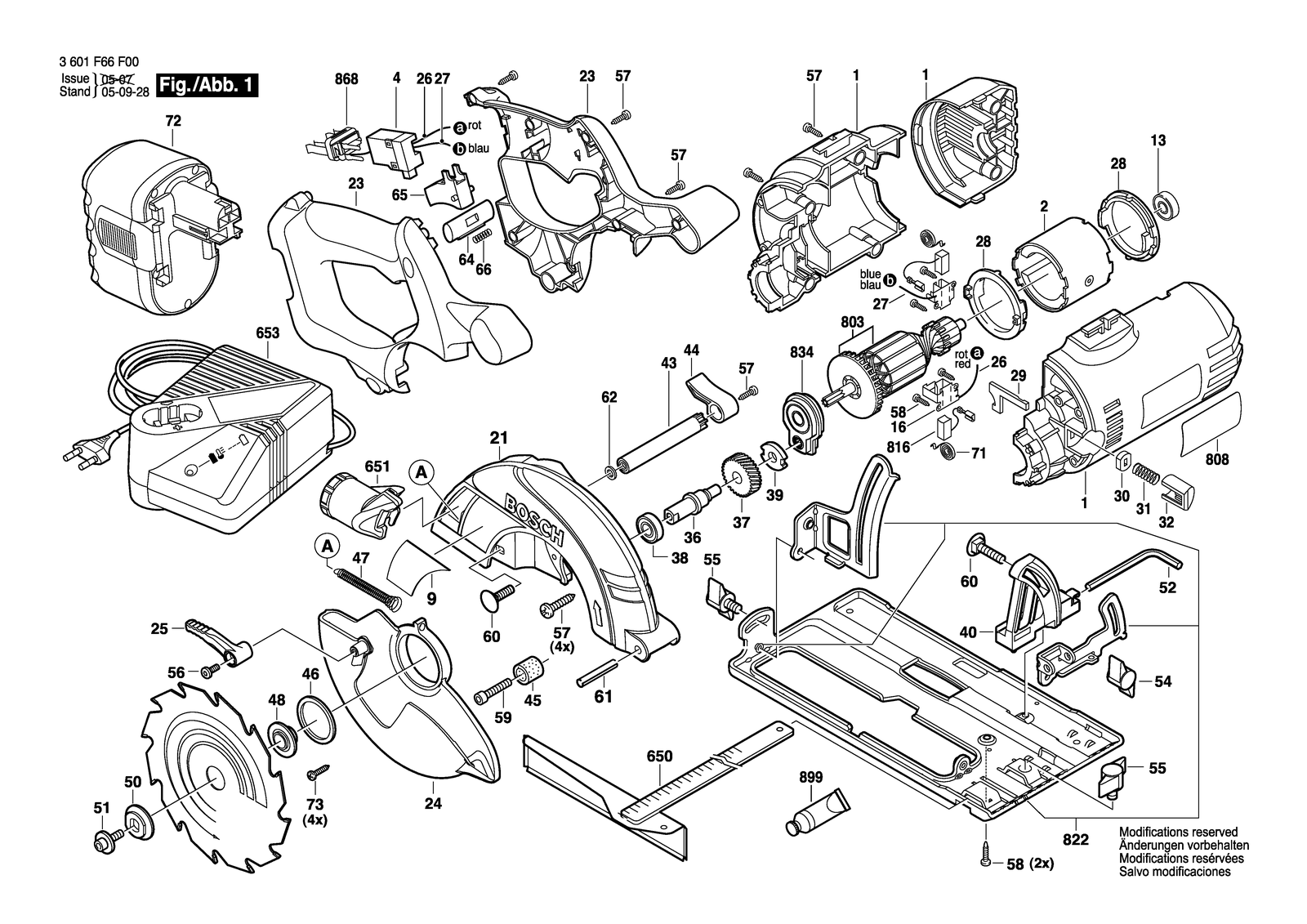

Bosch GKS 18 V cordless circular saw: exploded parts diagram, 1 sheet, 115 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 18 V: 115 positions on 1 sheet
Bosch GKS 18 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108234 | Motor Housing Blue |
| 1 | 1605108234 | Motor Housing Blue |
| 13 | 3130900056 | Groove ball bearing DIN 625-608-2Z-C3 |
| 13 | 3130900056 | Groove ball bearing DIN 625-608-2Z-C3 |
| 16 | 1611323003 | Brush Holder |
| 16 | 1611323003 | Brush Holder |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 21 | 1605510335 | Protective Cover |
| 21 | 1605510335 | Protective Cover |
| 23 | 1605500252 | Handle Blue |
| 23 | 1605500234 | Handle Blue |
| 24 | 1605510337 | Pivoting Blade Guard |
| 24 | 1605510337 | Pivoting Blade Guard |
| 25 | 1602002011 | Lever |
| 25 | 1602002011 | Lever |
| 26 | 1604448018 | Connecting Cable Red L=370 MM |
| 26 | 1604448018 | Connecting Cable Red L=370 MM |
| 27 | 1604448019 | Connecting Cable Blue L=270 MM |
| 27 | 1604448019 | Connecting Cable Blue L=270 MM |
| 28 | 1610290043 | Locating Ring |
| 28 | 1610290043 | Locating Ring |
| 29 | 1601900005 | Safety Catch |
| 29 | 1601900005 | Safety Catch |
| 30 | 1601015033 | Felt Seal |
| 30 | 1601015033 | Felt Seal |
| 31 | 1604610018 | Compression Spring |
| 31 | 1604610018 | Compression Spring |
| 32 | 1603231019 | Push-Button |
| 32 | 1603231019 | Push-Button |
| 36 | 1603124137 | Drive Shaft |
| 36 | 1603124137 | Drive Shaft |
| 37 | 2610910451 | Toothed Gear |
| 37 | 2610910451 | Toothed Gear |
| 38 | 1600905031 | Groove ball bearing 12X28X8 |
| 38 | 1600905031 | Groove ball bearing 12X28X8 |
| 39 | 1600190044 | Screen Disc |
| 39 | 1600190044 | Screen Disc |
| 4 | 2610997469 | On-Off Switch |
| 4 | 2610997469 | On-Off Switch |
| 40 | 1608190027 | Miter Square |
| 40 | 1608190027 | Miter Square |
| 43 | 1600360004 | Spacer Tube |
| 43 | 1600360004 | Spacer Tube |
| 44 | 1602002006 | Tensioning Lever |
| 44 | 1602002006 | Tensioning Lever |
| 45 | 1600305002 | Rubber Buffer |
| 45 | 1600305002 | Rubber Buffer |
| 46 | 1600102024 | Clamp ring |
| 46 | 1600102024 | Clamp ring |
| 47 | 1604650018 | Extension Spring |
| 47 | 1604650018 | Extension Spring |
| 48 | 1605703133 | Clamping-Flange |
| 48 | 1605703133 | Clamping-Flange |
| 50 | 1605703108 | Conical Spring Washer |
| 50 | 1605703108 | Conical Spring Washer |
| 51 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 51 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 52 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 52 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 54 | 1603339006 | Wing Nut M6 |
| 54 | 1603339006 | Wing Nut M6 |
| 55 | 1603480022 | Wing Screw |
| 55 | 1603480022 | Wing Screw |
| 56 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 56 | 2610386516 | Torx Oval-Head Screw M4X12 |
| 57 | 2603490022 | Screw 4X16 |
| 57 | 2603490022 | Screw 4X16 |
| 58 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 58 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 59 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 59 | 1603414010 | Thread-forming tap. Screw M6X25 MM |
| 60 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 60 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 61 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 61 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 62 | 2916011894 | Plain Washer |
| 62 | 2916011894 | Plain Washer |
| 64 | 2610997470 | Switch Button |
| 64 | 2610997470 | Switch Button |
| 65 | 2610997461 | Trigger |
| 65 | 2610997461 | Trigger |
| 650 | 2608005036 | Parallel-Guide |
| 650 | 2608005036 | Parallel-Guide |
| 651 | 1608005008 | Adapter |
| 651 | 1608005008 | Adapter |
| 653 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 653 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 653 | 2607225031 | Fast Charger AUS 240/7,2-24V, 30 Min. |
| 653 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 653 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 66 | 1604611035 | Compression Spring |
| 66 | 1604611035 | Compression Spring |
| 71 | 1619P14306 | Spiral Spring |
| 71 | 1619P14306 | Spiral Spring |
| 72 | 2607335687 | Slide-In Accu Package 18V, 2,6AH, Nimh, Hd |
| 72 | 2607335561 | Battery Pack 24V,2,6AH,NIMH |
| 73 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 73 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 803 | 1607000A60 | Armature With Fan |
| 803 | 1607000731 | Armature With Fan 24V |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 816 | 1617014131 | Carbon-Brush Set |
| 816 | 1617014131 | Carbon-Brush Set |
| 822 | 1607000741 | Base Plate |
| 822 | 1607000741 | Base Plate |
| 834 | 1607000C02 | Bearing Bracket |
| 834 | 1607000C02 | Bearing Bracket |
| 868 | 1607000732 | Contact Strip |
| 868 | 1607000732 | Contact Strip |
| 899 | 1605430003 | Grease Tube 225 Ml |
| 899 | 1605430003 | Grease Tube 225 Ml |
| 9 | 1601118K10 | Manufacturer's nameplate |
| 9 | 1601118K11 | Manufacturer's nameplate |
