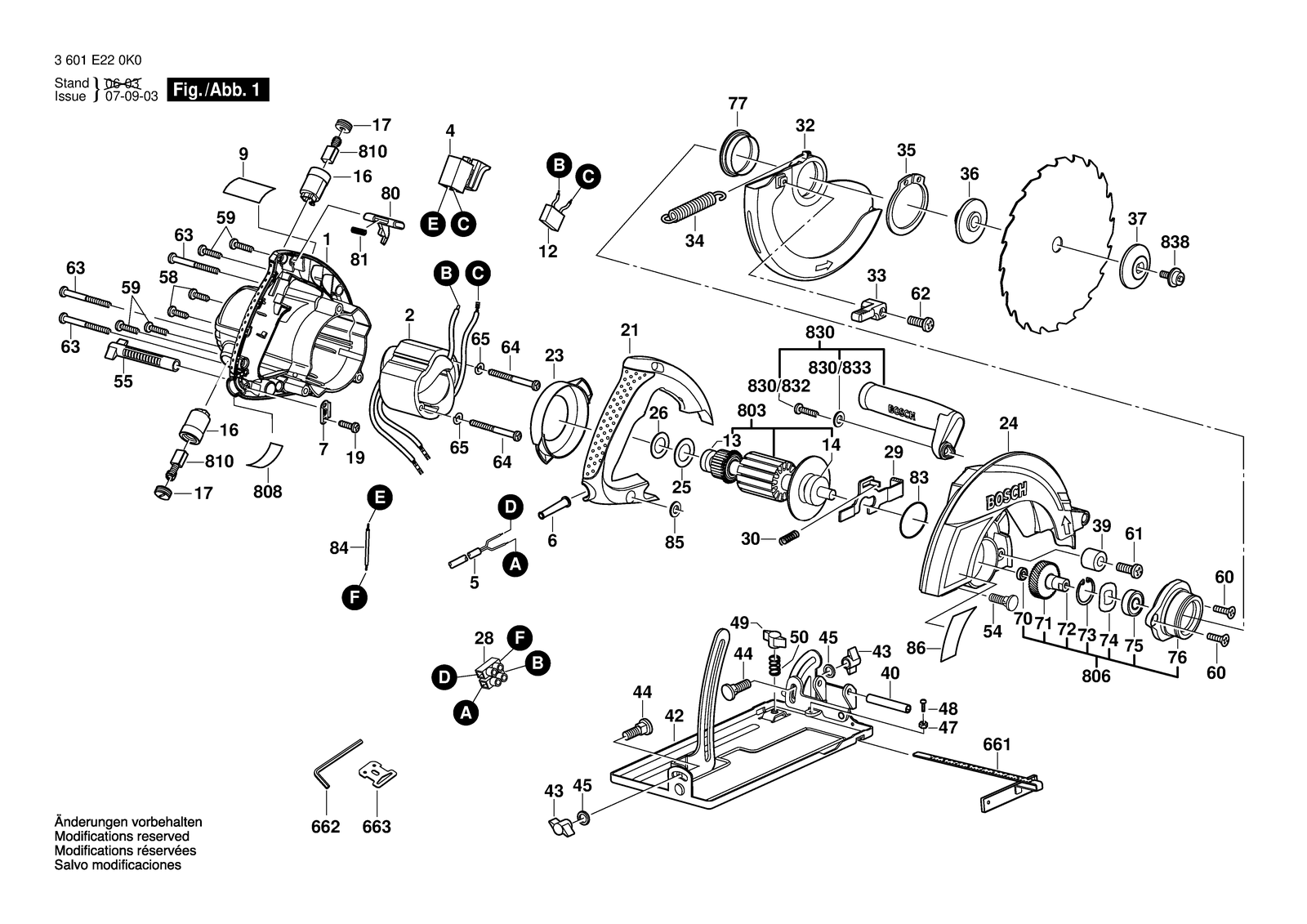

Bosch GKS 165 circular hand saw: exploded parts diagram, 1 sheet, 75 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 165: 75 positions on 1 sheet
Bosch GKS 165 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P01130 | Motor Housing |
| 12 | 1619P01190 | Suppression Filter |
| 13 | 1619P01192 | Groove ball bearing |
| 14 | 1619P01193 | Groove ball bearing |
| 16 | 1619P01194 | Brush Holder |
| 17 | 1619P01195 | Screw Plug |
| 19 | 1619P01196 | Tapping Screw |
| 2 | 1619P01131 | Field 220-240V |
| 21 | 1619P01197 | Handle |
| 23 | 1619P01198 | Fan Cover |
| 24 | 1619P01201 | Upper Housing |
| 25 | 1619P01203 | Washer |
| 26 | 1619P01204 | Rubber Spring |
| 28 | 1619P01205 | Connecting terminal |
| 29 | 1619P01206 | Lock Bolt |
| 30 | 1619P01207 | Spring |
| 32 | 1619P01191 | Protective Cover |
| 33 | 1619P01212 | Holding Handle |
| 34 | 1619P01213 | Spring |
| 35 | 1619P01214 | Retaining ring |
| 36 | 1619P01216 | Guide Bushing 20 MM |
| 37 | 1619P01220 | Flange Plate |
| 39 | 1619P01230 | End stop |
| 4 | 1619P01161 | On-Off Switch |
| 40 | 1619P01231 | Spring Pin |
| 42 | 1619P01227 | Base Plate |
| 43 | 1619P01238 | Wing Nut |
| 44 | 1619P01239 | Trunnion |
| 45 | 1619P01240 | Washer |
| 47 | 1619P01241 | Nut |
| 48 | 1619P01242 | Trunnion |
| 49 | 1619P01243 | Spring |
| 5 | 1619P01164 | Power supply cord |
| 5 | 1619P01171 | Power supply cord |
| 50 | 1619P01244 | Spring |
| 54 | 1619P01245 | Trunnion |
| 55 | 1619P01246 | Locking Lever |
| 58 | 1619P01247 | Hex Socket Head Cap Screw |
| 59 | 1619P01248 | Tapping Screw |
| 6 | 1619P01173 | Grommet |
| 60 | 1619P01249 | Tapping Screw |
| 61 | 1619P01250 | Tapping Screw |
| 62 | 1619P01251 | Tapping Screw |
| 63 | 1619P01252 | Tapping Screw |
| 64 | 1619P01253 | Tapping Screw |
| 65 | 1619P01254 | Spring Washer |
| 661 | 1619P01070 | Parallel-Guide |
| 662 | 1619P01076 | Protective Cover |
| 663 | 1619P01077 | Cap-Handle |
| 7 | 1619P01183 | Claw Clip |
| 70 | 1619P01255 | Bearing |
| 71 | 1619P01256 | Gear |
| 72 | 1619P01257 | Spindle |
| 73 | 1619P01258 | Retaining ring |
| 74 | 1619P01259 | Corrugated Washer |
| 75 | 1619P01260 | Bearing |
| 76 | 1619P01261 | Gear Cover |
| 77 | 1619P01262 | Lining |
| 80 | 1619P01263 | Change-Over Switch |
| 80 | 1619P01264 | Change-Over Switch |
| 803 | 1619P01310 | Armature With Fan 220-240V |
| 806 | 1619P01316 | Set Of Gears |
| 808 | 1619P01615 | Nameplate |
| 808 | 1619P01616 | Nameplate |
| 81 | 1619P01265 | Spring |
| 810 | 1619P01317 | Carbon-Brush Set |
| 83 | 1619P01266 | O-Ring |
| 830 | 1619P01072 | Auxiliary Handle |
| 830/832 | 1619P01323 | Screw |
| 830/833 | 1619P01324 | Washer |
| 838 | 1603414007 | Hex Socket Head Cap Screw M6X14 MM |
| 84 | 1619P01267 | Wire |
| 85 | 1619P01268 | Plain Washer |
| 86 | 1619P01102 | Manufacturer's nameplate |
| 9 | 1619P01100 | Manufacturer's nameplate |
