Bosch GKS 12 V

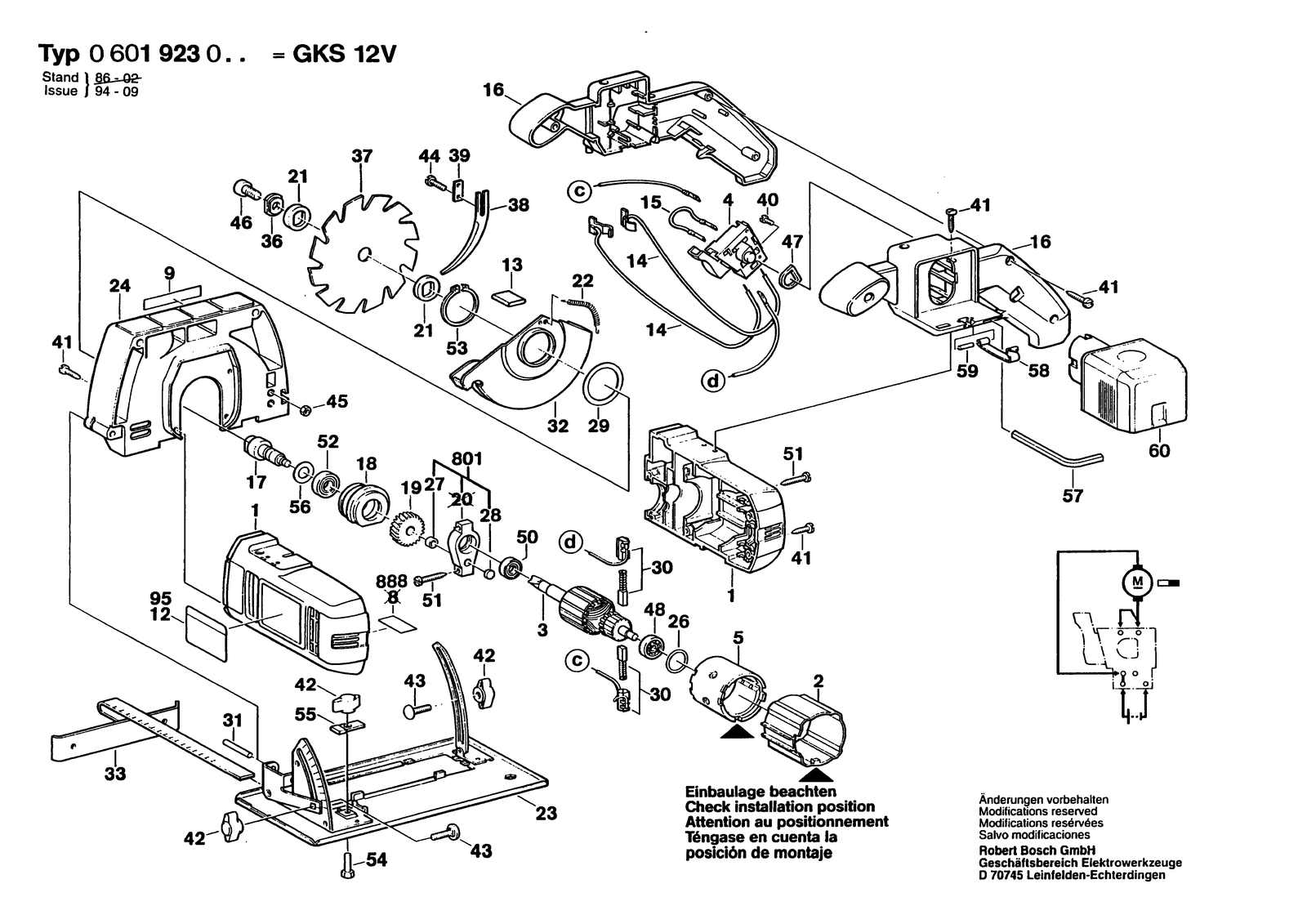

Bosch GKS 12 V circular hand saw: exploded parts diagram, 1 sheet, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKS 12 V: 52 positions on 1 sheet
Bosch GKS 12 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108060 | Motor Housing Blue |
| 12 | 3601119015 | Sticker |
| 13 | 1600707002 | Protective Sheath |
| 14 | 3604431011 | Cable |
| 15 | 3604431010 | Connecting Cable |
| 16 | 3605132015 | Handle Blue |
| 17 | 1603124103 | Drive Shaft M8, Ø16 MM |
| 18 | 1605820222 | Bearing Flange |
| 19 | 1606320075 | Cylindrical Gear Z=25 |
| 2 | 3600499005 | Reduction Sleeve |
| 21 | 1600144000 | Plain Washer Ø16XØ26X5 MM |
| 22 | 1604650010 | Extension Spring |
| 23 | 3608000000 | Base Plate 130X260X2 MM |
| 24 | 1605510121 | Protective Cover |
| 26 | 1900210119 | O-Ring 20X2,5 MM |
| 27 | 1900301007 | Sintered-Metal Bushing J6G7X10R6X6DIN1850 |
| 28 | 1600005001 | Lubricating Felt Ø10X3 MM |
| 29 | 1600102677 | Shim washer Thick 0,2 MM |
| 3 | 3604010000 | Armature 12V |
| 30 | 3604336000 | Brush Holder |
| 31 | 2917780157 | Slotted Spring Pin 6X36 DIN 7346 |
| 32 | 1605510122 | Pivoting Blade Guard |
| 33 | 2601336000 | End stop |
| 36 | 1600290007 | Intermediate Ring |
| 37 | 3608640000 | Circular Saw Blade |
| 38 | 1600025009 | Riving Knife |
| 39 | 1601034035 | Fixing plate |
| 4 | 2607200147 | On-Off Switch |
| 40 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 41 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 42 | 1603339006 | Wing Nut M6 |
| 43 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 44 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 45 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 46 | 2910141238 | Hex Socket Head Cap Screw DIN 912-M8X16-8.8 |
| 47 | 1600206023 | Seal Ring |
| 48 | 1900905018 | Ball Bearing 7X22X7 |
| 5 | 1615100007 | Pole housing 24V |
| 50 | 1900905017 | Groove ball bearing 9X24X7 |
| 51 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 52 | 3600905038 | Groove ball bearing |
| 53 | 2916650037 | Spring retaining ring 36X1,75 DIN 471 |
| 54 | 2911061197 | Hex Screw DIN 933-M 6X16-8.8 |
| 55 | 2601331005 | Connecting terminal |
| 56 | 2916130004 | Sealing disk 12X25,5X1,8 |
| 57 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 58 | 3604680001 | Holding Spring |
| 59 | 1903201044 | Needle Roller A 3X15,8G2DIN5402 |
| 60 | 2607335010 | Accumulator package 12V, 1,2AH, Nicd |
| 8 | 3601106007 | Nameplate |
| 801 | 1605807012 | Bearing Bracket |
| 9 | 1601110481 | Manufacturer's nameplate Shadow Side |
