Bosch GKM 18 V-LI circular saw: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKM 18 V-LI: 51 positions on 1 sheet

Bosch GKM 18 V-LI parts list (1 sheet)

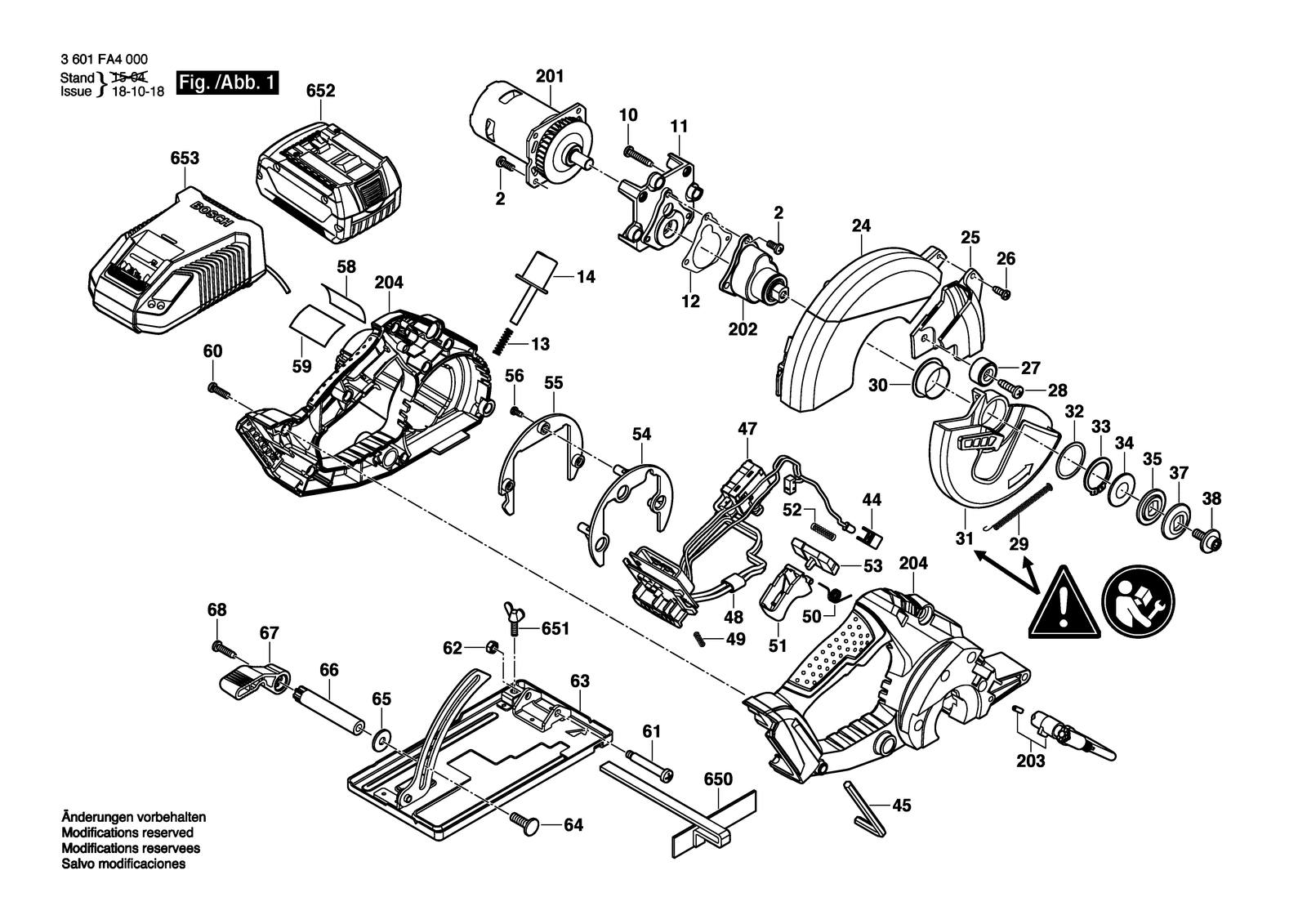

Bosch GKM 18 V-LI parts diagram, sheet 1
No.Part numberPart name
102610034144Screw
112610033566Bearing Housing
122610034143Gasket
132610034157Compression Spring
142610034095Knob
22610034094Screw
2012610034087DC motor
2022610034090Gear
2032610034096Assembly Hook
2042610033552Housing Assembly
242610033557Upper guard
252610033558Window
262610034145Screw
272610033564Bumper
282610034140Screw
292610031712Extension Spring
302610033580Bushing
312610033559Flap Guard
322610034151Plain Washer
332610034153Retaining ring
342610033579Seal
352610033571Intermediate Flange
372610033572Washer
382610033581Locking Bolt
442610034142Lens
452610034161Hexagon Socket Wrench
472610029995Electronic Assembly
482610035267Ferrite
492610013564Compression Spring
502610034103Torsion Spring
512610033560Trigger
522610034156Compression Spring
532610033561Locking Lever
542610033576Baffle
552610033577Baffle
562610034158Screw
581619PB1049Nameplate
592610035071Manufacturer's nameplate
602610034146Screw
612610034148Locking Bolt
622610034147Hex Nut
632610033555Base Plate
642610034141Locking Bolt
652610034150Washer
6502610955166Edge Guide
6512610917057Wing Screw
6521607A350M0Battery Pack GBA 18V 4.0AH
6532607225321Charger EU 230/14,4-18V, 30 40 S
662610033578Fastening Rod
672610033563Adjusting Lever
682610034159Screw
