Bosch GKH 18V-50

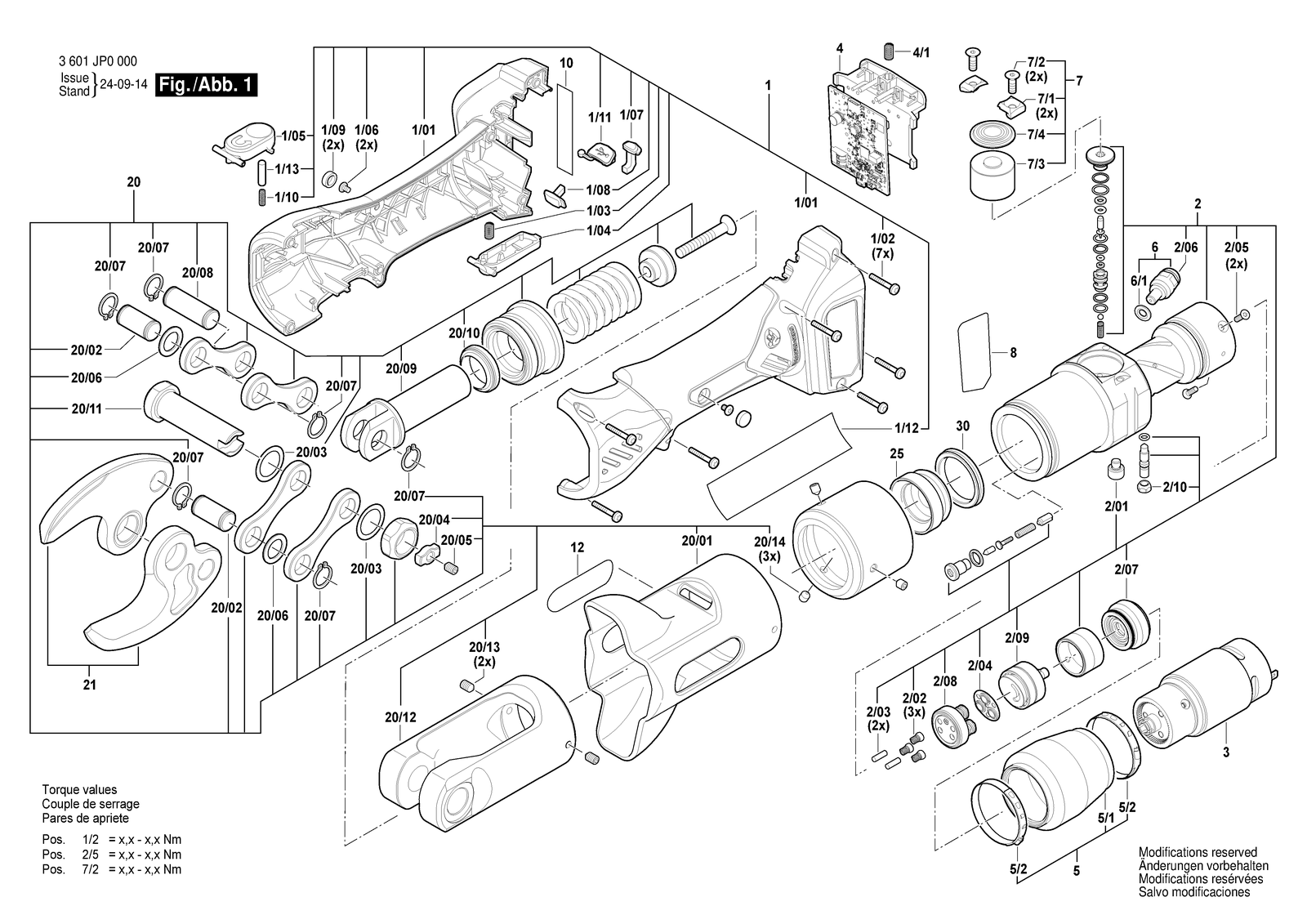

Bosch GKH 18V-50 el. hydr. cable cutter: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKH 18V-50: 62 positions on 1 sheet
Bosch GKH 18V-50 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1607000FH4 | Motor Housing |
| 1/01 | 1607000G0A | Housing |
| 1/02 | 1607000G0B | Screw |
| 1/03 | 1607000G0C | Compression Spring |
| 1/04 | 1607000G0D | Push-Button |
| 1/05 | 1607000G0E | Push-Button |
| 1/06 | 1607000G0F | Socket head cap screw |
| 1/07 | 1607000G0G | Lens |
| 1/08 | 1607000G0H | Lens |
| 1/09 | 1607000FV3 | Cover |
| 1/10 | 1607000G0P | Compression Spring |
| 1/11 | 1607000FM4 | Cap |
| 1/12 | 1607000G0N | Insulating Foil |
| 1/13 | 1607000G0M | Needle Roller |
| 10 | 1607000FK1 | Manufacturer's nameplate |
| 12 | 1607000FK9 | Sticker |
| 2 | 1607000FR7 | Pump Housing |
| 2/01 | 1607000G09 | Screw Plug |
| 2/02 | 1607000FZ3 | Non-Return Valve |
| 2/03 | 1607000FZ4 | Needle Roller |
| 2/04 | 1607000FZ5 | Plunger plate |
| 2/05 | 1607000G03 | Screw |
| 2/06 | 1607000FZ7 | Pressure Sensor |
| 2/07 | 1607000G05 | Flange nut |
| 2/08 | 1607000G06 | Cylinder Plate |
| 2/09 | 1607000G00 | Pump Shaft |
| 2/10 | 1607000G01 | Nut |
| 20 | 1607000FL4 | Scissors |
| 20/01 | 1607000FX3 | Protective Sleeve |
| 20/02 | 1607000FX4 | Fulcrum Pin |
| 20/03 | 1607000FX5 | Shim ring |
| 20/04 | 1607000FX6 | Segment |
| 20/05 | 1607000FX7 | Set screw |
| 20/06 | 1607000FX8 | Shim ring |
| 20/07 | 1607000FX9 | Spring retaining ring |
| 20/08 | 1607000FY0 | Fulcrum Pin |
| 20/09 | 1607000FY1 | Connecting Rod |
| 20/10 | 1607000FY2 | Scraper |
| 20/11 | 1607000FY3 | Axle Bolt |
| 20/12 | 1607000FY4 | Crown Piece |
| 20/13 | 1607000FY5 | Set screw |
| 20/14 | 1607000FY6 | Set screw |
| 21 | 1607000FL3 | Blade |
| 25 | 1607000FL5 | Piston |
| 3 | 1607000FH6 | Motor |
| 30 | 1607000FJ9 | Piston Seal |
| 4 | 1600A036FM | Electronic Module |
| 4/1 | 1607000G0J | Compression Spring |
| 5 | 1607000FH8 | Tank |
| 5/1 | 1607000G07 | Tank |
| 5/2 | 1607000G08 | Clip |
| 6 | 1607000FH9 | Pressure Sensor |
| 6/1 | 1607000FZ6 | Bonded Seal Ring |
| 7 | 1607000FJ0 | Tractive Electromagnet |
| 7/1 | 1607000FZ8 | Clamp |
| 7/2 | 1607000FZ9 | Countersunk-Head Screw |
| 7/3 | 1607000G02 | Tractive Electromagnet |
| 7/4 | 1607000G04 | Membrane |
| 8 | 1607000FG2 | Nameplate |
| 8 | 1607000FG3 | Nameplate |
| 8 | 1607000FG4 | Nameplate |
| 8 | 1607000FG5 | Nameplate |
