Bosch GKF 600
Bosch GKF 600 router: exploded parts diagram, 3 sheets, 83 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

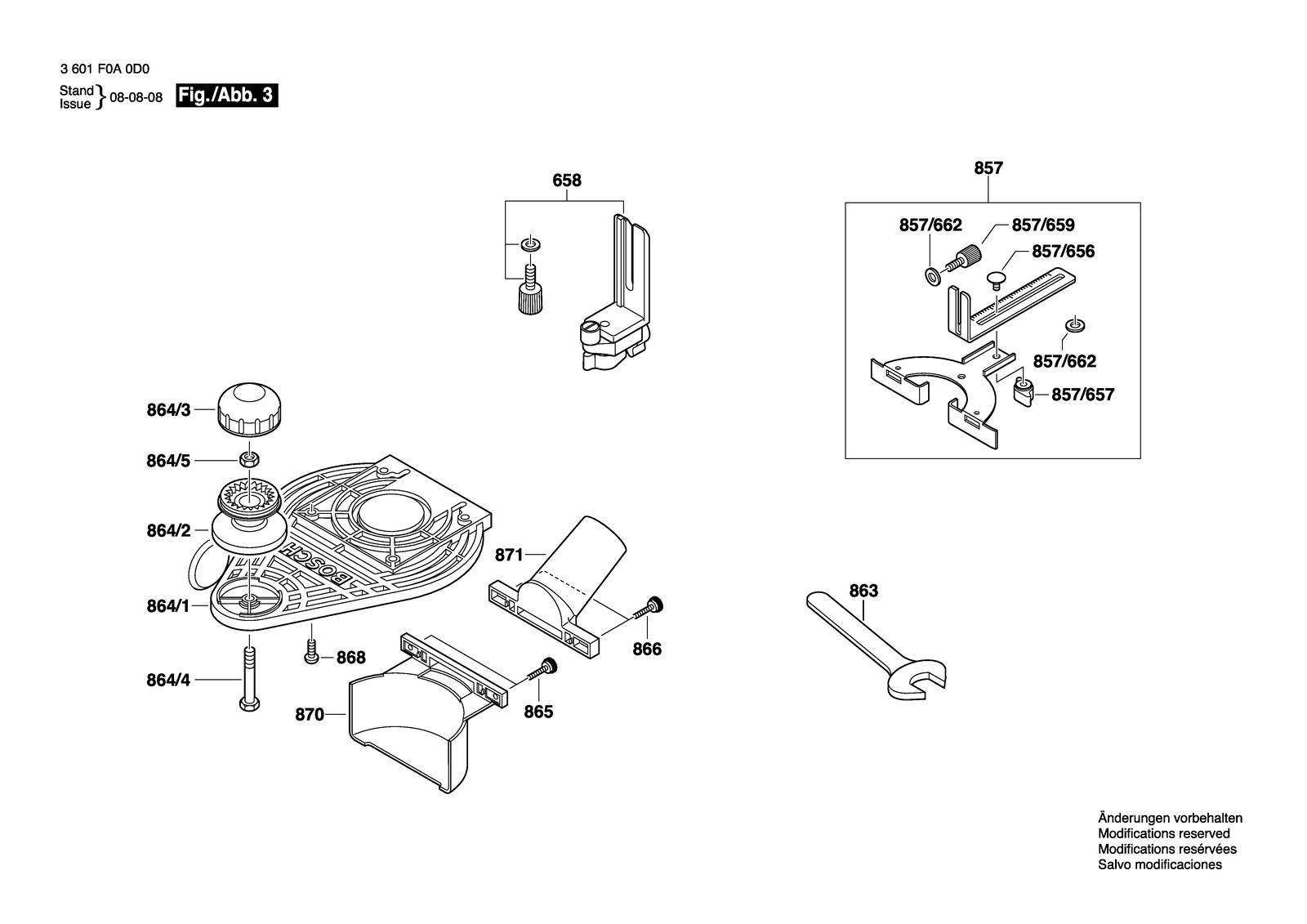

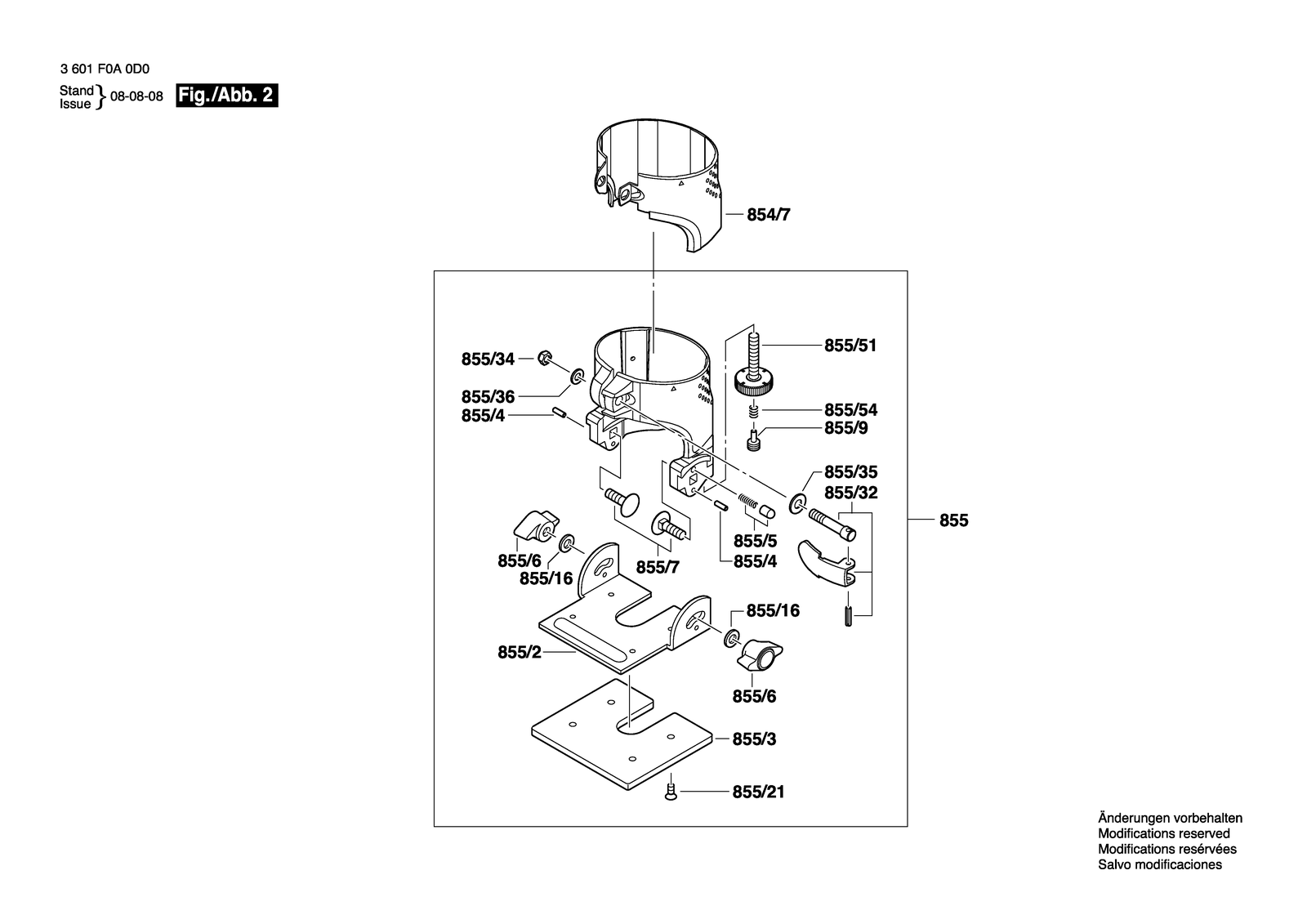

All parts of Bosch GKF 600: 83 positions on 3 sheets
Bosch GKF 600 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610035222 | Housing |
| 11 | 2609131380 | Nameplate |
| 12 | 1607233189 | Regulator 120V |
| 13 | 2609110435 | Groove ball bearing |
| 14 | 2609110436 | Groove ball bearing |
| 15 | 2609110253 | Self-locking nut |
| 16 | 2609110217 | Brush Holder |
| 17 | 2609100203 | Brush-Cover |
| 18 | 2609110294 | Spring Washer |
| 19 | 2910611093 | Tapping Screw |
| 20 | 2609110490 | Tapping Screw |
| 23 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 24 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 3/5 | 2609100246 | Fan |
| 32 | 2609199041 | Clamping Lever |
| 34 | 2609110289 | Hex Nut |
| 35 | 2609110282 | Conical Spring Washer |
| 36 | 2609110290 | Washer |
| 37 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 4 | 2609120274 | Switch |
| 40 | 2609100247 | Air-Deflector Ring |
| 41 | 2609120153 | Connecting terminal |
| 42 | 2609110297 | Contact Strap |
| 43 | 2609120173 | End cap |
| 5 | 2609120342 | Power supply cord Il/br 2,65M 2 X 1,00MM H05 Vv-F |
| 5 | 2609120344 | Power supply cord Usa/can/sma 2,65M 2 X 10,82MM SJ 18/2 |
| 51 | 2609110241 | Screw |
| 52 | 2609110245 | Pressure Spindle |
| 53 | 2609110246 | Spring Plate |
| 54 | 2609110306 | Compression Spring DIN 17223, 2076 Grade B |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 658 | 2610008117 | Edge Guide |
| 7 | 2601035001 | Cable Clip |
| 70 | 2609110307 | Base Plate |
| 71 | 2609110283 | Bolt |
| 802 | 2610008119 | Stator 120V |
| 803 | 2610008120 | Armature 120V |
| 808 | 2609131778 | Nameplate |
| 808 | 2609131782 | Type Label |
| 810 | 2610008121 | Carbon-Brush Set |
| 820 | 2609199109 | Housing Cover Blue |
| 830 | 2610010072 | Contour sleeve |
| 850 | 2610008123 | Bearing Flange |
| 854/7 | 2609100386 | Cover |
| 855 | 2610008115 | Base |
| 855/16 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 855/2 | 2609110372 | Base Plate |
| 855/21 | 2609110347 | Screw |
| 855/3 | 2609100381 | Base |
| 855/32 | 2609199041 | Clamping Lever |
| 855/34 | 2609110289 | Hex Nut |
| 855/35 | 2609110282 | Conical Spring Washer |
| 855/36 | 2609110290 | Washer |
| 855/4 | 2609110455 | Pin |
| 855/5 | 2600590006 | Ratchet Cap |
| 855/51 | 2609110241 | Screw |
| 855/54 | 2609110306 | Compression Spring DIN 17223, 2076 Grade B |
| 855/6 | 2609199008 | Wing Nut |
| 855/7 | 2910281201 | Round-Head Bolt DIN 603-M6X20 |
| 855/9 | 2609110483 | Pin |
| 857 | 2610008113 | Edge Guide |
| 857/656 | 2609110364 | Screw |
| 857/657 | 2609199008 | Wing Nut |
| 857/659 | 2609100568 | Knurled Thumbscrew |
| 857/662 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 863 | 2609110438 | Single-Head Eng. Wrench SW 17 |
| 864/1 | 2609100383 | Base Plate |
| 864/2 | 2609100423 | Handle |
| 864/3 | 2609100140 | Cap-Handle |
| 864/4 | 2609110607 | Screw |
| 864/5 | 2609110548 | Nut |
| 865 | 2609199114 | Knurled Thumbscrew |
| 866 | 2609199100 | Screw |
| 868 | 2609110553 | Screw |
| 870 | 2609100384 | Dust Chamber |
| 871 | 2609100385 | Suction Socket |
| 880 | 2610008124 | Base Plate |
| 9 | 2609131379 | Manufacturer's nameplate |
| 90 | 2609110741 | Plate |
| 91 | 2609100248 | Button |
| 92 | 2609110255 | Compression Spring |
| 93 | 2609110480 | Cover Plate |
| 94 | 2609110367 | Screw M 3X6 |
