Bosch GKF 550
Bosch GKF 550 router: exploded parts diagram, 3 sheets, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKF 550: 78 positions on 3 sheets
Bosch GKF 550 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB2368 | Motor Housing |
| 12 | 1619PB3048 | Suppression Capacitor |
| 13 | 1619PB3049 | Groove ball bearing |
| 14 | 1619PB3050 | Groove ball bearing |
| 19 | 1619PB3052 | Screw |
| 2 | 1619PB3028 | Field assembly 220~240V Ø55*50 |
| 2 | 1619PB3029 | Field assembly 115~127V Ø55*50 |
| 22 | 1619PB3053 | Bearing Sleeve |
| 23 | 1619PB3054 | Backup ring |
| 24 | 1619PB3055 | Spacer Ring |
| 25 | 1619PB3056 | Corrugated Washer |
| 26 | 1619PB3057 | Collet 1/4 INCH 65MN |
| 26 | 1619PB3058 | Collet 6MM 65MN |
| 27 | 1619PB3059 | Union Nut |
| 28 | 1619PB3060 | Clamp Screw |
| 29 | 1619PB2366 | Cover |
| 3 | 1619PB3031 | Armature 220~240V Ø31.7*50 |
| 3 | 1619PB3032 | Armature |
| 3 | 1619PB3148 | Armature 220~240V Ø31.7*50 FOR 1/4" Collect Axis |
| 30 | 1619PB3061 | Terminal Block |
| 31 | 1619PB3062 | Brush-Cover |
| 32 | 1619PB2367 | Motor Housing |
| 33 | 1619PB3063 | Screw |
| 34 | 1619PB3004 | Scale |
| 4 | 1619PB3034 | Switch |
| 5 | 1619PB3035 | Power supply cord |
| 5 | 1619PB3036 | Power supply cord Gb |
| 5 | 1619PB3037 | Power supply cord EU |
| 5 | 1619PB3038 | Power supply cord |
| 6 | 1619PB3045 | Grommet |
| 653 | 1619PB2378 | Guide Piece |
| 654 | 1619PB3022 | End stop |
| 654/1 | 1619PB3064 | Guide Plate |
| 654/10 | 1619PB3072 | Corrugated Washer |
| 654/11 | 1619PB2372 | Wing Screw |
| 654/2 | 1619PB3065 | Guide |
| 654/3 | 1619PB3066 | Screw |
| 654/4 | 1619PB3067 | Toothed lock washer |
| 654/5 | 1619PB3068 | Plate |
| 654/6 | 1619PB2371 | Wing Screw |
| 654/7 | 1619PB3069 | Screw |
| 654/8 | 1619PB3070 | Bushing |
| 654/9 | 1619PB3071 | Plain Washer |
| 655 | 1619PB3021 | Edge Guide |
| 655/1 | 1619PB3073 | Edge Guide |
| 655/10 | 1619PB3072 | Corrugated Washer |
| 655/2 | 1619PB3074 | Guide Bracket |
| 655/3 | 1619PB3075 | Special Screw |
| 655/4 | 1619PB3076 | Plain Washer |
| 655/5 | 1619PB2373 | Wing Screw |
| 655/9 | 1619PB3071 | Plain Washer |

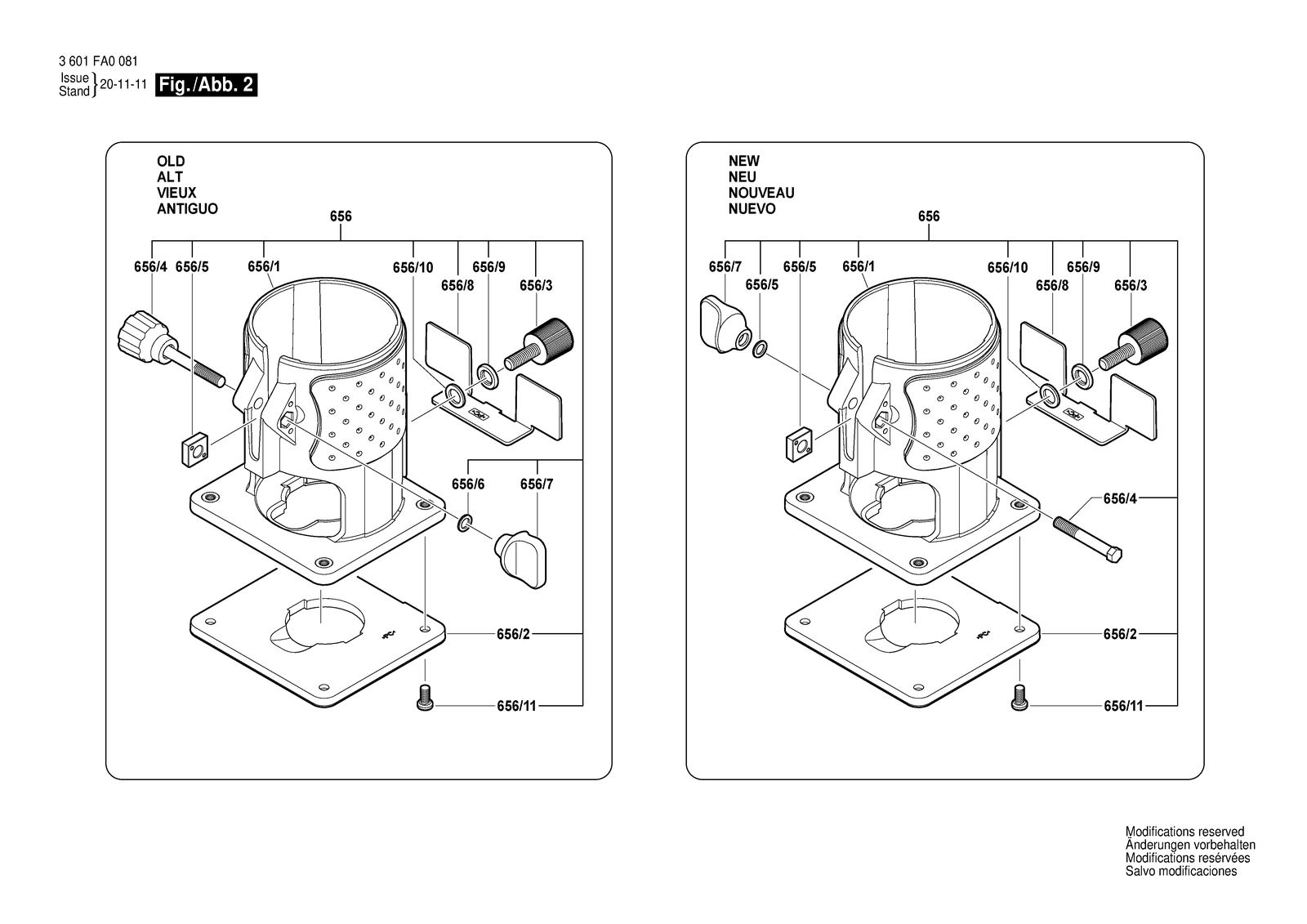

| 656 | 1619PB2369 | Base |
| 656/1 | 1619PB3077 | Base |
| 656/10 | 1619PB3072 | Corrugated Washer |
| 656/11 | 1619PB3081 | Screw |
| 656/2 | 1619PB3078 | Base Plate |
| 656/3 | 1619PB2374 | Knurled Thumbscrew |
| 656/4 | 1619PB2375 | Knob |
| 656/5 | 1619PB3079 | Spacer |
| 656/6 | 1619PB3080 | Plain Washer |
| 656/7 | 1619PB2376 | Knurled Thumbscrew |
| 656/8 | 1619PB3083 | Chip Deflector |
| 656/9 | 1619PB3071 | Plain Washer |
| 657 | 1619PB7222 | Dust Extraction |
| 666 | 1619PC1978 | Base |
| 666/1 | 1619PC1688 | Base |
| 666/4 | 1619PB7225 | Knob |
| 666/5 | 1619PB6976 | Gear |
| 7 | 1619PB3046 | Clip |
| 808 | 1619PB2988 | Nameplate |
| 808 | 1619PB2989 | Nameplate |
| 808 | 1619PB2990 | Nameplate |
| 808 | 1619PB2991 | Nameplate |
| 808 | 1619PB2997 | Nameplate |
| 808 | 1619PB3082 | Nameplate |
| 810 | 1619PB3047 | Carbon-Brush Set |
| 816 | 1619PB3051 | Brush Holder |
| 9 | 1619PB3002 | Manufacturer's nameplate GKF 550 |
