Bosch GKE 18V-40 chain saw: exploded parts diagram, 3 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GKE 18V-40: 46 positions on 3 sheets

Bosch GKE 18V-40 parts list (3 sheets)

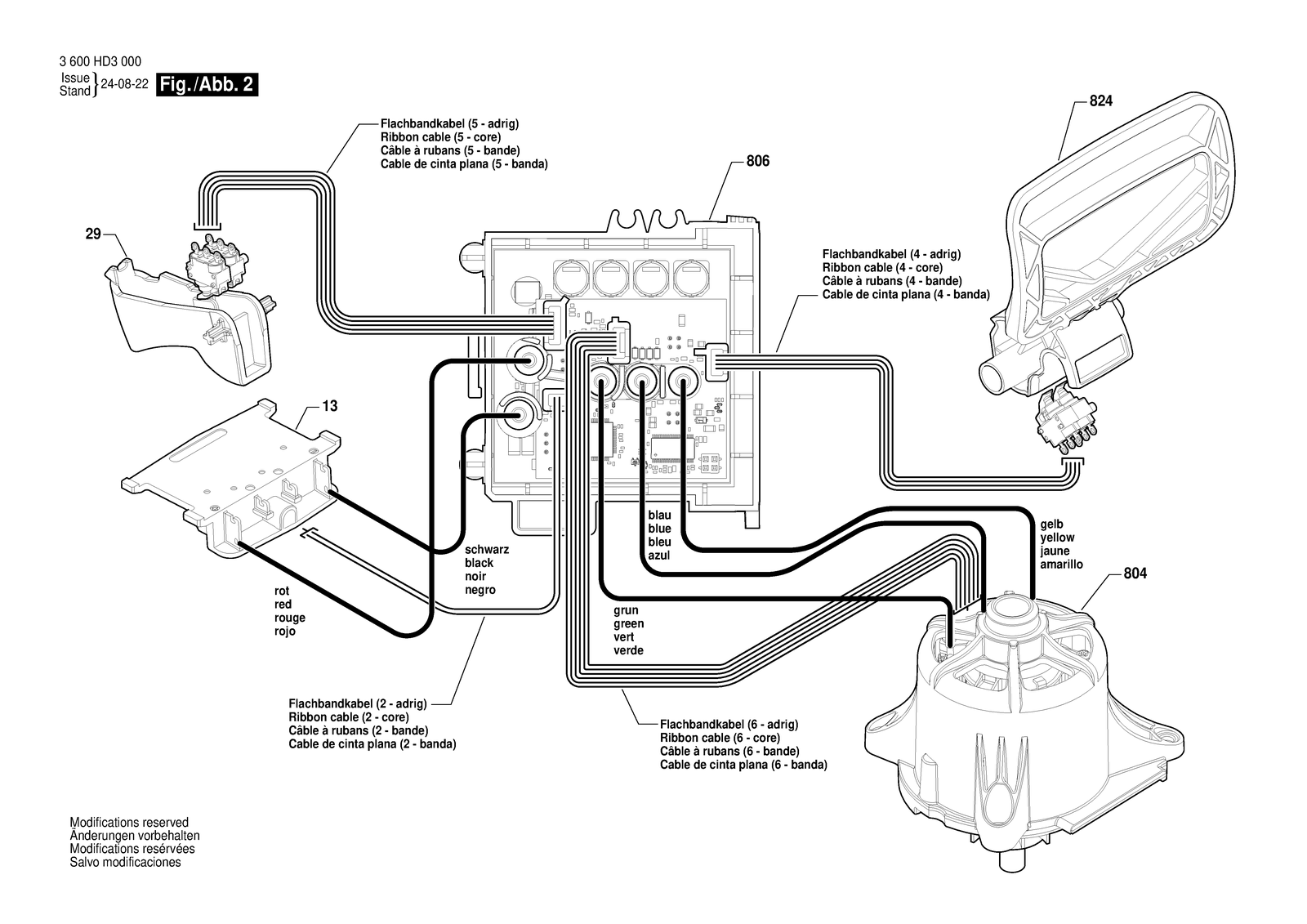

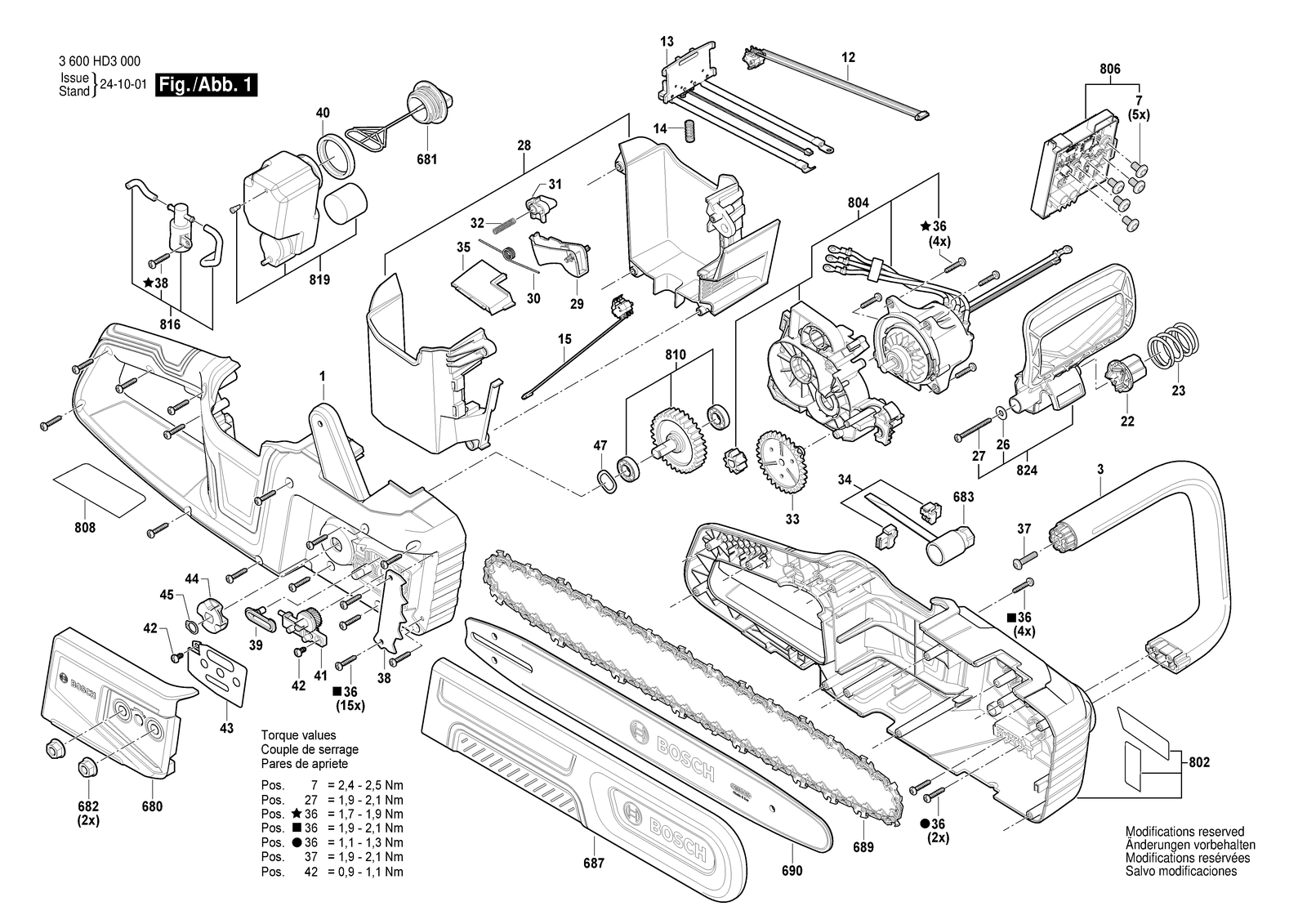

Bosch GKE 18V-40 parts diagram, sheet 1Bosch GKE 18V-40 parts diagram, sheet 2Bosch GKE 18V-40 parts diagram, sheet 3
No.Part numberPart name
121600A020RKCable Wiring Set
131617S020SFContact Plate
141609280477Compression Spring
151600A03286Cable Wiring Set
221600A0263ARatchet
23160461204CSpring
261270020109Plain Washer
272603490027Torx Oval-Head Screw 4X40
281617S020SHBattery Housing
291600A02035Switch Segment
31605132193Handle
301600A0265LSpring
311600A02036Safety Switch
32160461204DCompression Spring
331617S020SJWorm-Gear Pair
341617S020SKHolder
351617S020SLCover
362603490023Torx Oval-Head Screw 4X20
371600A01N9HOval-Head Screw
381600A0203DSpiked bumper
391617S020SMSealing
401600A015DJSealing
411617S020SNTensioning device
42160343001YTorx Oval-Head Screw
431617S020SPCover
441600A0262YSprocket wheel
452916650001Spring retaining ring DIN 471-10X1MM-FST
471617S020SRWasher
6532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6801617S020SSChain Cover
6811600A027C7RSV Cap
6822609001307Hex Nut
6831617S020STOffset Screwdriver
6871600A020C8Chain Guard
6892609007365Saw Chain AKE 40
6901617S020SUGuide Rail
7160343003TScrew
8021617S020S9Housing
8041617S020SABrushless DC motor
8061617S020SBElectronics Module
8081617S020SYNameplate
8101617S020SCGear
8161600A02PT6Pump
8191600A02NW1Tank
8241617S020SDProtective Shield
911617S021ZWBattery Pack
