Bosch GIS 1000 C

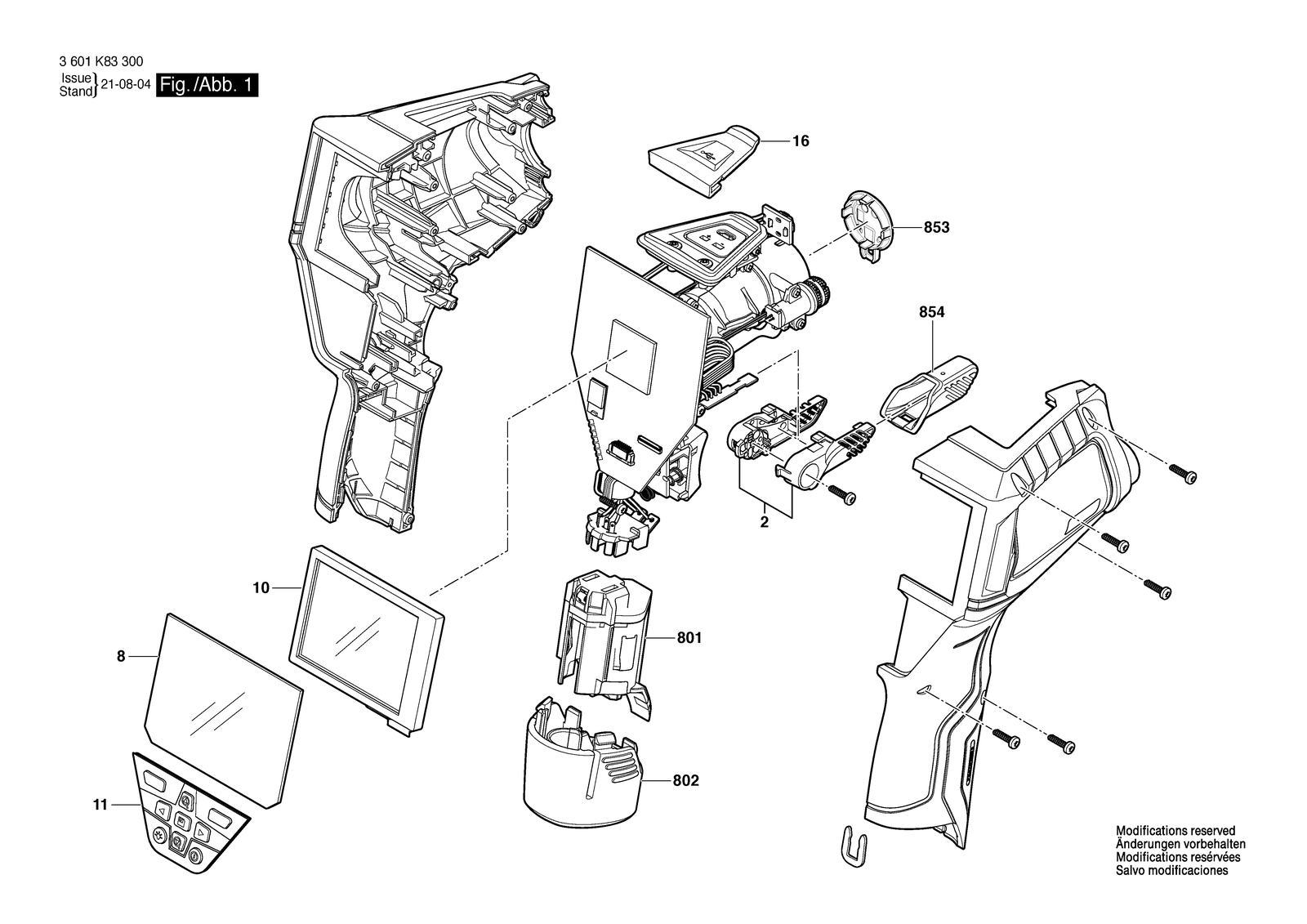

Bosch GIS 1000 C pyrometer: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GIS 1000 C: 9 positions on 1 sheet
Bosch GIS 1000 C parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2609125204 | Display |
| 11 | 2609199798 | Keyboard |
| 16 | 2609170248 | Cover |
| 2 | 2609101465 | Housing |
| 8 | 2609101452 | Protective Glass |
| 801 | 2609199766 | Battery Holder |
| 802 | 2609199769 | Battery Cover |
| 853 | 2609101454 | Cover |
| 854 | 2609101475 | Cover |
